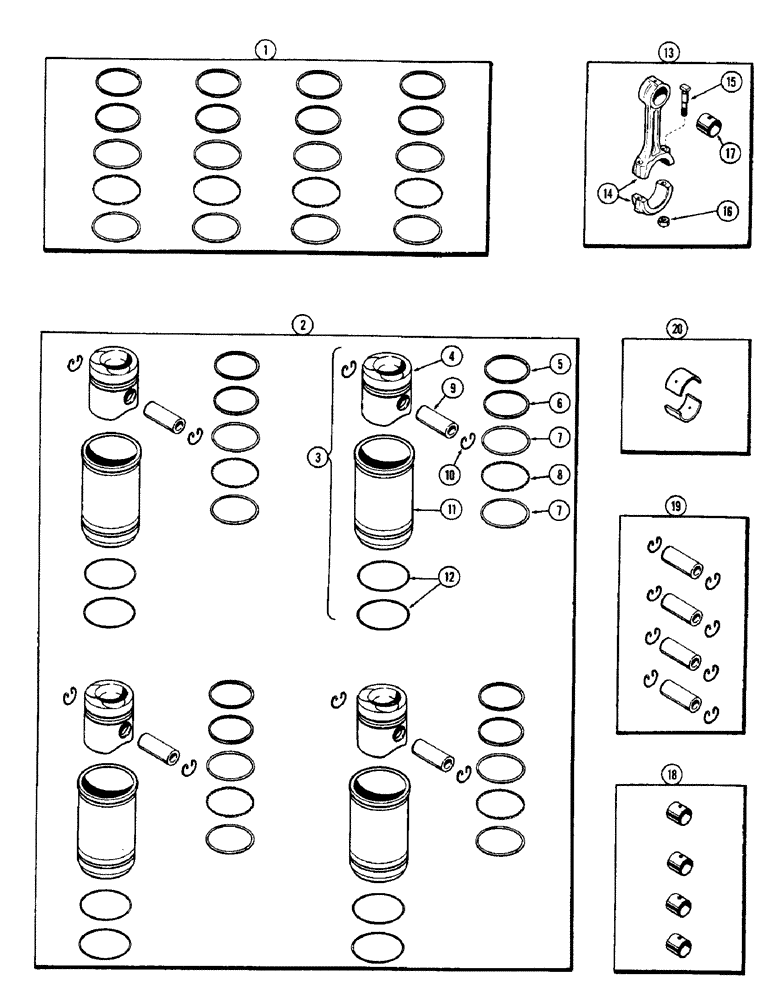

Запчасти Case 310G (016) - PISTON ASSEMBLY AND CONNECTING RODS, (188) DIESEL ENGINE (01) - ENGINE

1

G37075

RING

SET - replacement (4 pistons)

1шт.

2

A42813

PISTON

& SLEEVE - matched set of 4

1шт.

3

A42812

SLEEVE

PISTONS & SLEEVE - matched set

4шт.

4

A38424

PISTON

- (3-13/16" dia.)

1шт.

5

G4819

RING

- top, piston (See ref. 1)

1шт.

6

G4817

RING

- compression, piston (See ref. 1)

1шт.

7

G47155

RAIL

- oil (See ref. 1)

2шт.

8

G47174

SPRING

SPACER - oil rail (See ref. 1)

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 19)

1шт.

10

G46702

RING, LOCKING

RING - retaining (See ref. 19)

2шт.

11

A39006

SLEEVE

- cylinder

1шт.

12

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing (3-3/4" I.D.)

2шт.

13

G11847

ROD

ASSY. - connecting

4шт.

14

NSS

NOT SOLD SEPARAT

ROD & CAP - (Order G11847)

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rod (Order ref. 18)

1шт.

18

G11953

BUSHING

S - connecting rods (Set of 4)

1шт.

19

A35771

KIT

PIN SET - piston (Set of 4 w/retaining rings)

1шт.

20

A36500

SEAL

LINERS - bearing, conn. rod (Std.)

4шт.

20

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

4шт.

20

A36502

LINING

LINERS - bearing, conn. rod (.010" undersize)

4шт.

20

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

4шт.

20

A36504

KIT

LINERS - bearing, conn. rod (.030" undersize)

4шт.
