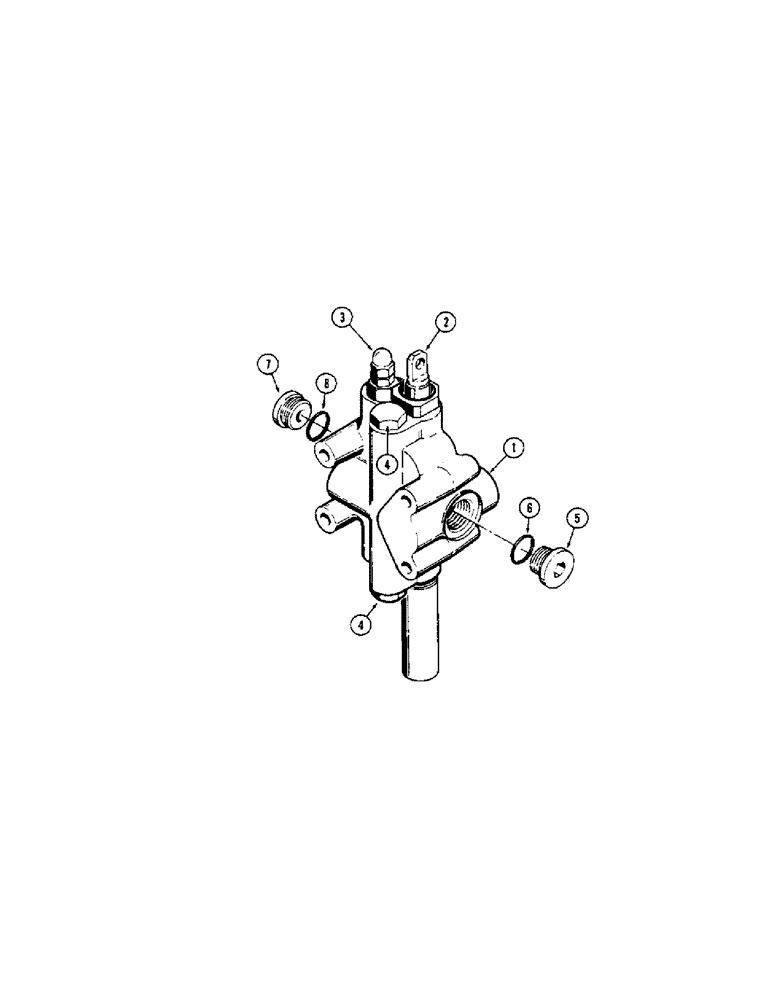

Запчасти Case 310G (262) - D45036 EQUIPMENT CONTROL VALVE (1 SPOOL) (07) - HYDRAULIC SYSTEM

1

D45036

VALVE - equipment control (One spool) Parker VDSP 22-F-22

1шт.

2

D46024

SPOOL

- four position (Parts list Figure 270)

1шт.

D46025

SPOOL

- four position (Parts list Figure 270)

1шт.

D46026

PLUG

SPOOL - four position (Parts list Figure 270)

1шт.

D46027

SPOOL

- four position (Parts list Figure 270)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 268)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 272)

2шт.

5

9841223

PLUG,1-1/16" - 12 ORB

Valve port Hex Soc, 1 1/16"-12 ORB

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port Hex Soc, 1 5/16"-12 ORB

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
