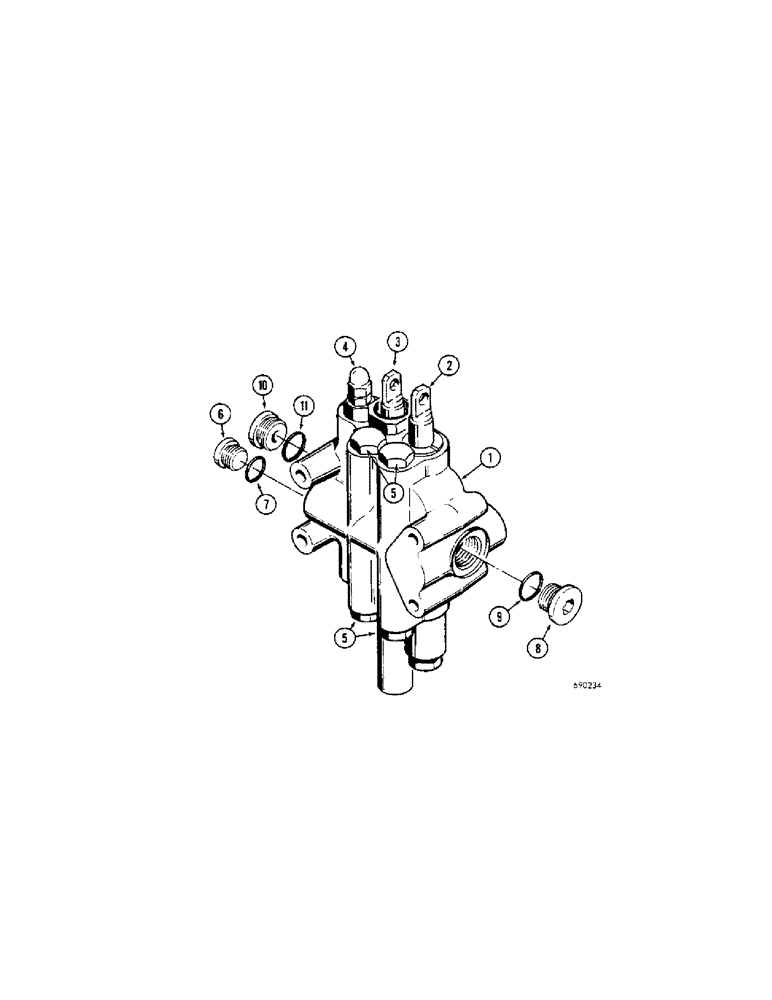

Запчасти Case 310G (262[1]) - D45037 EQUIPMENT CONTROL VALVE (2 SPOOL) (07) - HYDRAULIC SYSTEM

1

D45037

VALVE

- equipment control (Two spool) Parker VDP 22-FD- 40

1шт.

2

D37050

SPOOL

- three position (Parts list Figure 268)

1шт.

D37051

SPOOL

- three position (Parts list Figure 268)

1шт.

D37052

SPOOL

- three position (Parts list Figure 268)

1шт.

D37053

SPOOL

- three position (Parts list Figure 268)

1шт.

3

D46024

SPOOL

- four position (Parts list Figure 270)

1шт.

D46025

SPOOL

- four position (Parts list Figure 270)

1шт.

N6592

VALVE

SPOOL - four position (Parts list Figure 270)

1шт.

D46027

SPOOL

- four position (Parts list Figure 270)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 268)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 272)

4шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port Hex Soc, 3/4"-16 ORB

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Valve port Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port Hex Soc, 1 5/16"-12 ORB

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
