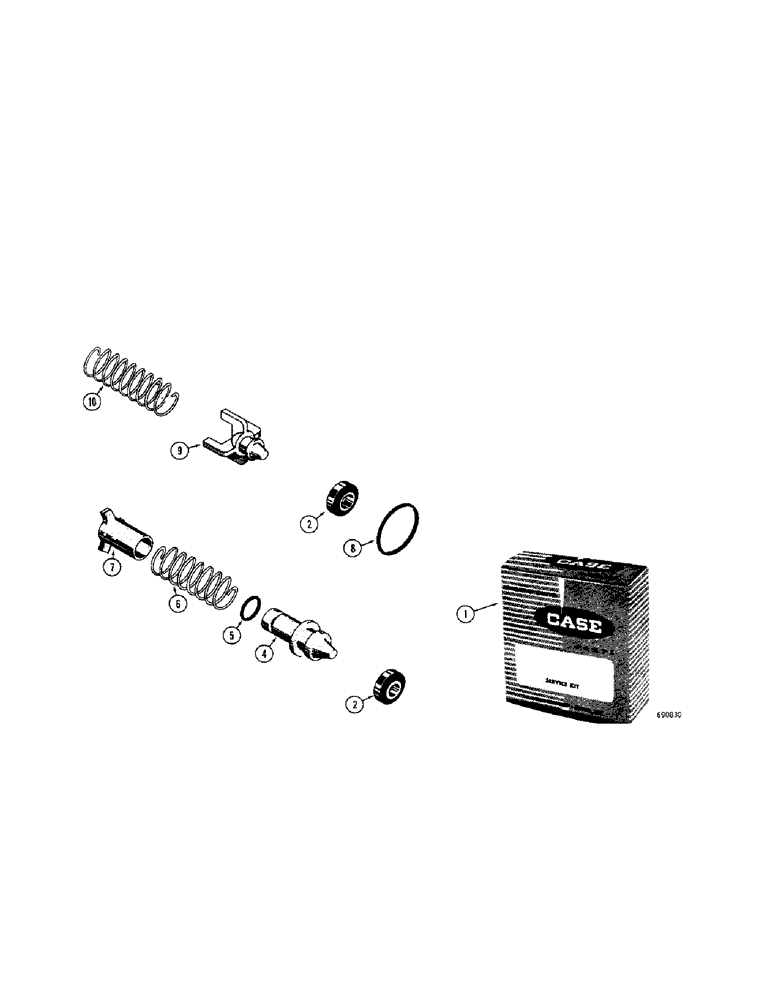

Запчасти Case 310G (250[2]) - SERVICE KIT FOR HYDRAULIC COUPLINGS (07) - HYDRAULIC SYSTEM

1

A40459

KIT

- service, A28541 and A28542 couplings

1шт.

2

A33964

SEAL

- piston

2шт.

3

RESERVED

1шт.

4

A27508

PISTON

- coupling plug

1шт.

5

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring, piston sleeve

1шт.

6

A27351

SPRING

- piston

1шт.

7

A9631ASY

SPARE PART

- coupling plug piston

1шт.

8

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, socket body

1шт.

9

A26215

PISTON

- socket

1шт.

10

A11324

SPRING

- coupling piston

1шт.
