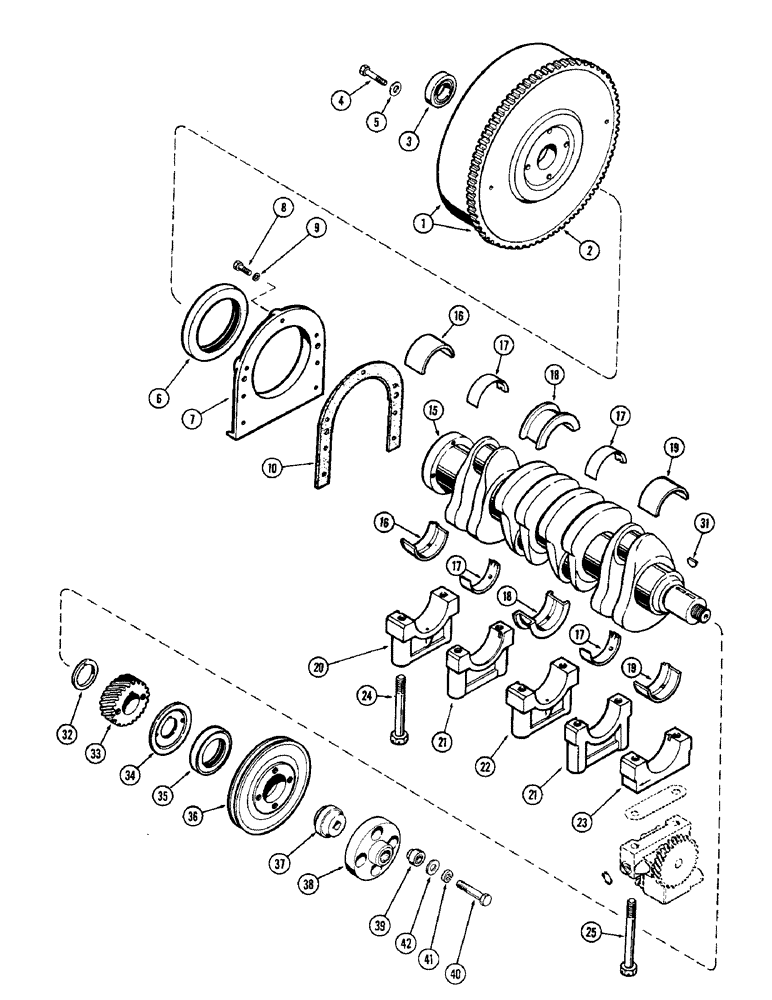

Запчасти Case 310G (014) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (01) - ENGINE

1

G37091

FLYWHEEL ASSY.

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A30128

BEARING ASSY

BEARING - pilot, flywheel

1шт.

4

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - place, 7/16 x 1-1/8" N.F. hex.

4шт.

5

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- place bolt (29/64 x 3/4 x 1/16")

4шт.

6

A36610

OIL SEAL

- oil, crankshaft rear

1шт.

7

A38390

RETAINER

- oil seal, rear

1шт.

8

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Gr. 8)

4шт.

8

113-26

BOLT

- 1/4 x 1" N.C. hex. (Gr. 8)

3шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

10

A38196

GASKET

- retainer, rear oil seal

1шт.

15

G11889

CRANKSHAFT

1шт.

16

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.)

1шт.

16

A36496

LINING

LINERS - rear bearing (.002" undersize)

1шт.

16

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (.010" undersize)

1шт.

16

A36498

KIT

LINERS - rear bearing (.020" undersize)

1шт.

16

A36499

BEARING LINER

LINERS - rear bearing (.030" undersize)

1шт.

17

A36485

LINING

LINERS - intermediate bearing (Std.)

2шт.

17

A36486

LINING

LINERS - intermediate bearing (.002" undersize)

2шт.

17

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (.010" undersize)

2шт.

17

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate bearing (.020" undersize)

2шт.

17

A36489

LINING

LINERS - intermediate bearing (.030" undersize)

2шт.

18

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Std.)

1шт.

18

A36491

LINING

LINERS - center bearing (.002" undersize)

1шт.

18

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.010" undersize)

1шт.

18

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.020" undersize)

1шт.

18

A36494

LINING

LINERS - center bearing (.030" undersize)

1шт.

19

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.)

1шт.

19

A36481

LINING

LINERS - front bearing (.002" undersize)

1шт.

19

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (.010" undersize)

1шт.

19

A36483

LINING

LINERS - front bearing (.020" undersize)

1шт.

19

A36484

LINING

LINERS - front bearing (.030" undersize)

1шт.

20

A38385

CAP

- rear bearing, crankshaft

1шт.

21

G2128

CAP

- intermediate bearing, crankshaft

2шт.

22

G2127

CAP

- center bearing, crankshaft

1шт.

23

G2126

CAP

- front bearing, crankshaft

1шт.

24

113-444

BOLT

- bearing cap (1/2 x 4-1/2")

8шт.

25

113-445

BOLT

- oil pump & front brg. cap (1/2 x 5-1/8")

2шт.

31

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

32

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

33

A29263

GEAR

- crankshaft (24T)

1шт.

34

A29259

SLINGER

- oil

1шт.

35

A36609

OIL SEAL

- oil, crankshaft front

1шт.

36

G11342

X

PULLEY - drive, fan & generator

1шт.

37

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

38

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flex

1шт.

39

G36905

BLOCK

BUSHING - flex, coupling bolt

4шт.

40

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

41

92-7

LOCK WASHER,7/16"

4шт.

42

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (3/4" I.D. x 29/64" O.D. #16 ga.)

4шт.
