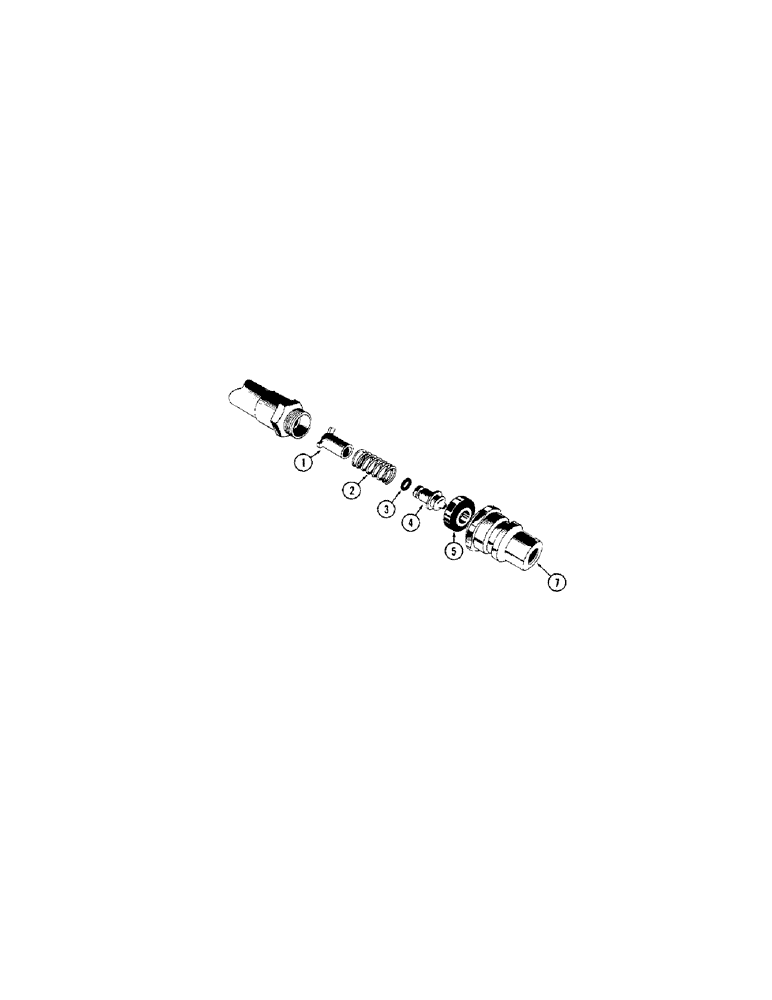

Запчасти Case 310G (250[1]) - A28541 PULL BEHIND COUPLING - MALE (07) - HYDRAULIC SYSTEM

1

A9634

SLEEVE

- coupling plug piston

1шт.

2

A27351

SPRING

- piston

1шт.

3

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring, piston sleeve

1шт.

4

A27508

PISTON

- coupling plug

1шт.

5

A33964

SEAL

- piston

1шт.

6

RESERVED

1шт.

7

A27356

PIPE FITTING

BODY - male plug coupling

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- connecting, Case hydraulic hose to 1/2" female pipe connection (1/2" male pipe x 7/8" - 18 NF female), for pull behind

1шт.

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- connecting, Case pull behind couplings to hydraulic hose lines having 1/2" pipe thread (1/2" female pipe x 7/8" - 18 NF male), for pull behind

1шт.
