(246[1]) - D43567 HYDRAULIC OIL FILTER

Запчасти Case 310G (246[1]) - D43567 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

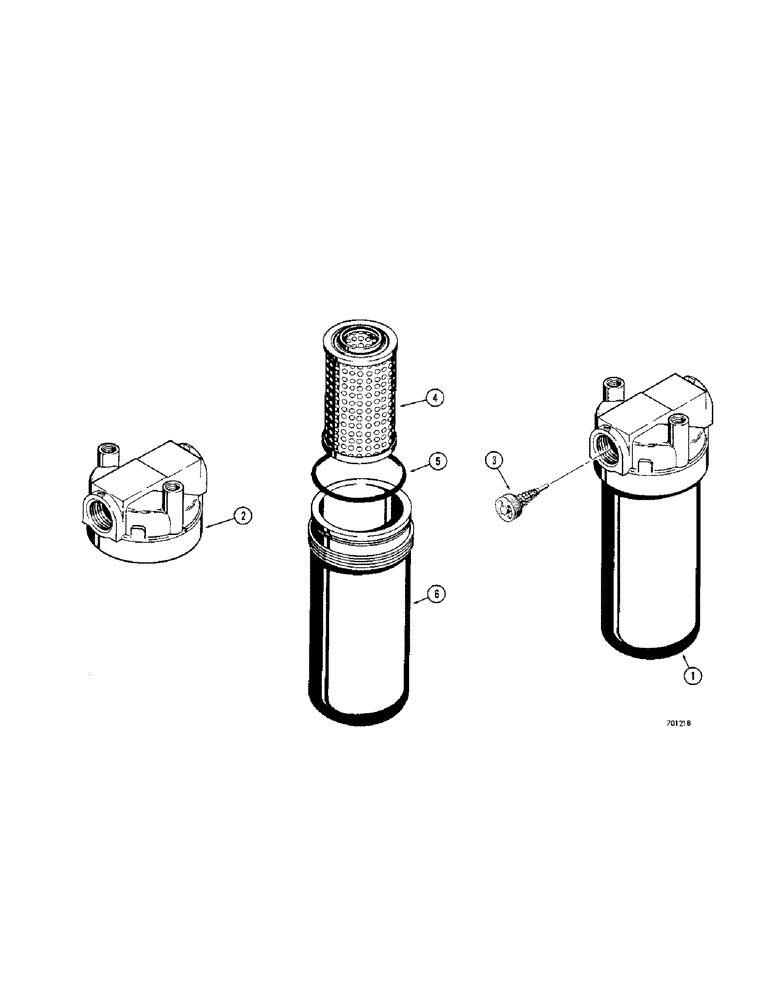

Схема запчастей Case 310G - (246[1]) - D43567 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D43567

FILTER ASSY

- hydraulic oil

1шт.

2

D42440

FILTER HEAD

HEAD ASSEMBLY - filter

1шт.

3

D49377

LOCK VALVE

VALVE - bypass, 25 P.S.I.

1шт.

D43800

FILTER, ELEMENT

KIT - filter

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D42439

HOUSING

- filter

1шт.
