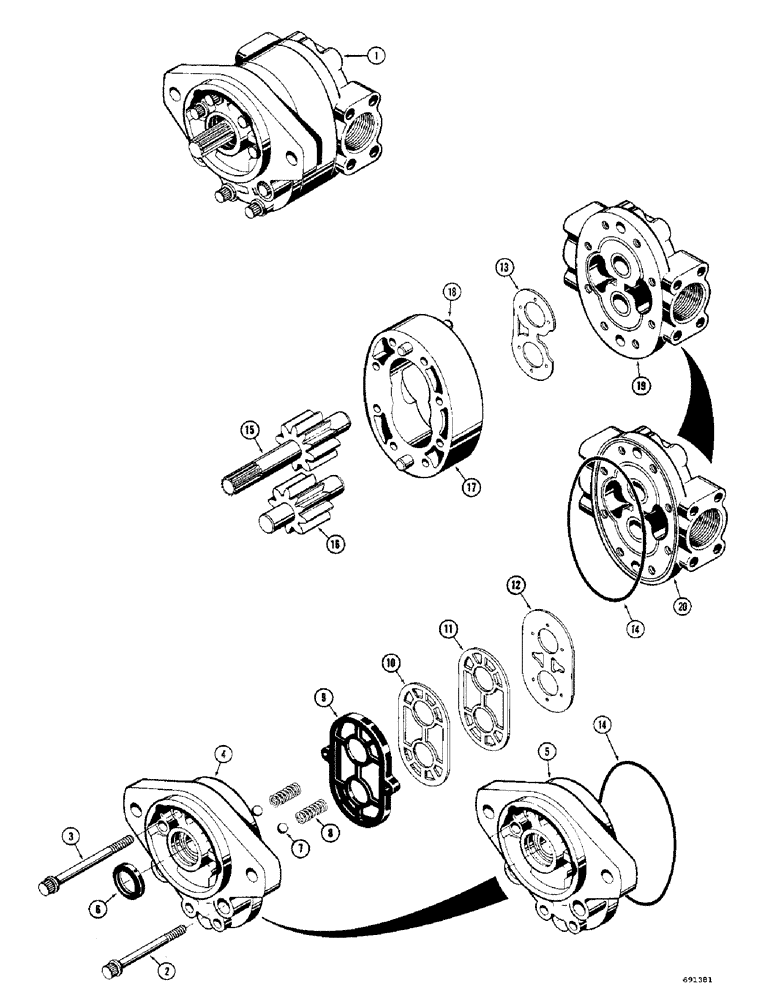

Запчасти Case 310G (244) - D41390 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D41390
PUMP
- hydraulic, 26 G.P.M. at 2500 R.P.M. at 1800 P.S.I.
1шт.
1
DR41390
REMAN-HYD PUMP
Remanufactured, Pump, Hydraulic
1шт.
1
DC41390
CORE-HYDRAULIC PUMP
Return Part Number, Pump, Hydraulic
1шт.
1
87644746R
REMAN-HYD PUMP
310G, (S/N 3039619 & AFTER), Reman For New P/N D41390 & 87644746
1шт.
1
87644746C
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
2
166-54
12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8
SCREW - ferry cap (3/8" - 16 NC x 3-1/4")
4шт.
3
166-55
12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8
SCREW - ferry cap (3/8" - 16 NC x 3-1/2")
4шт.
4
D31395
PLATE ASSY.
COVER - driveshaft end (When stock is exhausted, order (1) D48879 cover and (1) D48887 seal for service)
1шт.
5
D48879
COVER
- driveshaft end
1шт.
D41318
KIT
- pump rebuild (When stock is exhausted, order (1) D49374 kit for service)
1шт.
D49374
SERVICE KIT
KIT - pump rebuild
1шт.
6
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
- driveshaft
1шт.
7
D31404
BALL
- steel (13/32" dia.)
2шт.
8
D31403
SPRING
- ball retaining
2шт.
9
D31397
SEAL
- diaphragm
1шт.
10
A41244
GASKET
- backup
1шт.
11
NLS
NO LONGER SERVICED
- protector (When stock is exhausted, order (1) A42305 gasket for service)
1шт.
A42305
GASKET
- protector
1шт.
12
D41321
DIAPHRAGM
- pump
1шт.
13
D41322
PLATE
- thrust
1шт.
14
D48887
O-RING
SEAL - "O" ring, cover seal for D48879 and D48883 cover (Part of D49374 kit only)
2шт.
D41421
GEAR-SET
GEAR SET - drive and driven (When stock is exhausted, order (1) D49380 gear set for service)
1шт.
D49380
GEAR
SET - drive and driven
1шт.
15
NSS
NOT SOLD SEPARAT
DRIVESHAFT AND GEAR - pump
1шт.
16
NSS
NOT SOLD SEPARAT
IDLER SHAFT AND GEAR - pump
1шт.
17
D49371
HOUSING
- gear
1шт.
18
D49373
DOWEL
- pump housing
2шт.
19
D31407
PLATE ASSY.
COVER - port end (When stock is exhausted, order (1) D48883 cover and (1) D48887 seal fo service)
1шт.
20
D48883
COVER
- port end
1шт.
Выбрано товаров: 29
