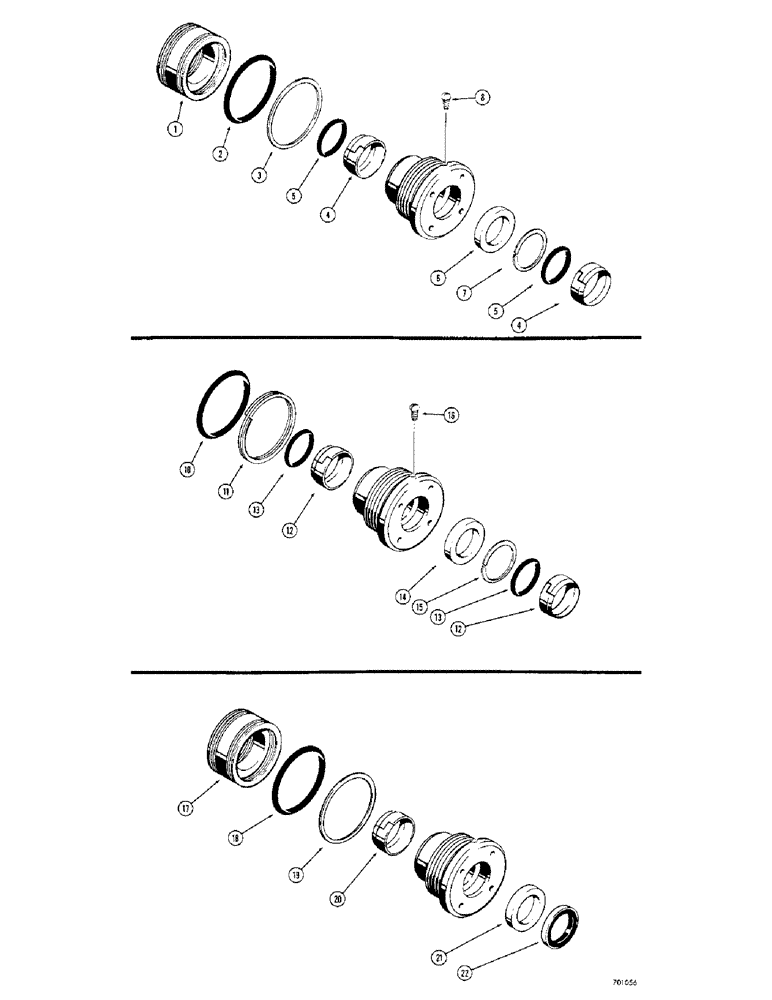

Запчасти Case 310G (243A) - CYLINDER PACKING KITS, D37355 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
D37355
KIT - cylinder packing (When stock is exhausted, order 1 - D42872 kit for service - plus 1 - d28374 packing if required)
1шт.
1
D28374
PACKAGE,SERVICE
PACKING - piston
1шт.
2
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL "O" ring, gland
1шт.
3
D28049
RING
- backup, gland seal
1шт.
4
D27432
SHIM
- rod
2шт.
5
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O" ring, wiper (If used)
2шт.
6
D36970
CUP
SEAL - rod
1шт.
7
D28499
RING
- backup, rod seal
1шт.
8
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
9
131-19
LOCK NUT,1"-14, GB
NUT - hex. lock (1" - 14 NF) If used (Not shown)
1шт.
D42872
GLAND
KIT - gland packing
1шт.
10
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland, D42872 packing kit
1шт.
11
D28049
RING
- backup, gland seal D42872 packing kit
1шт.
12
D27432
SHIM
- rod D42872 gland packing kit
2шт.
13
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O" ring, wipe (If used) D42872 gland packing kit
2шт.
14
D36970
CUP
SEAL - rod D42872 gland packing kit
1шт.
15
D28499
RING
- backup, rod seal D42872 gland packing kit
1шт.
16
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4" D42872 gland packing kit
1шт.
G32289
SEAL
KIT - cylinder packing
1шт.
17
D28374
PACKAGE,SERVICE
PACKING - piston, G32289 cylinder kit
1шт.
18
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland, G32289 cylinder packing kit
1шт.
19
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup, gland seal, G32289 cylinder packing kit
1шт.
20
D27432
SHIM
- rod, inner, G32289 cylinder packing kit
1шт.
21
D36970
CUP
SEAL - rod, G32289 cylinder packing kit
1шт.
22
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - rod, outer, G32289 cylinder packing kit
1шт.
Выбрано товаров: 25
