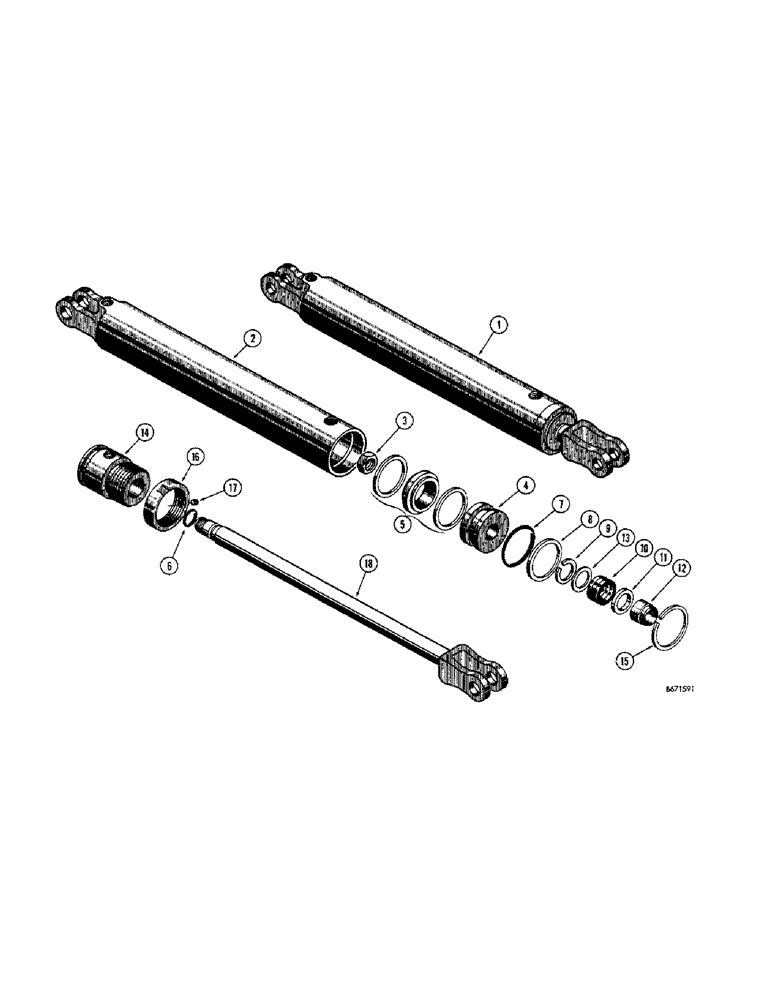

Запчасти Case 310G (240) - D38724 AND D38725 LIFT CYLINDERS, (HYTECO DOZER) (07) - HYDRAULIC SYSTEM

1

D38724

CYLINDER - lift, L.H. (3" dia. x 17-3/4" stroke)

1шт.

D38725

CYLINDER - lift, R.H. (3" dia. x 17-3/4" stroke)

1шт.

2

D38740

TUBE - cylinder

1шт.

3

131-17

LOCK NUT

NUT - lock, hex. (7/8" - 14 NF)

1шт.

4

D38742

PISTON - 3" dia.

1шт.

D38808

SEAL PACKAGE

KIT - cylinder packing

1шт.

5

D38744

"T" RING - piston packing

1шт.

6

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston inner

1шт.

7

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D38745

RING - leather backup

1шт.

9

D38748

SNAP RING,#162, 1.701, Int, Spiral

RING - retaining, rod packing

1шт.

10

D38750

PACKING - piston rod

3шт.

11

D38751

ADAPTER - piston rod packing

1шт.

12

D38752

WIPER - piston rod

1шт.

13

D38761

WASHER

- rod packing

1шт.

14

D38747

GLAND

- packing

1шт.

15

D38743

SNAP RING,3.00", Int, #300

gland 3.00", Int, #300

1шт.

16

D38746

CAP

- gland locking

1шт.

17

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, hex. socket head (#8 - 32 NC x 1/2")

1шт.

18

D38741

ROD - piston, 1-1/8" dia.

1шт.
