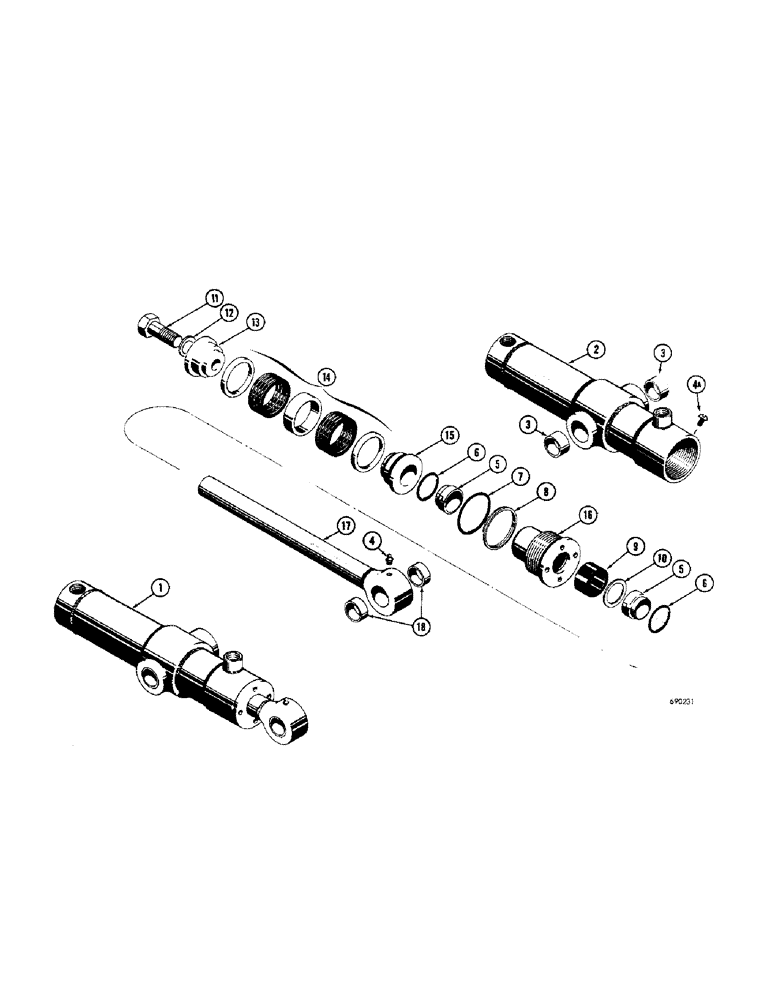

Запчасти Case 310G (240[1]) - D31185 RIPPER CYLINDER USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D31185

CYLINDER - ripper (3" I.D. x 10-1/2" stroke)

1шт.

2

D31184

TUBE

- cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

4a

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27706

WIPER SEAL

WIPER - rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D28049

RING

- backup, gland seal

1шт.

9

D36969

CUP

SEAL - rod

1шт.

10

D28498

RING

- backup, rod seal

1-3шт.

11

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 1-1/2"

1шт.

12

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

13

D28366

PISTON

- half, bolt end

1шт.

14

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

15

D28365

PISTON

- half, rod end

1шт.

16

D45067

GLAND

- packing (When stock is exhausted, use G32120 gland and D95142 wiper)

1шт.

17

D32143

EYE

ROD - piston (1-1/2" dia.)

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.
