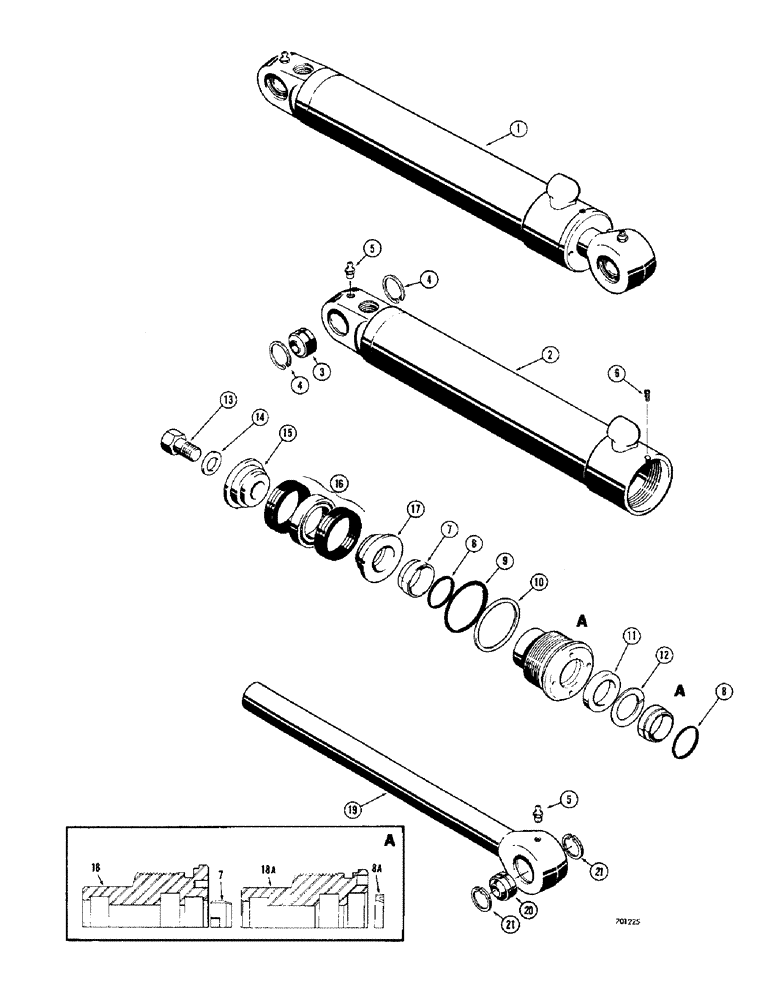

Запчасти Case 310G (236) - TILT CYLINDERS (POWER ANGLE TILT DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D46615

CYLINDER - tilt (2-1/2" I.D. x 7-9/17" stroke)

1шт.

2

D46621

TUBE - cylinder

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

7

D27705

WIPER

- rod

2шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

D27856

RING

- backup, gland seal

1шт.

11

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

12

D28497

RING

- backup, rod seal

1шт.

13

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2"

1шт.

14

G32617

SEAL

WASHER - special

1шт.

15

D28364

PISTON

- split, bolt end

1шт.

16

D28373

PACKING

- piston

1шт.

17

D28362

SCREW

- split, eye end

1шт.

18

D45065

GLAND

- packing (When stock is exhausted, use G32118 gland and D95141 wiper)

1шт.

19

D46616

ROD ASSY.

ROD - piston (1-1/4" dia.)

1шт.

20

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning

1шт.

21

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

2шт.

1

G32150

CYLINDER ASSY.

CYLINDER - tilt (2-1/2" I.D. x 7-9/17" storke), uses press in outer rod wiper

1шт.

2

D46621

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning, uses press in outer rod wiper

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, , uses press-in outer rod wiper 2", Int, #200

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), uses press in outer rod wiper

2шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

7

D27705

WIPER

- rod, inner, uses press in outer

1шт.

8

NOT REQUIRED

1шт.

8a

D95141

WIPER SEAL

WIPER - rod, outer, uses press in

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

11

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- uses press in outer rod wiper

1шт.

12

NOT REQUIRED

1шт.

13

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", uses press in outer rod wiper

1шт.

14

G32617

SEAL

WASHER - special, uses press in outer rod wiper

1шт.

15

D28364

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

16

D28373

PACKING

- piston, split, uses press in outer rod wiper

1шт.

17

NLS

NO LONGER SERVICED

- split, eye end, uses press in outer rod wiper

1шт.

18a

G32118

GLAND

- packing, uses press in outer rod wiper

1шт.

19

D46616

ROD ASSY.

ROD - piston, uses press in outer wiper

1шт.

20

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - self-aligning, uses press in outer rod wiper

1шт.

21

D28436

SNAP RING,2", Int, #200

Ring, Snap, , uses press-in outer rod wiper 2", Int, #200

2шт.
