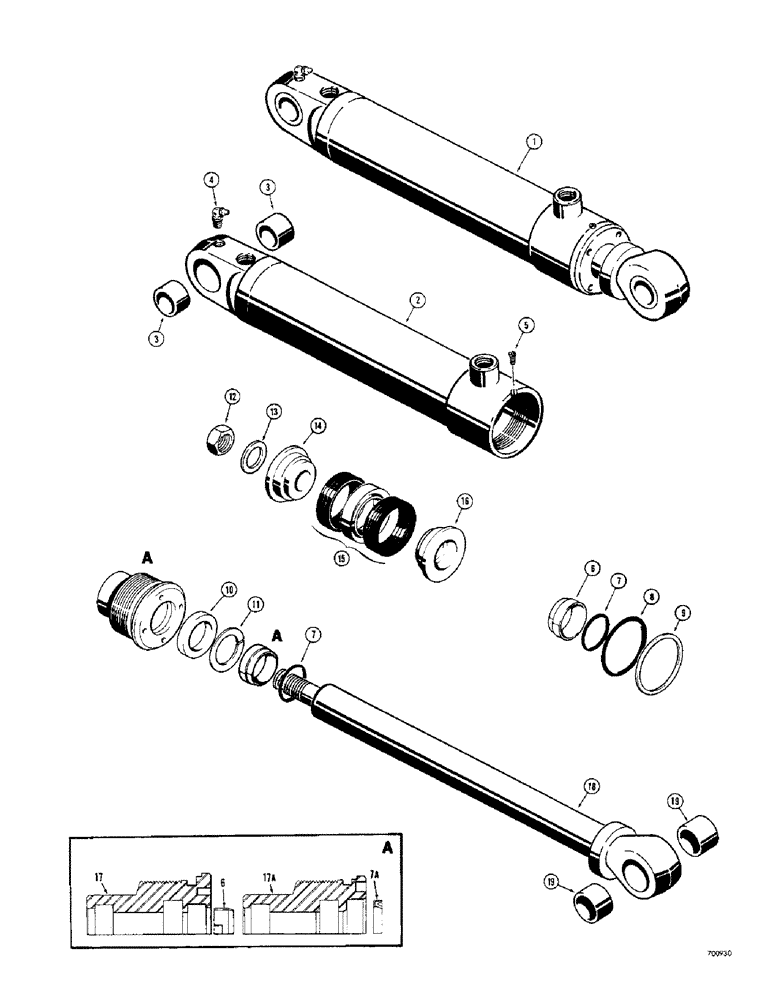

Запчасти Case 310G (234) - TILT CYLINDERS (POWER TILT DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D28218

CYLINDER ASSY.

CYLINDER - hydraulic (2-1/2" I.D. x 4-3/4" stroke)

1шт.

2

D28254

TUBE - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27705

WIPER

- rod

2шт.

7

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27856

RING

- backup, gland seal

1шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

11

D28497

RING

- backup, rod seal

1шт.

12

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28364

PISTON

- half, nut end

1шт.

15

D28373

PACKING

- piston

1шт.

16

NLS

NO LONGER SERVICED

PISTON - half, rod end

1шт.

17

D45065

GLAND

- packing (When stock is exhausted, use G32118 gland and D95141 wiper)

1шт.

18

D28251

X

ROD - piston (1-1/4" dia.)

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

1

G32476

CYLINDER

- tilt (2-1/2" I.D. x 4-3/4" stroke), uses press in outer rod wiper

1шт.

2

D28254

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end, uses press in outer rod wiper

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT), uses press in outer rod wiper

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27705

WIPER

- rod, inner, uses press in outer

1шт.

7

NOT REQUIRED

1шт.

7a

D95141

WIPER SEAL

WIPER - rod, outer, uses press in

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- uses press in outer rod wiper

1шт.

11

NOT REQUIRED

1шт.

12

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , Uses press in outer rod wiper 3/4"-16, GB

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, uses press in outer rod wiper

1шт.

14

D28364

PISTON

- split, nut end, uses press in outer rod wiper

1шт.

15

D28373

PACKING

- piston, uses press in outer rod wiper

1шт.

16

NLS

NO LONGER SERVICED

PISTON - split, eye end, uses press in outer rod wiper

1шт.

17a

G32118

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D28251

X

ROD - piston (1-1/4" dia.), uses press in outer wiper

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod, uses press in outer wiper

2шт.
