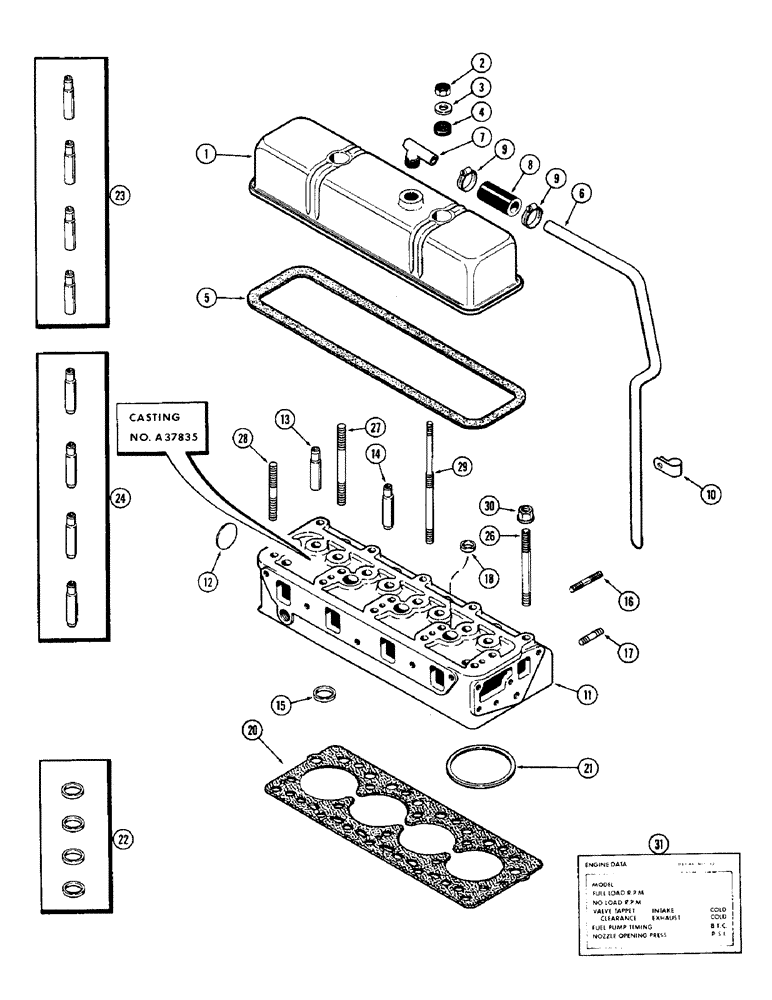

Запчасти Case 310G (010) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ENGINE (01) - ENGINE

1

A36815

COVER

- valves & head

1шт.

2

25-106

NUT,3/8"-16, G5

- cover, 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- cover nut (13/32" I.D. x 15/32" O.D. #10 ga.)

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

G46866

GASKET

-, Serial Range: cover-head

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather tube

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

-, Serial Range: tube-engine

1шт.

11

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A37835)

1шт.

12

A30036

PLUG

- rear (1-3/4" expansion type)

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 23)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 24)

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhuast valve seat (Order ref. 22)

4шт.

16

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

17

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

4шт.

18

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

20

A38640

-, Serial Range: head-block

1шт.

21

A38639

RING

- fire (Std. orange coated) (4-5/16" O.D. x 4-17/32" I.D. x 1/16")

4шт.

21

A38651

RING

- fire (Oversize black coated) (4-5/16" O.D. x 4-17/32" I.D. x 5/64")

4шт.

22

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

23

G11946

GUIDE

S - exhaust valve (Set of 4)

1шт.

24

G11945

GUIDE

S - intake valve (Set of 4)

1шт.

26

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

27

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

28

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

29

A36903

STUD

- cover and head (3/8" N.C. x 1/2" N.C. x 9-7/16")

2шт.

30

A37030

FLANGE NUT

- flanged, head stud

19шт.

31

321-1370

DECAL - engine data (On valve cover) (w/dry clutch)

1шт.

31

321-1635

DECAL - engine data (On valve cover) (w/torque conn.)

1шт.
