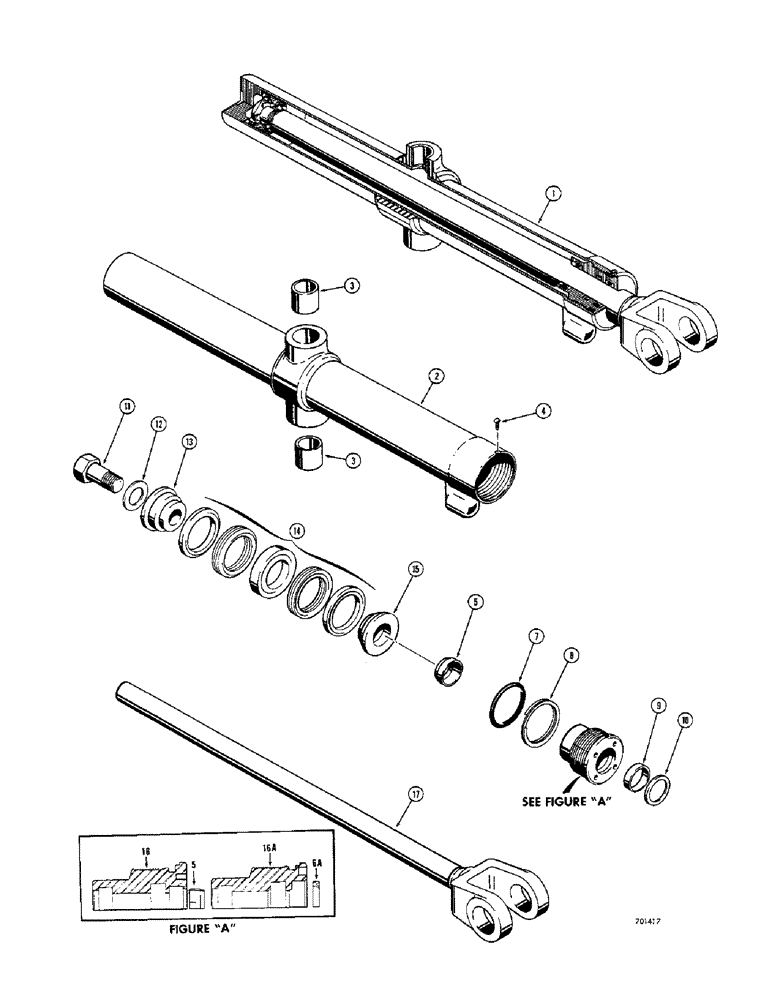

Запчасти Case 310G (228) - LIFT CYLINDER (POWER ANGLE TILT DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D46473

CYLINDER - lift, 2-1/2" I.D. x 25-1/2" stroke

2шт.

2

D46613

TUBE - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27705

WIPER

- rod

2шт.

6

RESERVED

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D27856

RING

- backup, gland seal

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

10

D28497

RING

- backup, rod seal

1шт.

11

D29306

BOLT

- special

1шт.

12

G32617

SEAL

WASHER - special

1шт.

13

D28364

PISTON

- split, bolt end

1шт.

14

D28373

PACKING

- piston

1шт.

15

NLS

NO LONGER SERVICED

PISTON - split, rod end

1шт.

16

D45065

GLAND

- packing (When stock is exhausted, use G32149 cylinder)

1шт.

17

D46474

ROD ASSY.

ROD - piston (1-3/4" dia.)

1шт.

1

G32149

CYLINDER

- lift, 2-1/2" I.D. x 25-1/2" stroke, uses press in outer rod wiper

2шт.

2

D46613

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion, uses press in outer rod wiper

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

5

D27705

WIPER

- rod, inner, uses press in outer

1шт.

6

RESERVED

1шт.

6a

D95141

WIPER SEAL

WIPER - rod, outer, uses press in outer

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- uses press in outer rod wiper

1шт.

10

NOT REQUIRED

1шт.

11

D29306

BOLT

- special, uses press in outer rod wiper

1шт.

12

G32617

SEAL

WASHER - special, uses press in outer rod wiper

1шт.

13

D28364

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

14

D28373

PACKING

- piston, uses press in outer rod wiper

1шт.

15

NLS

NO LONGER SERVICED

PISTON - split, rod end, uses press in outer wiper

1шт.

16a

G32118

GLAND

- packing, uses press in outer rod wiper

1шт.

17

D46474

ROD ASSY.

ROD - piston (1-3/4" dia.), uses press in outer wiper

1шт.
