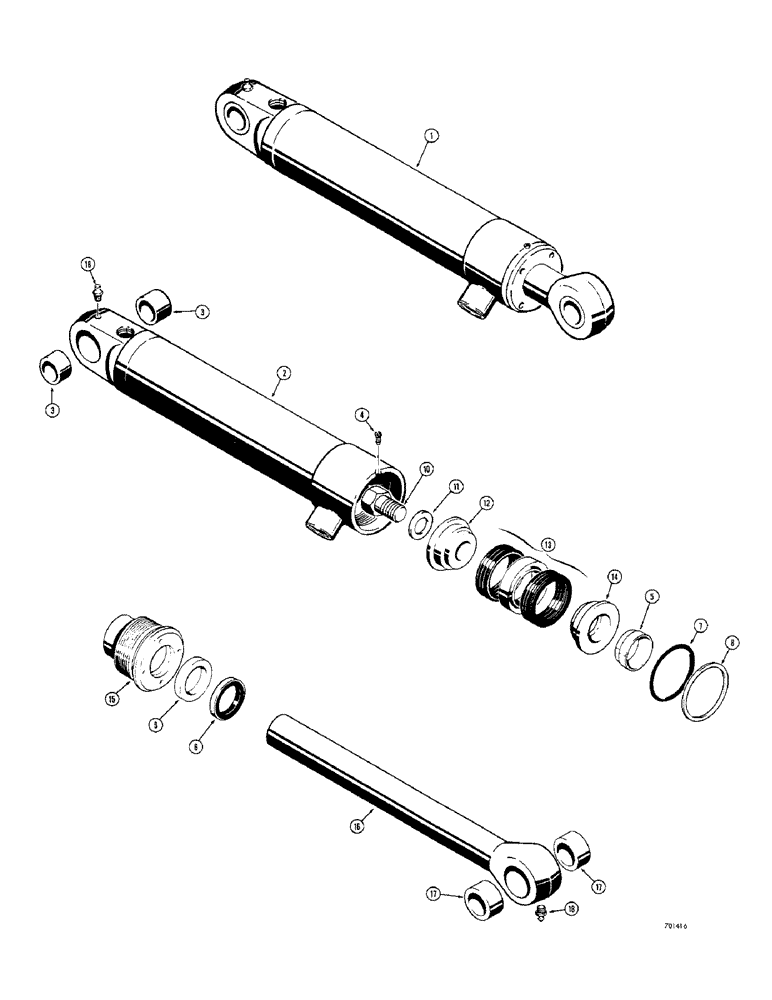

Запчасти Case 310G (225C) - G32286 AND G32287 CLAM CYLINDERS, USED ON D51664 4 - IN - 1 BUCKET (07) - HYDRAULIC SYSTEM

1

G32286

CYLINDER

- clam, L.H. (3" I.D. x 9" stroke)

1шт.

This cylinder uses G32289 gland packing kit. For kit components, see Figure 243A.

1шт.

1

G32287

CYLINDER - clam, R.H. (3" I.D. x 9" stroke)

1шт.

This cylinder uses G32289 gland packing kit. For kit components, see Figure 243A.

1шт.

2

G32304

HYD TUBE

TUBE - cylinder, L.H.

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE - cylinder, R.H.

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tubes

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-taapping, #8 - 32 NC x 1/4"

1шт.

5

D27432

SHIM

- rod, inner

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland seal

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

9

D36970

CUP

SEAL - rod

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

10

D32861

BOLT

- special

1шт.

11

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

12

D28896

PISTON

- split, bolt end

1шт.

13

D28374

PACKAGE,SERVICE

PACKING - split

1шт.

14

D28897

PISTON

- split, eye end

1шт.

15

NSS

NOT SOLD SEPARAT

GLAND - packing (Use G32735 gland assembly)

1шт.

G32735 gland assembly, Includes: Refs. 5 - 9 and 15

1шт.

16

G32307

ROD

- piston, 1-3/4" dia.

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.
