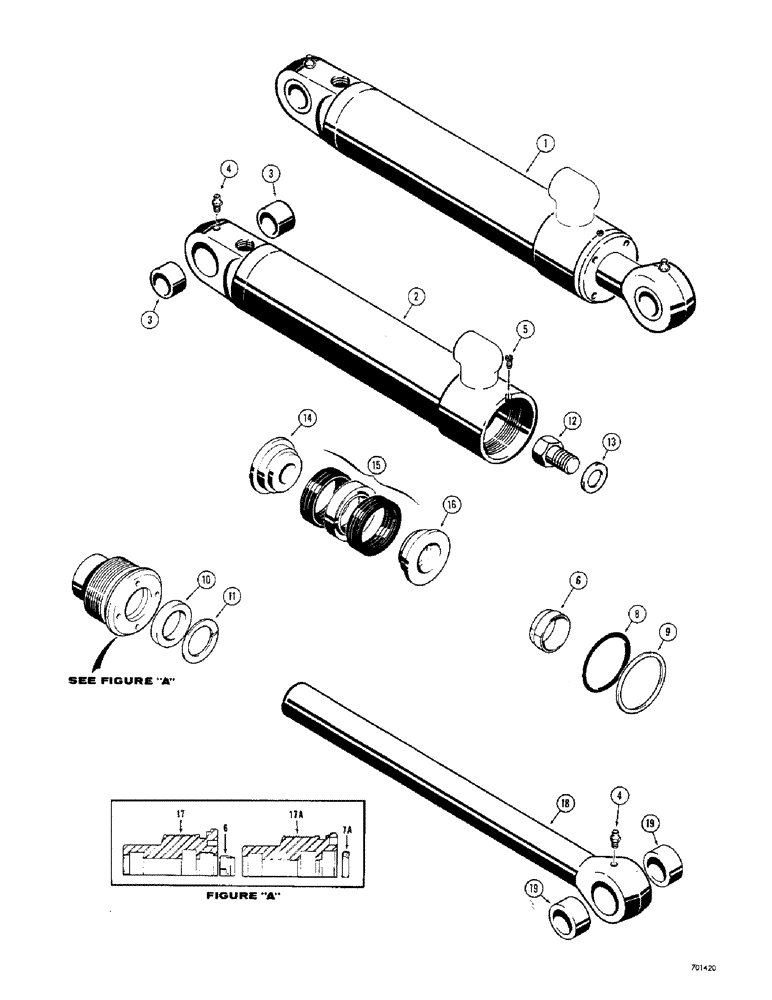

Запчасти Case 310G (225A) - GRAPPLE CYLINDERS (CASE), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D46134

CYLINDER - grapple, 2-1/2" I.D. x 9" stroke

1шт.

2

D46135

TUBE - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

RESERVED

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27856

RING

- backup, gland seal

1шт.

10

D36969

CUP

SEAL - rod

1шт.

11

D28498

RING

- backup, rod seal

1шт.

12

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2"

1шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

15

D28373

PACKING

- split

1шт.

16

D28363

PISTON

- split, eye end

1шт.

17

D45066

GLAND

- packing (When stock is exhuasted, use G32119 gland and D95142 rod wiper)

1шт.

18

D46137

ROD ASSY.

ROD - piston (1-1/2" dia.)

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

1

G32151

CYLINDER - grapple, 2-1/2" I.D x 9" stroke, uses press in outer rod wiper

1шт.

2

D46135

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube, uses press in outer rod wiper

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), uses press in outer rod wiper

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27706

WIPER SEAL

WIPER - rod, uses press in outer

1шт.

7

RESERVED

1шт.

7a

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, uses press in outer

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

10

D36969

CUP

SEAL - uses press in outer rod wiper

1шт.

11

NOT REQUIRED

1шт.

12

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", uses press in outer rod wiper

1шт.

13

G32617

SEAL

WASHER - special, uses press in outer rod wiper

1шт.

14

D28364

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

15

D28373

PACKING

- split, uses press in outer rod wiper

1шт.

16

D28363

PISTON

- split, eye end, uses press in outer rod wiper

1шт.

17a

G32119

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D46137

ROD ASSY.

ROD - piston (1-1/2" dia), uses press in outer wiper

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- uses press in outer rod wiper

2шт.
