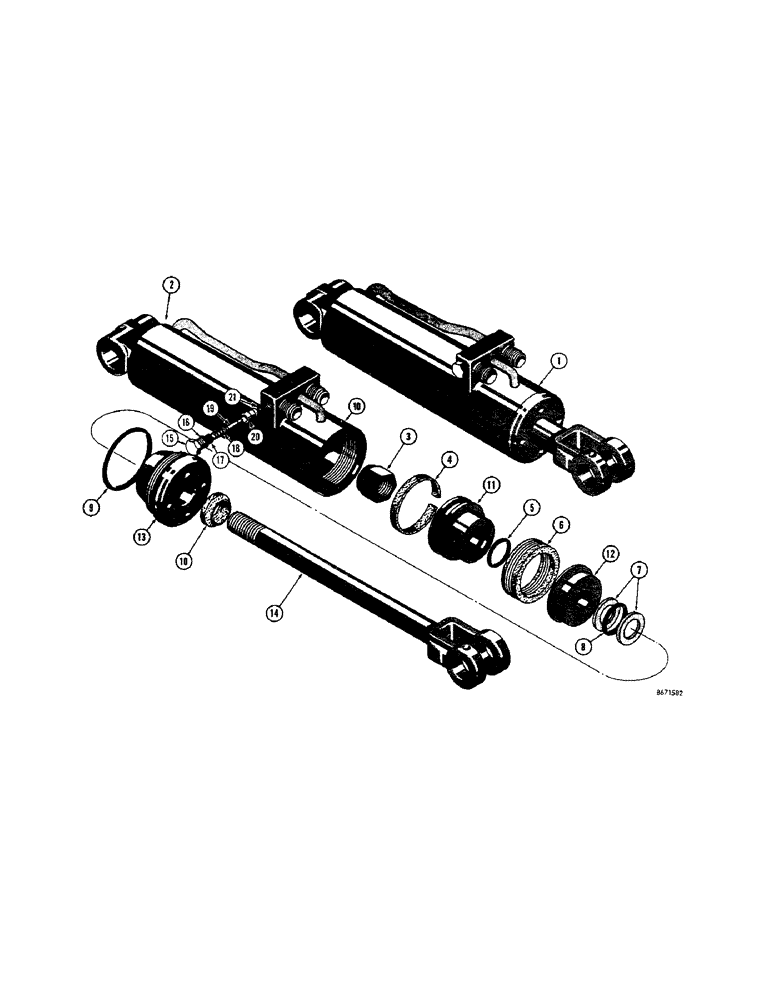

Запчасти Case 310G (224) - D35616 DROTT CLAM CYLINDER, USED ON D34421 DROTT 4 - IN - 1 BUCKET (07) - HYDRAULIC SYSTEM

1

D35616

CYLINDER

- clam (3-1/2" I.D.x 9-3/4" stroke)

1шт.

2

D34459

TUBE - cylinder

1шт.

D35644

CYLINDER

KIT - cylinder

1шт.

3

D35645

X

NUT - nylon self-locking (1-1/8" - 13 NF)

1шт.

4

A18693

RING

- wear

1шт.

5

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

6

A18684

PACKING

- piston

1шт.

7

A18686

WASHER

- leather

2шт.

8

A18687

O-RING

SEAL - "O" ring

1шт.

9

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

SEAL - "O" ring

1шт.

10

A18690

RING

- wiper, piston rod

1шт.

11

A18682

PISTON

- half, nut end

1шт.

12

D35619

PISTON - half, rod end

1шт.

13

A18689

GLAND

- cylinder

1шт.

14

D34460

ROD

- piston

1шт.

15

D35624

CAP - relief valve

1шт.

16

D35651

X

SEAL - "O" ring

1шт.

17

D35625

RING

SHIM - relief valve

1шт.

18

D35626

SPRING

- relief valve

1шт.

19

D35627

X

PLUNGER - relief valve

1шт.

20

D35628

SEAT

- relief valve

1шт.

21

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring

1шт.
