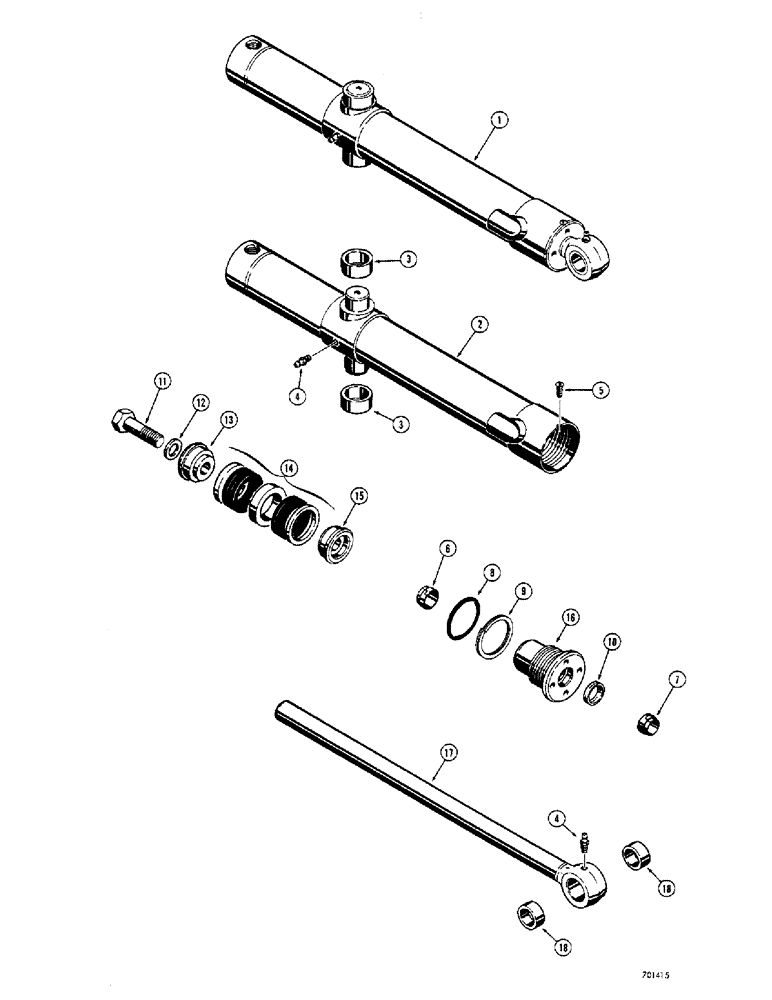

Запчасти Case 310G (223A) - LOADER DUMP CYLINDERS, USES PRESS IN OUTER ROD WIPER, USED BEFORE TRACTOR SERIAL NO. 3042702 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G32465
CYLINDER
- dump, R.H. (2-1/2" I.D. x 20" stroke)
1шт.
1
G32466
CYLINDER
- dump, L.H. (2-1/2" I.D. x 20" stroke)
1шт.
2
D33115
TUBE - cylinder, R.H.
1шт.
2
D33116
TUBE - cylinder, L.H.
1шт.
3
D31511
BUSHING
- tubes
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
6
D27706
WIPER SEAL
WIPER - rod, inner
1шт.
7
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer
1шт.
8
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
9
G32129
BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk
- backup, gland seal
1шт.
10
D36969
CUP
SEAL - rod
1шт.
11
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
HHCS - 3/4" - 16 NF x 2-1/2"
1шт.
12
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
1шт.
13
D28364
PISTON
- split, bolt end
1шт.
14
D28373
PACKING
- piston
1шт.
15
D28363
PISTON
- split, eye end
1шт.
16
G32119
GLAND
- packing
1шт.
17
D33118
PISTON ROD
ROD - piston (1-1/2" dia.)
1шт.
18
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
- piston (1-1/2" dia.)
2шт.
1
G32463
CYLINDER - dump, R.H. (2-1/2" I.D. x 26-13/64" stroke), used tractor serial no. 3042702 & after
1шт.
1
G32462
CYLINDER
- dump, L.H. (2-1/2" I.D. x 26-13/64" stroke), used tractor serial no. 3042702 & after
1шт.
2
D49293
BODY
TUBE - cylinder, R.H., used tractor serial no. 3042702 & after
1шт.
2
D49292
TUBE - cylinder, L.H., used tractor serial no. 3042702 & after
1шт.
3
D31511
BUSHING
- tubes, used tractor serial no. 3042702 & after
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), used tractor serial no. 3042702 & after
2шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4", used tractor serial no. 3042702 & after
1шт.
6
D27706
WIPER SEAL
WIPER - rod, inner, used tractor serial no. 3042702 & after
1шт.
7
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer, used tractor serial no. 3042702 & after
1шт.
8
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
SEAL - "O" ring, gland, used tractor serial no. 3042702 & after
1шт.
9
G32129
BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk
- backup, gland seal, used tractor serial no. 3042702 & after
1шт.
10
D36969
CUP
SEAL - rod, used tractor serial no. 3042702 & after
1шт.
11
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
HHCS - 3/4" - 16 NF x 2-1/2", used tractor serial no. 3042702 & after
1шт.
12
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special, used tractor serial no. 3042702 & after
1шт.
13
D28364
PISTON
- split, bolt end, used tractor serial no. 3042702 & after
1шт.
14
D28373
PACKING
- piston, used tractor serial no. 3042702 & after
1шт.
15
D28363
PISTON
- split, eye end, used tractor serial no. 3042702 & after
1шт.
16
G32119
GLAND
- packing, used tractor serial no. 3042702 & after
1шт.
17
D49290
PISTON ROD
ROD - piston (1-1/2" dia.), used tractor serial no. 3042702 & after
1шт.
18
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
used tractor serial no. 3042702 & after
2шт.
Выбрано товаров: 40
