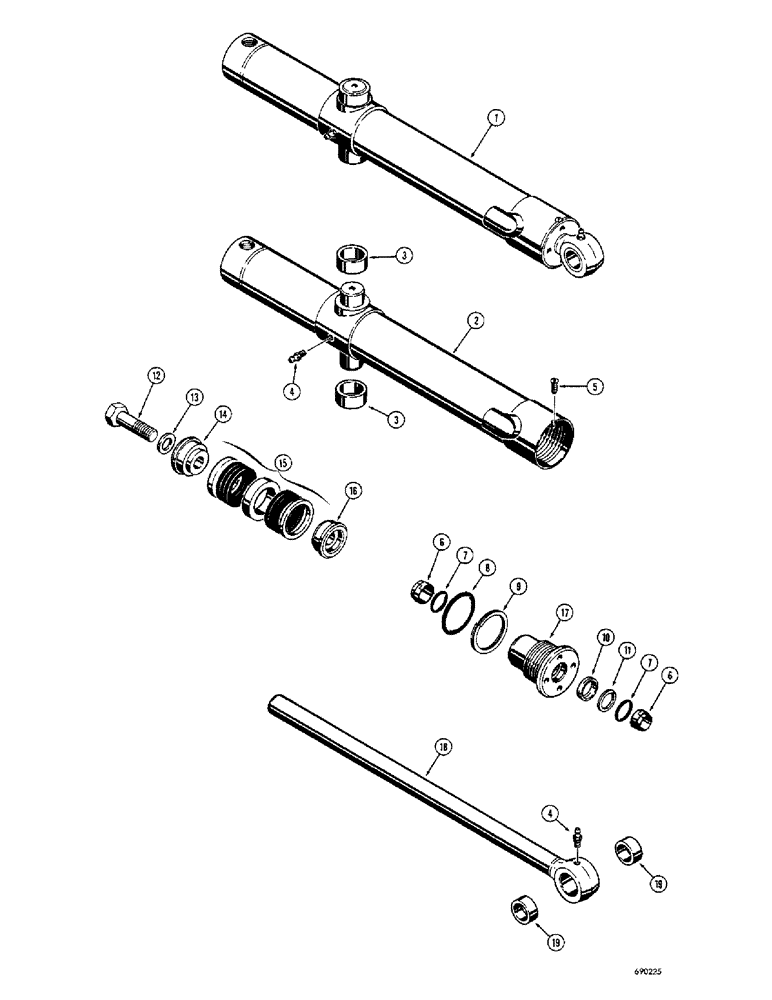

Запчасти Case 310G (222) - LOADER DUMP CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER, USES BEFORE TRACTOR SERIAL NO. 3042702 (07) - HYDRAULIC SYSTEM

1

D33113

CYLINDER ASSY.

CYLINDER - dump, R.H. (2-1/2" I.D. x 20" stroke)

1шт.

1

D33114

CYLINDER - dump, L.H. (2-1/2" I.D. x 20" stroke)

1шт.

2

D33115

TUBE - cylinder, R.H.

1шт.

D33116

TUBE - cylinder, L.H.

1шт.

3

D31511

BUSHING

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27856

RING

- backup, gland seal

1шт.

10

D36969

CUP

SEAL - rod

1шт.

11

D28498

RING

- backup rod seal

1шт.

12

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2"

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

15

D28373

PACKING

- piston

1шт.

16

D28363

PISTON

- split, eye end

1шт.

17

D45066

GLAND

- packing, (When stock is exhausted, use G32119 gland and D95142 wiper)

1шт.

18

D33118

PISTON ROD

ROD - piston (1-1/2" dia.)

1шт.

19

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod eye

2шт.

1

D49295

CYLINDER

- dump, R.H. (2-1/2" I.D. x 26-13/64" stroke), used on tractor serial no. 3042702 & after

1шт.

1

D49294

CYLINDER - dump, L.H. (2-1/2" I.D. x 26-13/64" stroke), used on tractor serial no. 3042702 & after

1шт.

2

D49293

BODY

TUBE - cylinder, R.H., used on tractor serial no. 3042702 & after

1шт.

D49292

TUBE - cylinder, L.H., used on tractor serial no. 3042702 & after

1шт.

3

D31511

BUSHING

- tube, used on tractor serial no. 3042702 & after

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), used on tractor serial no. 3042702 & after

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", used on tractor serial no. 3042702 & after

1шт.

6

D27706

WIPER SEAL

WIPER - rod, used on tractor serial no. 3042702 & after

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used), used on tractor serial no. 3042702 & after

2шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, used on tractor serial no. 3042702 & after

1шт.

9

D27856

RING

- backup, gland seal, used on tractor serial no. 3042702 & after

1шт.

10

D36969

CUP

SEAL - rod, used on tractor serial no. 3042702 & after

1шт.

11

D28498

RING

- backup, rod seal, used on tractor serial no. 3042702 & after

1шт.

12

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", used on tractor serial no. 3042702 & after

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, used on tractor serial no. 3042702 & after

1шт.

14

D28364

PISTON

- split, bolt end, used on tractor serial no. 3042702 & after

1шт.

15

D28373

PACKING

- piston, used on tractor serial no. 3042702 & after

1шт.

16

D28363

PISTON

- split, eye end, used on tractor serial no. 3042702 & after

1шт.

17

D45066

GLAND

- packing, (When stock is exhuasted, use G32119 gland and D95142 wiper), used on tractor serial no. 3042702 & after

1шт.

18

D49290

PISTON ROD

ROD - piston (1-1/2" dia.), used on tractor serial no. 3042702 & after

1шт.

19

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod eye, used on tractor serial no. 3042702 & after

2шт.
