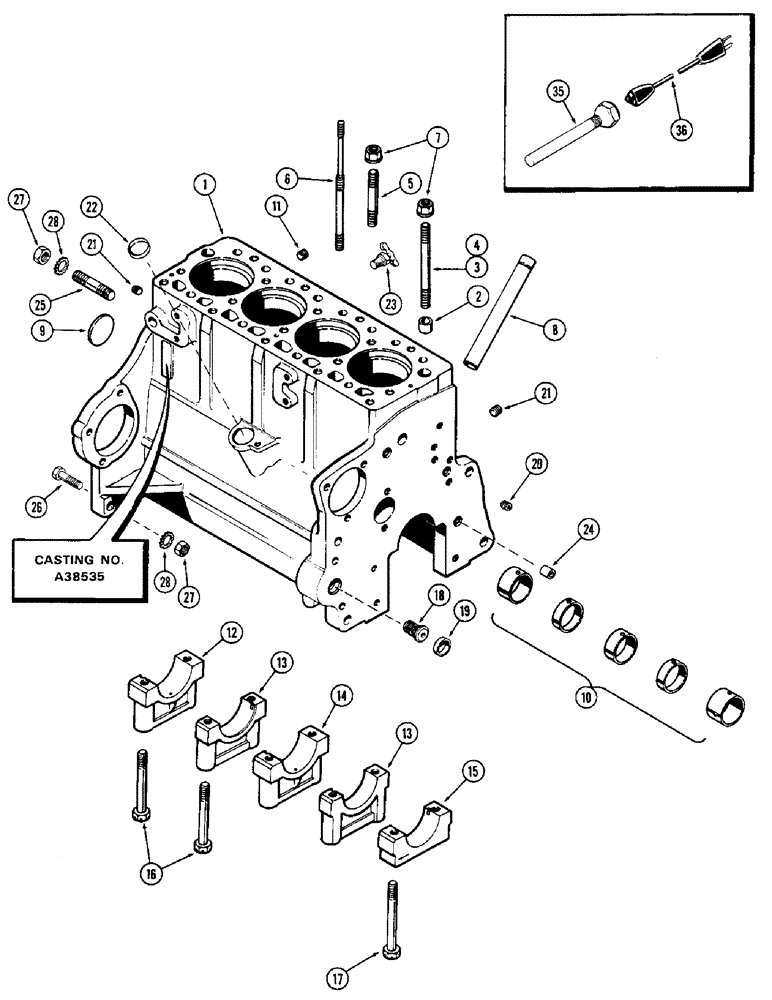

Запчасти Case 310G (009A) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, WITH OLD TYPE CYLINDER SLEVE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
A42211
SHORT BLOCK ASSY. - (Includes stripped block, camshaft, crankshaft & bearings, rear oil seal, pistons, rod & oil pump) (Order A42814 Figure 008)
1шт.
1
A41597
SKELETON ENGINE
BLOCK ASSY. - stripped (Casting No. A38535)
1шт.
2
G49608
RING
- dowel, Serial Range: head-block
2шт.
3
A36902
STUD
- head to block (1/2" N.C. x 5-5/8")
11шт.
4
A36905
STUD
- head to block (1/2" N.C. x 6")
2шт.
5
A36904
STUD
- head to block (1/2" N.C. x 4")
4шт.
6
A36903
STUD
- head & cover (3/8" N.C. x 1/2" N.C. x 9-7/16")
2шт.
7
A37030
FLANGE NUT
- flanged, head stud
19шт.
8
A37149
TUBE
- dipstick & oil filler
1шт.
9
A39241
PLUG,Exp, 2.12" dia
- rear (2-1/8" expansion type)
1шт.
10
A42746
CAM
BUSHING SET - camshaft (Pre-sized)
1шт.
11
221-1032
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
PLUG - pipe, 3/8" socket hd.
1шт.
12
A38385
CAP
- rear bearing, crankshaft
1шт.
13
G2128
CAP
- intermediate bearing, crankshaft
2шт.
14
G2127
CAP
- center bearing, crankshaft
1шт.
15
G2126
CAP
- front bearing, crankshaft
1шт.
17
113-445
BOLT
- bearing cap & oil pump (1/2 x 5-1/8")
2шт.
18
A153552
ADAPTER
- oil filter
1шт.
19
41-1016
PLUG,Cup, 1"
- filter adapter (1" cup type)
1шт.
20
G49070
PLUG
- drilled, front (1/4" P.T.)
1шт.
21
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Oil gallery Hex Soc, 1/4"-18 NPTF
2шт.
22
A38534
PLUG
- tach. drive opening (1" cup type)
1шт.
23
A23656
COCK, DRAIN
VALVE - drain, water
1шт.
24
A29442
RING
- dowel, timing gear cover
2шт.
25
A29363
STUD
- engine to clutch housing (5/8" N.C.-N.F. x 2-1/4")
2шт.
26
A30129
BOLT
- engine to housing (5/8 x 2-3/4" N.F.)
2шт.
27
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex.
4шт.
28
193-34
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
4шт.
35
A40637
HEATER ASSY.
- (w/cord), block
1шт.
36
A40477
ELECTRICAL WIRE
CORD - heater (7 ft. long), block
1шт.
Выбрано товаров: 31
