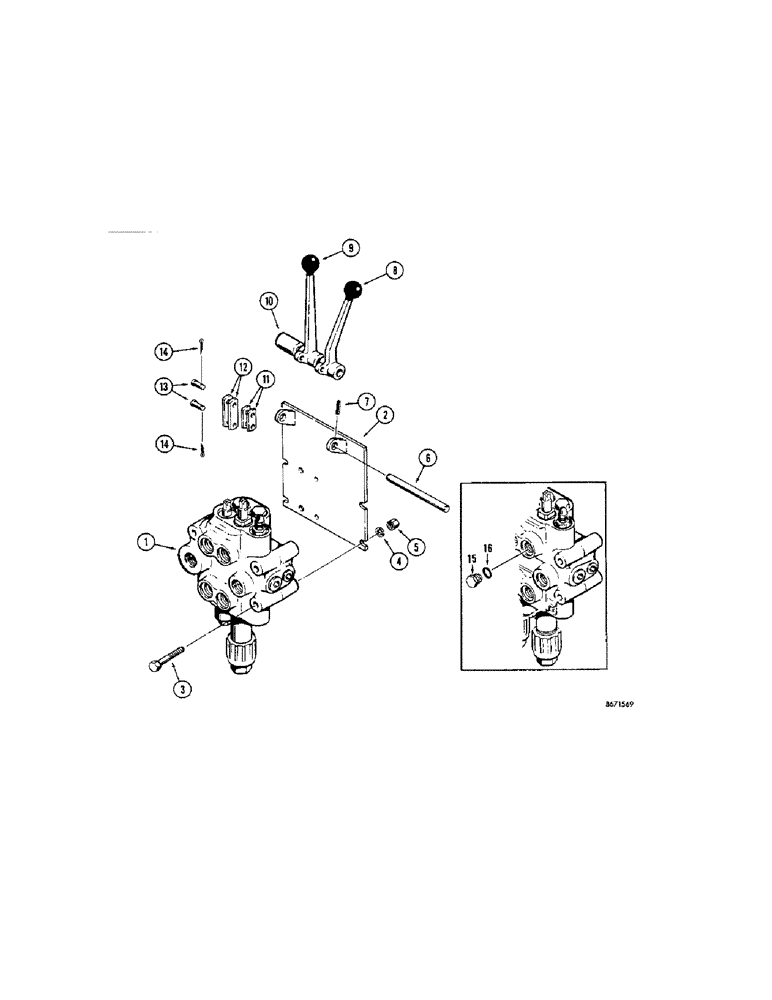

Запчасти Case 310G (212[1]) - EQUIPMENT CONTROL VALVES AND LEVERS (TWO LEVERS - TWO SPOOLS) (07) - HYDRAULIC SYSTEM

1

D45037

VALVE

- two spool (Use on drawbar with three point hitch and mechanical angling dozer with ripper, pull behind hydraulics or three point hitch) Parts list Figure 262

1шт.

2

D38088

BRACKET - lever mounting

1шт.

3

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

6

D33251

SHAFT

- lever mounting

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

8

D33256

LEVER - valve control, L.H.

1шт.

9

D33254

LEVER - valve control, R.H.

1шт.

10

D33252

SPACER - lever

1шт.

11

D25483

LINK

- L.H. lever (Short)

2шт.

12

D38089

LINK

- R.H. lver (Long)

2шт.

13

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

14

135-25

PIN - cotter (3/32" x 5/8") 7/64" x 3/8", Type A

4шт.

15

86512512

PLUG,7/8" - 14 ORB

Valve port (If used) Hex Hd, 7/8"-14 ORB

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
