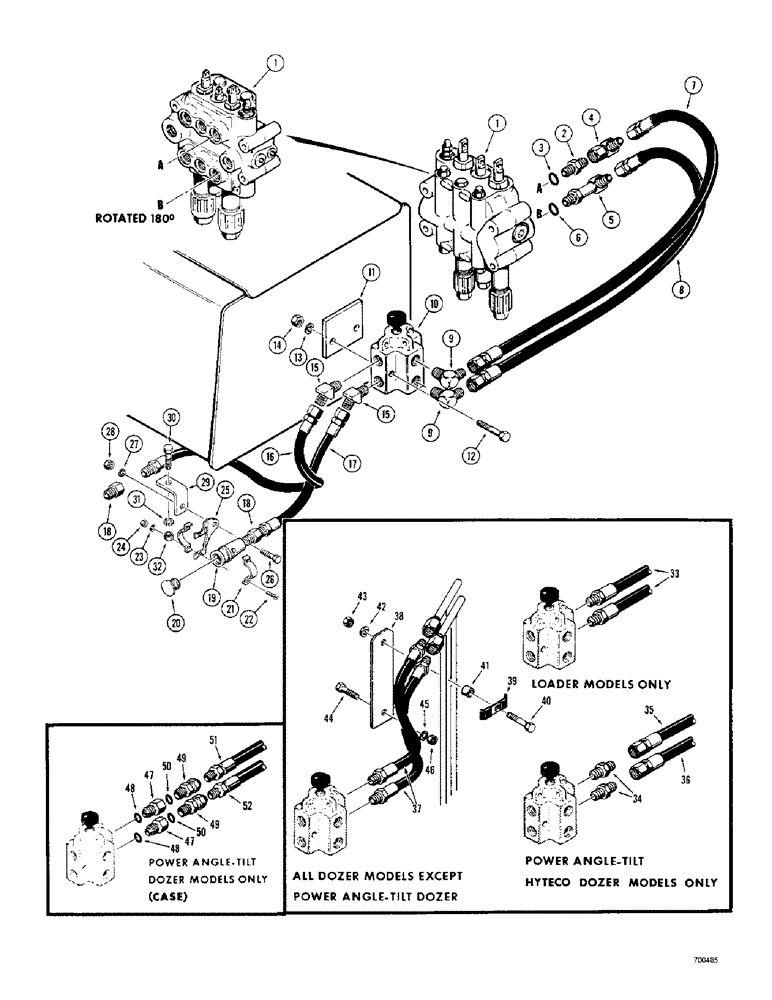

Запчасти Case 310G (210) - PULL BEHIND HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 212 thru 216 for proper valve)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

50003

ELBOW

- special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D39222

HOSE - control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

HOSE - control valve to diversion valve (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

- diversion (Parts list page 248)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees

2шт.

16

D28106

HOSE - diversion valve to pull behind coupling (19-1/2" long)

1шт.

17

D39223

HOSE - diversion valve to pull behind coupling (13-3/4" long)

1шт.

18

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- special

2шт.

19

A28542

COUPLING, QUICK, FEM

COUPLING - pull behind, female (Parts list Figure 250)

2шт.

A28541

COUPLING, BREAK AWAY

COUPLING - pull behind, male (Parts list Figure 250)

2шт.

20

A22768

PLUG

- dust

2шт.

21

A27423

CLAMP

- pull behind coupling

4шт.

22

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - No. 8 - 32 NC x 5/8"

4шт.

23

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

24

129-6

NUT,#8-32

4шт.

25

A27360

BRACKET

- mounting

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

29

D39226

BRACKET - mounting, pull behind couplings

1шт.

30

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

31

92-7

LOCK WASHER,7/16"

1шт.

32

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

1шт.

33

D20193

HOSE - diversion valve (26" long) Standard loaders only

2шт.

34

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight

2шт.

35

D39221

HOSE - diversion valve to lift cylinder - closed end (47-1/2" long) Hyteco power angle-tilt dozer only

1шт.

36

D39220

HOSE ASSY.

HOSE - diversion valve to lift cylinder - rod end (43" long) Hyteco power angle-tilt dozer only

1шт.

37

D39224

HOSE - diversion valve to lift cylinder tubes (12-1/2" long) Use on all dozer models except power angle-tilt dozer

2шт.

38

D39225

BRACKET - mounting, tube clamp

1шт.

39

R17319

CLAMP

PLATE - clamp, tube

1шт.

40

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

41

D33552

BUSHING

SPACER - tube clamp

1шт.

42

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

47

218-5040

ADAPTER

- straight

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

D37118

ADAPTER

- special

2шт.

51

D46472

HOSE

- diversion valve to angle cylinder (124" long) Case power angle tilt-dozer only

1шт.

52

D46471

TUBE ASSY.

HOSE - diversion valve to angle cylinder (124" long) Case power angle-tilt dozer only

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
