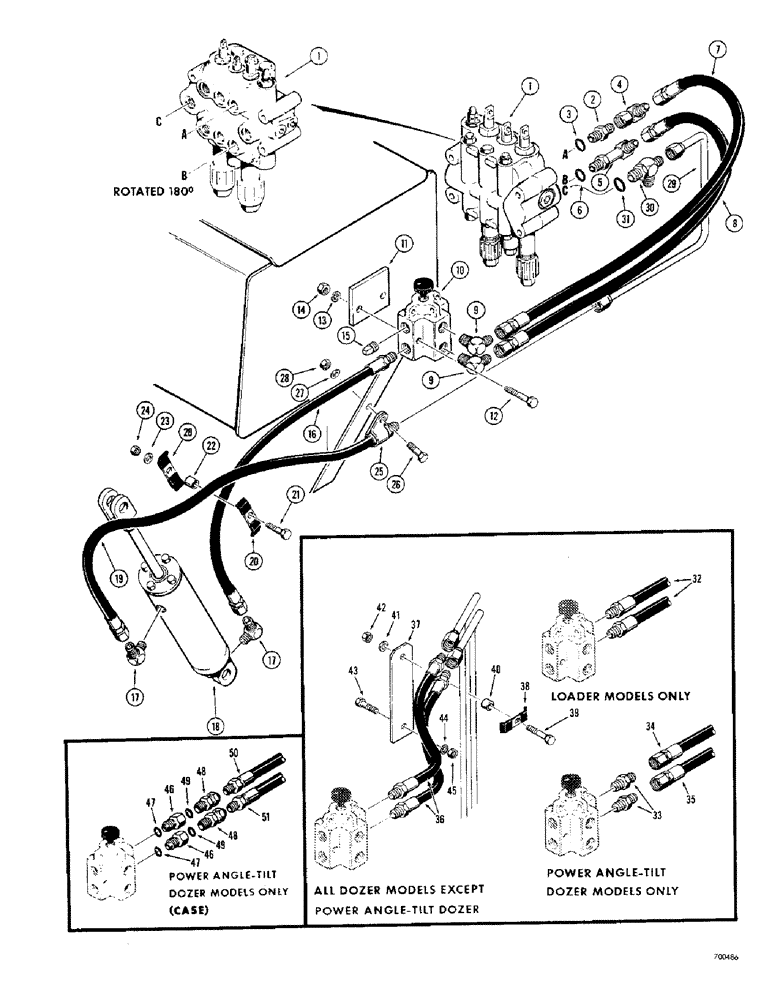

Запчасти Case 310G (206) - THREE POINT HITCH HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 212 thru 216 for proper valve)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

50003

ELBOW

- special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D39222

HOSE - control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

HOSE - control valve to diversion valve (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

- diversion (Parts list page 248)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

221-15

PLUG,Sq Hd, 3/4"-14

- square head (3/4" NPT)

1шт.

16

D34462

HOSE

- hydraulic cylinder, closed end (43-3/4" long)

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees

2шт.

18

A11231

CYLINDER

- hydraulic, three point hitch (Parts list Figure 242)

1шт.

19

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- hydraulic cylinder, rod end (40" long)

1шт.

20

D33316

CLAMP

PLATE - clamp, hose

2шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

D33829

BUSHING

SPACER - hose clamp

1шт.

23

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

25

R11405

CLAMP

- hose

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

29

D33934

TUBE - hydraulic cylinder, rod end to control valve

1шт.

30

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

- male, adjustable

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

D20193

HOSE - diversion valve (26" long) Standard loader only

2шт.

33

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight

2шт.

34

D39221

HOSE - diversion valve to lift cylinder - closed end (47-1/2" long) Use on hyteco power angle-tilt dozer

1шт.

35

D39220

HOSE ASSY.

HOSE - diversion valve to lift cylinder - rod end (43" long) Use on hyteco power angle-tilt dozer

1шт.

36

D39224

HOSE - diversion valve to lift cylinder tubes (12-1/2" long) Use on all dozer models except power angle-tilt dozer

2шт.

37

D39225

BRACKET - mounting, tube clamp

1шт.

38

R17319

CLAMP

PLATE - clamp, tube

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

40

D33552

BUSHING

SPACER - tube clamp

1шт.

41

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

46

218-5040

ADAPTER

- straight

2шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

48

D37118

ADAPTER

- special

2шт.

50

D46472

HOSE

- diversion valve to angle cylinder (124" long) Case power angle-tilt dozer

1шт.

51

D46471

TUBE ASSY.

HOSE - diversion valve to angle cylinder (124" long) Case power angle-tilt dozer

1шт.

49

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
