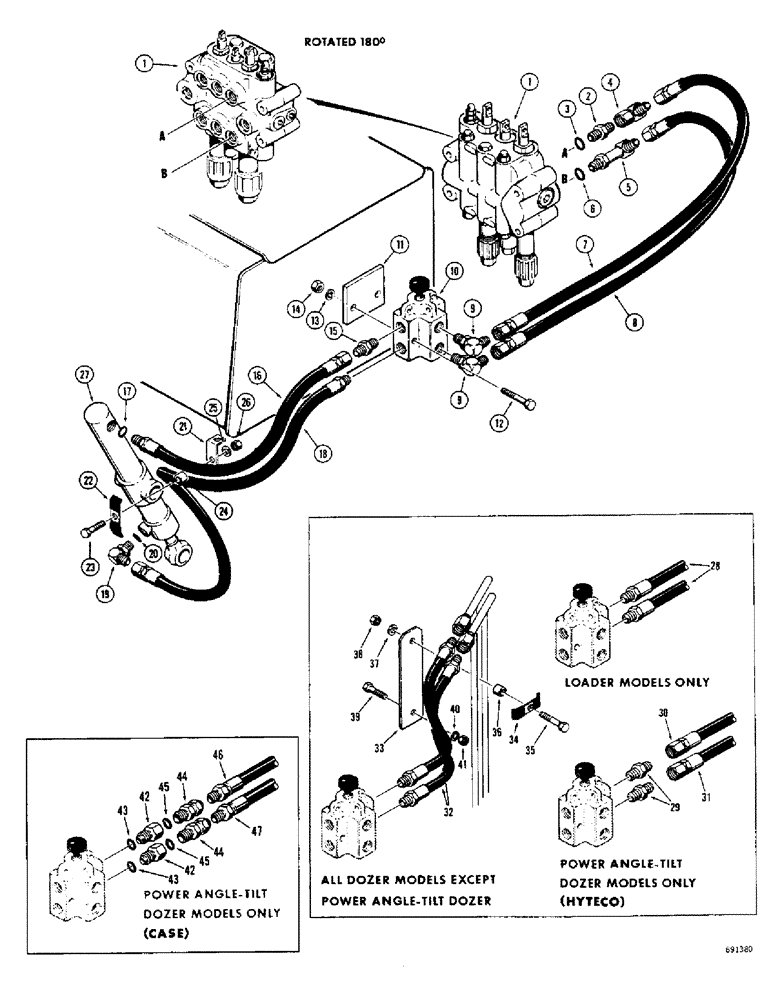

Запчасти Case 310G (198) - RIPPER HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See Figures 212, 214 and 216 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

50003

ELBOW

- special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D39222

HOSE - control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

HOSE - control valve to diversion valve (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

- diversion (Parts list Figure 248)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight

1шт.

16

D34427

HOSE - valve to ripper cylinder - closed end (37-1/2" long)

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

D34462

HOSE

- valve to ripper cylinder - rod end (43-3/4" long)

1шт.

19

R20839

FITTING

ELBOW - special

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

D34425

BRACKET - mounting, hose clamp

1шт.

22

D33316

CLAMP

PLATE - clamp, hose

1шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

D33829

BUSHING

SPACER - clamp

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

27

REF

INSTRUCTION

CYLINDER - ripper (See Figures 240 and 241A for cylinders)

1шт.

28

D20193

HOSE - diversion valve to crossover tubes (26" long) Loader models

2шт.

29

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight (D39221 and D39220 hose only)

2шт.

30

D39221

HOSE - diversion valve to lift cylinder - closed end (47-1/2") long) Used on hyteco power angle-tilt dozers only

1шт.

31

D39220

HOSE ASSY.

HOSE - diversion valve to lift cylinder - rod end (43" long) Used on hyteco power angle-tilt dozers only

1шт.

32

D39224

HOSE - diversion valve to lift cylinder tubes (12-1/2" long) Use on all dozer models except power angle-tilt dozer

2шт.

33

D39225

BRACKET - mounting, tube clamp

1шт.

34

R17319

CLAMP

PLATE - clamp, tube

1шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

36

D33552

BUSHING

SPACER - tube clamp

1шт.

37

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

42

218-5040

ADAPTER

- straight (Use on D46472 and D46471 hoses only)

2шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

D37118

ADAPTER

- special (D46472 and D46471 hoses only)

2шт.

46

D46472

HOSE

- diversion valve to angle cylinder (124" long) Case power angle-tilt dozers only

1шт.

47

D46471

TUBE ASSY.

HOSE - diversion valve to angle cylinder (124" long) Case power angle-tilt dozers only

1шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
