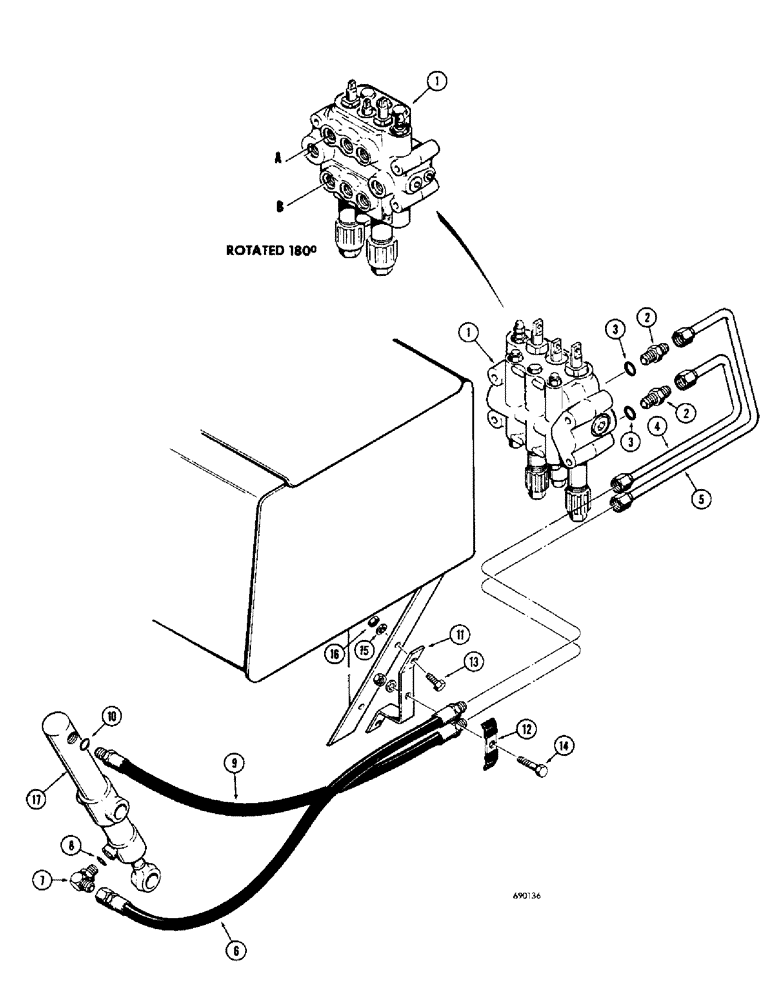

Запчасти Case 310G (196) - RIPPER HYDRAULICS, (MODELS WITHOUT DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See Figures 212, 214 and 216 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D38147

TUBE - lower control valve port to ripper cylinder - rod end

1шт.

5

D38145

TUBE - upper control valve port to ripper cylinder - closed end

1шт.

6

D23030

HOSE

- lower control valve port to ripper cylinder - rod end (36-1/2" long)

1шт.

7

R20839

FITTING

ELBOW - special

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

D33516

HOSE ASSY.

HOSE - valve to cylinder (27" long) Used on D31185 cylinder

1шт.

9

D52261

HOSE

- valve to cylinder (32" long) Used on G32480 cylinder

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

D38331

BRACKET - mounting, hose clamp

1шт.

12

D33316

CLAMP

PLATE - clamp, hose

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

17

REF

INSTRUCTION

CYLINDER - ripper (See Figures 240 and 241A for cylinders)

1шт.
