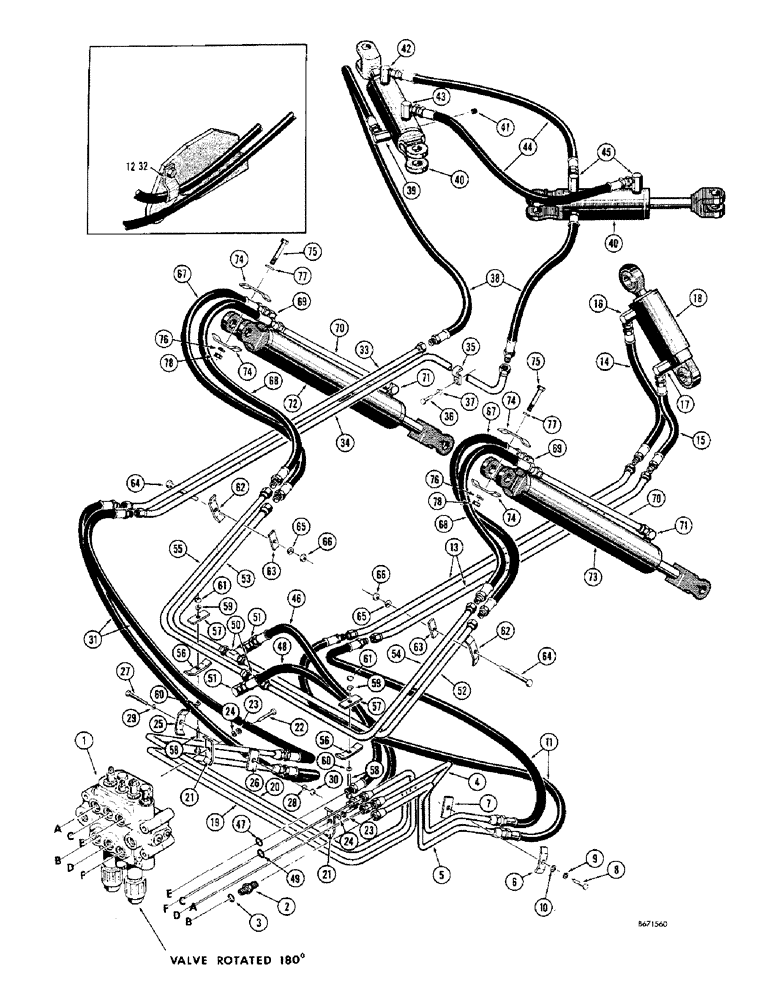

Запчасти Case 310G (184) - POWER ANGLE-TILT DOZER HYDRAULICS (HYTECO) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) (See Figure 216 for proper valve)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - angle and tilt cylinder ports

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D40150

TUBE - upper valve port to lower tilt cylinder port

1шт.

5

D40149

TUBE - lower valve port to upper tilt cylinder port

1шт.

6

D38732

CLAMP - tilt cylinder tubes, at valve

1шт.

7

D38733

SPACER - tube clamp

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

11

D38801

HOSE ASSY.

HOSE - to tilt cylinder (36" long)

2шт.

12

D38731

CLAMP - tilt cylinder hoses

1шт.

13

D38782

TUBE - to tilt cylinder

2шт.

14

D38788

HOSE ASSY.

HOSE - tilt cylinder upper port (18" long)

1шт.

15

D38790

HOSE - tilt cylinder lower port (12-1/2" long)

1шт.

16

218-960

PIVOT ASSY.

ELBOW - tilt cylinder upper port

1шт.

17

218-935

45 ELBOW,45 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- tilt cylinder lower port

1шт.

18

D38727

CYLINDER - tilt, 3-1/2" dia. x 2-9/16" stroke (Parts list Figure 238)

1шт.

19

D40152

TUBE - upper valve port to rear port of L.H. angle cylinder

1шт.

20

D40151

TUBE - lower valve port to rear port of R.H. angle cylinder

1шт.

21

D38732

CLAMP - angle cylinder tubes to heel plate

2шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

25

D38732

CLAMP - angle cylinder tubes at L.H. side of crawler

1шт.

26

D38733

SPACER - tube clamp

1шт.

27

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

31

D38802

HOSE - to angle cylinders (43" long)

2шт.

32

D38731

CLAMP - angle cylinder hoses

1шт.

33

D38780

TUBE - to L.H. angle cylinder

1шт.

34

D38781

TUBE - to R.H. angle cylinder

1шт.

35

D38722

CLAMP - tube at R.H. angle cylinder to front of "C" frame

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

D38789

HOSE

- to rear port of angle cylinders (20" long)

2шт.

39

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- L.H. angle cylinder, rear inlet

1шт.

40

D38726

CYLINDER - angle, 3" dia. x 8" stroke (Parts list Figure 238)

2шт.

41

221-843

PLUG,Hex Soc, 3/8"-18

- Allen head, countersunk (3/8" NPT)

2шт.

42

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- L.H. angle cylinder, front

1шт.

43

D38756

ELBOW - L.H. angle cylinder, rear crossover

1шт.

44

D38793

HOSE - angle cylinder crossover (22" long)

2шт.

45

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- R.H. angle cylinder (Front and rear ports)

2шт.

46

D40153

HOSE - upper valve port to lift cylinder manifold (Extend)

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

48

D38804

HOSE - lower valve port to lift cyl. manifold (Ret.) 35" long

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

50

218-574

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- lift cylinder manifold tubes

2шт.

51

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- lift cylinder manifold tubes

2шт.

52

D38778

TUBE - lift cylinder manifold, R.H. (Extend)

1шт.

53

D38779

TUBE - lift cylinder manifold, L.H. (Extend)

1шт.

54

D38776

TUBE - lift cylinder manifold, R.H. (Retract)

1шт.

55

D38777

TUBE - lift cylinder manifold, L.H. (Retract)

1шт.

56

D38732

CLAMP - lift cylinder manifold tubes

2шт.

57

D38733

SPACER - lift cylinder manifold tubes

2шт.

58

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

59

92-5

LOCK WASHER,5/16"

2шт.

60

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

62

D38732

CLAMP - lift cylinder manifold tubes

2шт.

63

D38733

SPACER - tube clamp

2шт.

64

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

2шт.

65

92-7

LOCK WASHER,7/16"

2шт.

66

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

67

D38792

HOSE - to lift cylinder rear port (22" long)

2шт.

68

D38791

HOSE - to lift cylinder front port (22" long)

2шт.

69

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- lift cylinder rear port

2шт.

70

D38783

TUBE - to lift cylinder front port

2шт.

71

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- lift cylinder front port

2шт.

72

D38724

CYLINDER - lift, L.H. (3" dia. x 17-3/4" stroke) parts list Figure 240

1шт.

73

D38725

CYLINDER - lift, R.H. (3" dia. x 17-3/4" stroke) parts list Figure 240

1шт.

74

D38732

CLAMP - lift cylinder hose

4шт.

75

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

76

92-5

LOCK WASHER,5/16"

2шт.

77

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

78

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.
