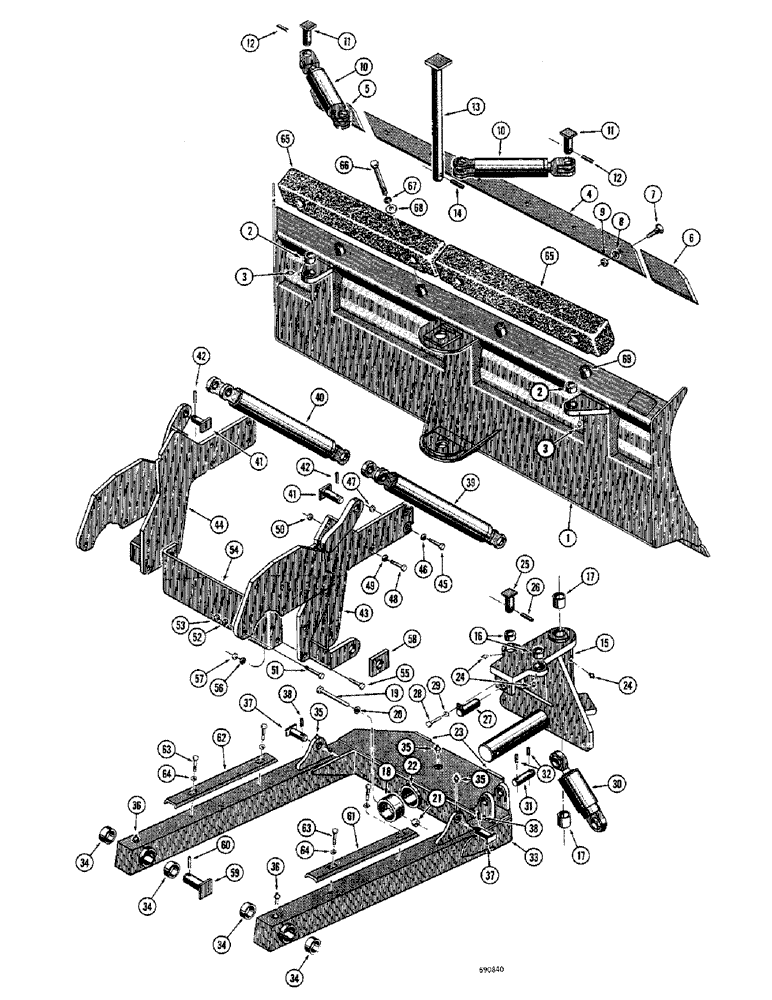

Запчасти Case 310G (180) - POWER ANGLE-TILT DOZER (HYTECO) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D38710
MOLDBOARD - power angle-tilt dozer
1шт.
2
D38734
BUSHING
- angle cylinder mount
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
4
D38711
EDGE - cutting center
1шт.
5
D38713
EDGE
- cutting, L.H.
1шт.
6
D38712
BELT
EDGE - cutting, R.H.
1шт.
7
19-1032
BOLT,5/8" - 11 x 2", Gr 5
- plow, 5/8" - 11 NC x 2"
10шт.
9
25-1010
NUT,5/8"-11, G5
10шт.
10
D38726
CYLINDER - hydraulic, angling (Parts list Figure 238)
2шт.
11
D38729
PIN - angle, Serial Range: cylinder-moldboard
2шт.
12
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
13
D38714
PIN - moldboard to tilt post
1шт.
14
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
1шт.
D38716
X
KIT - tilt post repair
1шт.
15
D38736
POST - tilt
1шт.
16
D38734
BUSHING
- angle cylinder mount
2шт.
17
D38806
BUSHING
- blade pivot
2шт.
18
D38737
RING - tilt post lock
1шт.
19
14-1668
HHCS - 1" - 12 NF x 5-1/2"
1шт.
20
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
21
25-116
NUT,Hex, 3/8"-24, G5
- hex., 1" - 12 NF
1шт.
22
D38738
BEARING - tilt post
1шт.
23
D38739
WEAR PLATE - "C" frame
2шт.
24
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
3шт.
25
D38729
PIN - angle cylinder to tilt post
2шт.
26
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
27
D38730
PIN - tilt cylinder to tilt post
1шт.
28
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
29
92-6
LOCK WASHER,3/8"
1шт.
30
D38727
CYLINDER - hydraulic, tilt (Parts list Figure 238)
1шт.
31
D38728
PIN - tilt cylinder to "C" frame
1шт.
32
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
33
D38715
"C" FRAME - power angle-tilt dozer
1шт.
34
D38735
BELT
BUSHING - lift arm
4шт.
35
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
3шт.
36
219-5
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
37
D38723
PIN - lift cylinder to "C" frame
2шт.
38
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
39
D38725
CYLINDER - hydraulic, R.H. lift (Parts list Figure 240)
1шт.
40
D38724
CYLINDER - hydraulic, L.H. lift (Parts list Figure 240)
1шт.
41
D38723
PIN - lift cylinder to mounting bracket
2шт.
42
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
43
D38717
BRACKET - mounting, R.H.
1шт.
44
D38718
BRACKET - mounting, L.H.
1шт.
46
193-14
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
6шт.
47
25-1110
NUT,5/8"-18, G5
- hex., 5/8" - 18 NF
6шт.
48
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
2шт.
49
193-14
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
2шт.
50
25-1110
NUT,5/8"-18, G5
- hex., 5/8" - 18 NF
2шт.
51
14-1236
BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd
HHCS - 3/4" - 16 NF x 2-1/4"
6шт.
52
193-15
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
6шт.
53
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF)
6шт.
54
D38719
BRACE - cross
1шт.
56
193-14
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
4шт.
57
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
4шт.
58
D38720
PAD - mounting
2шт.
59
D38721
PIN - "C" frame mounting
2шт.
60
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
2шт.
61
D39445
SHIELD - tube, R.H.
1шт.
62
D39446
SHIELD - tube, L.H.
1шт.
63
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
64
92-6
LOCK WASHER,3/8"
4шт.
65
D35480
COUNTERWEIGHT - dozer/backhoe (200 lbs.), power angle tilt
2шт.
66
13-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
Counterweights for power angle tilt dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5
4шт.
67
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Counterweights for power angle tilt dozer/backhoe 3/4"
4шт.
68
95-12
WASHER,3/4"
- std. wrot (), counterweights for power angle tilt dozer/backhoe 3/4"
4шт.
69
D35481
BOSS - mounting, counterweights for power angle tilt dozer/backhoe
4шт.
