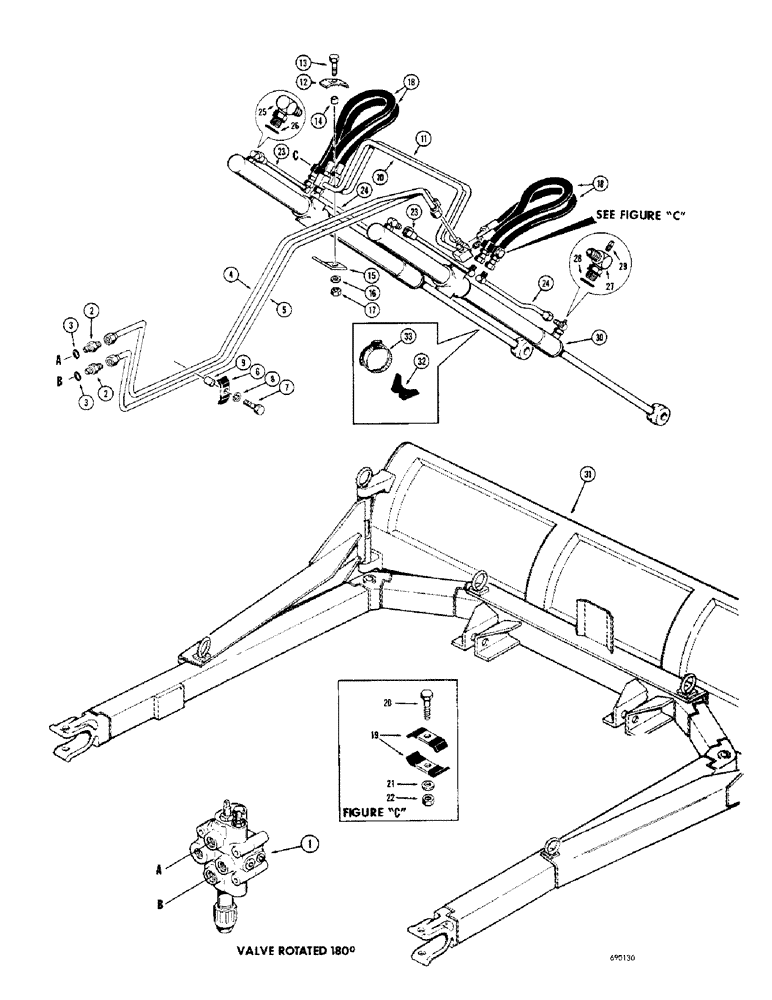

Запчасти Case 310G (166) - DOZER HYDRAULICS (LIFT CIRCUIT), USED ON ALL DOZERS EXCEPT MODELS W/ HYTECO DOZER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See Figures 212, 214 and 216 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D38158

TUBE - upper control valve port to lift cylinder - closed end

1шт.

5

D38156

TUBE - lower control valve port to lift cylinder - rod end

1шт.

6

D33316

CLAMP

PLATE - clamp, tube

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

D33552

BUSHING

SPACER - clamp

1шт.

10

D36077

TUBE

- crossover, lift cylinder - closed end

1шт.

11

D36078

TUBE

- crossover, lift cylinder - rod end

1шт.

12

32978

PLATE ASSY.

PLATE - clamp, tube

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

14

D33552

BUSHING

SPACER - clamp

2шт.

15

D26751

BRACKET - mounting

2шт.

16

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

18

D26792

HOSE - crossover tube to lift cylinder (26" long)

4шт.

19

A33316

PLATE - clamp, hose (All models except power angle-tilt models)

4шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

21

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

23

D27785

TUBE - cylinder, closed end (Mechanical angling dozer)

2шт.

D28214

TUBE - cylinder, closed end (Power angling dozer)

2шт.

D30605

TUBE - cylinder, closed end (Power tilt dozer)

2шт.

D46639

TUBE - cylinder, closed end (Power angle-tilt dozer)

2шт.

24

D27783

TUBE - cylinder, rod end (Mechanical angling dozer)

2шт.

D28216

TUBE - cylinder, rod end (Power angling dozer)

2шт.

D30607

TUBE - cylinder, rod end (Power tilt dozer)

2шт.

D46637

TUBE - cylinder, rod end (Power angle-tilt dozer)

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

3шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

R19576

FITTING

ELBOW - special

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" NPT)

1шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, lift (See Figures 226, 227A and 228 for proper cylinders)

2шт.

31

16741

MOLDBOARD - mechanical angling dozer (See Figure 164)

1шт.

31

D51971

MOLDBOARD - power angling dozer (See Figure 168)

1шт.

31

D25701

MOLDBOARD - power tilt dozer (See Figure 174)

1шт.

31

D45867

MOLDBOARD - power angle-tilt dozer (See Figure 188)

1шт.

32

D38648

BLOCK

SADDLE - rubber (Power angle-tilt dozer)

4шт.

33

214-34

X

CLAMP - tube (Power angle-tilt dozer)

4шт.
