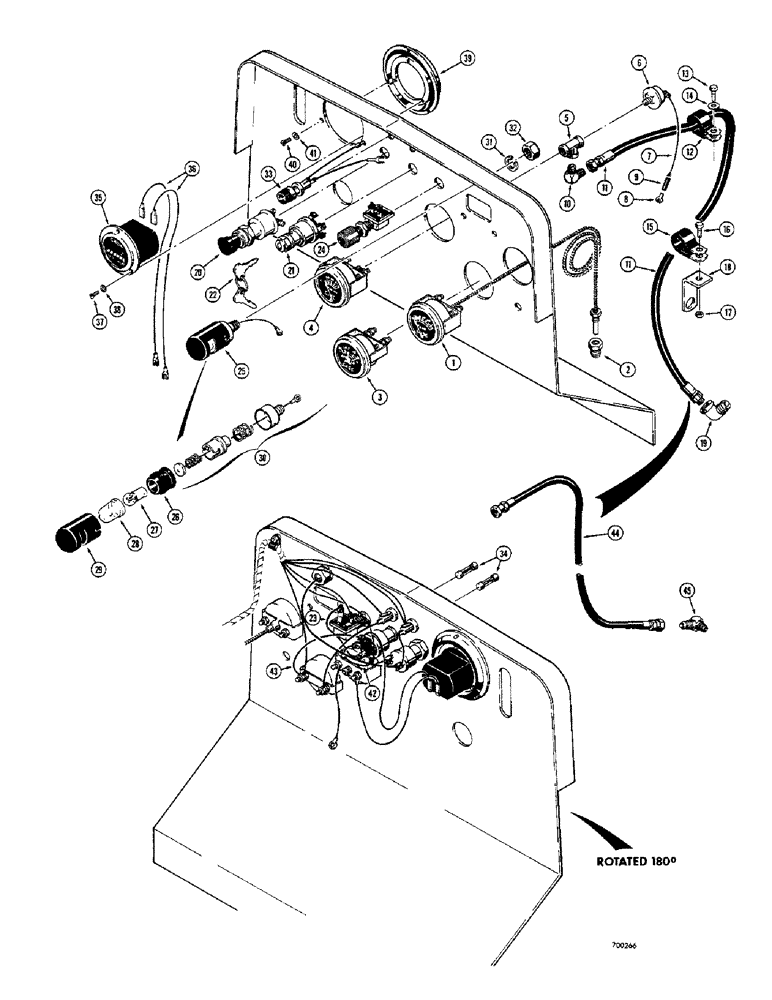

Запчасти Case 310G (090) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

11284

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

2

D26015

FITTING

ADAPTER - temperature sending unit

1шт.

3

R18748

AMMETER

1шт.

4

D22853

GAUGE

- engine oil pressure (Diesel models only)

1шт.

A30326

GAUGE

- oil pressure (Gas models only)

1шт.

5

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

6

D28798

SWITCH

OIL PRESSURE SWITCH

1шт.

7

D28797

ELECTRICAL WIRE

WIRE - oil pressure switch

7шт.

8

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire

1шт.

9

223-83

SLEEVE

- terminal

1шт.

10

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees, male

1шт.

11

D95004

HOSE

- oil pressure gauge, used before tractor SN 3040339 (For service use D95114 hose and 218-441 connector)

1шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- hose (Use existing hardware on diesel models)

1шт.

13

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(Gas models only) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

14

195-21

WASHER,5/16"

- plain (1/2") Gas models only

1шт.

15

49838

CLAMP

- hose (Use existing hardware on gas models)

1шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2" (Diesel models only)

1шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" - 16 NC) Diesel models only

1шт.

18

D47967

BRACKET - hose clamp mounting

1шт.

19

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, pipe 90º, 1/8"-27, NPT

1шт.

20

D35065

SWITCH

- light

1шт.

21

D35092

SWITCH

- electrical

1шт.

22

D36822

KEY

- switch (Set of two)

1шт.

23

A11777

WIRE - electrical switch to push button starter switch

1шт.

24

D40459

SWITCH

- push button, starting

1шт.

25

D33212

INTERIOR LIGHT

DASH LIGHT ASSEMBLY - complete

1шт.

26

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

27

71421

BULB,R5W, 12V, 5W

- light

1шт.

28

R22232

SIGHTGLASS

LENS - dash light

1шт.

29

R22237

COVER

- dash light

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - dash light

1шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - lock, hex. (5/8" - 18 NF)

1шт.

33

A22874

HOLDER

- fuse

2шт.

34

233-25

FUSE - A.G.C. 25 amp.

1шт.

D39286

GAUGE

KIT - engine hourmeter

1шт.

35

NSS

NOT SOLD SEPARAT

METER - hour, engine

1шт.

36

D39285

ELECTRICAL WIRE

WIRE - lead (36" long)

2шт.

D39284

KIT

PACKET - hardware

1шт.

37

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - No. 6 - 32 NC x 1/2"

3шт.

38

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

39

D35079

DAMPER

DAMPENER - vibration

1шт.

40

173-20

RHMS - No. 6 - 32 NC x 1/2" (Zinc plated)

3шт.

41

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

42

NLS

NO LONGER SERVICED

WIRE - jumper, light switch to electrical switch

1шт.

43

71280

WIRE - jumper, ammeter to electrical switch

1шт.

44

D95114

HOSE

- oil pressure gauge, used on tractor serial no. 3040339 & after

1шт.

45

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

- 90 degrees, male, hoses used on tractor serial no. 3040339 & after

1шт.
