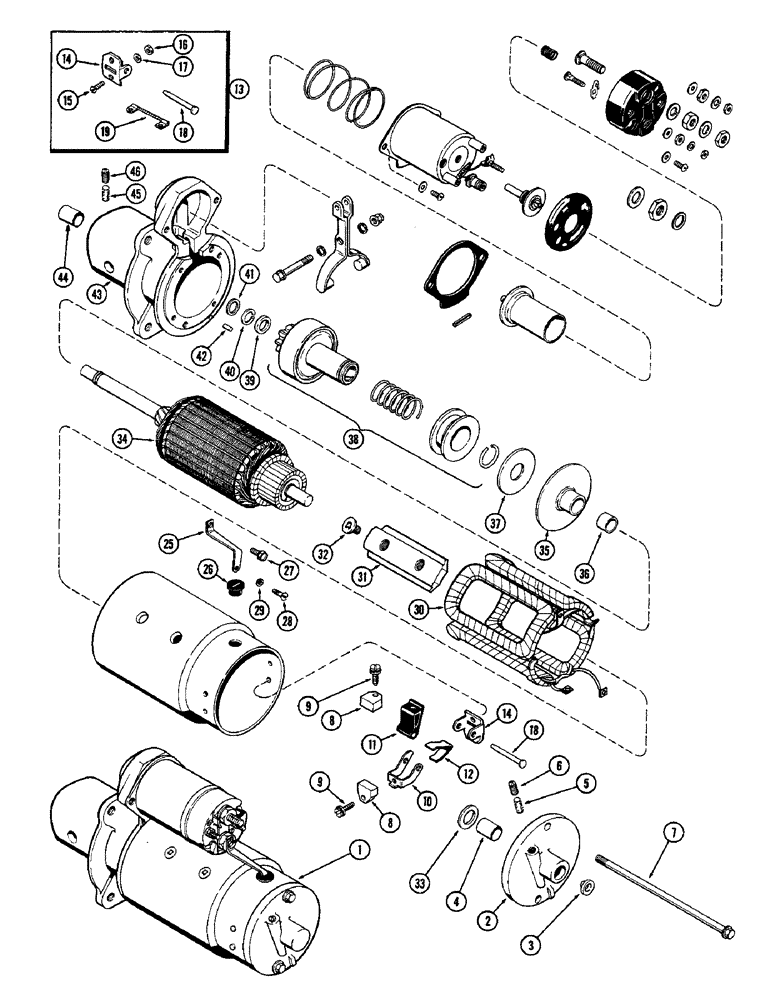

Запчасти Case 310G (086) - D39988 AND D45731 STARTER, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D45731
X
STARTER ASSY. - (Delco #1108688)
1шт.
1
D39988
X
STARTER ASSY. - (Delco #1107598) Order D45731
1шт.
1
104198A2R
REMAN-STARTER
Remanufactured Starter
1шт.
1
104198A1C
CORE-STARTER
Return Part Number
1шт.
1
104202A2R
REMAN-STARTER
Remanufactured Starter
1шт.
1
104202A1C
CORE-STARTER
Return Part Number
1шт.
2
A25304
FRAME
HEAD ASSY. - commutator
1шт.
3
R15021
PLUG
PLUG - expansion
1шт.
4
R15020
BUSHING
BUSHING - armature shaft
1шт.
5
A41979
WICK
WICK - oil
1шт.
6
221-1041
PLUG
PLUG - oil hole, 1/8" P.T. headless slotted
1шт.
7
A25552
BOLT
BOLT - thru
2шт.
8
A25356
BRUSH, COMMUTATOR
BRUSH BRUSH - armature
4шт.
9
D32481
SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW
SCREW - brush (Includes lockwasher)
4шт.
10
A40217
HOLDER
HOLDER - brush ground
2шт.
11
R15027
HOLDER
HOLDER - brush insulating
2шт.
12
A25359
SPRING
SPRING - brush pressure
2шт.
13
A25379
KIT
SUPPORT KIT - brush holder
2шт.
14
NSS
NOT SOLD SEPARAT
SUPPORT - brush holder (Order A25379)
1шт.
15
173-212
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
SCREW - #10-24 x 1/2" rd. hd.
2шт.
16
R15032
X
NUT - support screw
2шт.
17
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
18
A41983
PIN
PIN - brush holder
1шт.
19
A42494
ELECTRICAL WIRE
WIRE LEAD - brush ground
1шт.
25
A40225
CONNECTOR, ELEC
CONNECTOR CONNECTOR - solenoid
1шт.
26
A41980
GROMMET
GROMMET - connector
1шт.
27
A42023
SCREW,#10 - 32 x 1/2"
SCREW -, Serial Range: connector-solenoid
1шт.
28
172-221
SCREW - conn. to lead, #10-32 x 7/16" rd. hd.
1шт.
29
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
1шт.
30
A25548
COIL
COIL ASSY. - field
1шт.
31
A25391
SHOE
SHOE - pole
4шт.
32
74-610
SCREW,3/8" - 24 x 5/8"
SCREW - shoe pole, 3/8 x 5/8" N.F. flat hd.
8шт.
33
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
WASHER - brake, commutator end
1шт.
34
A25547
ARMATURE
ARMATURE
1шт.
35
A40215
PLATE ASSY.
PLATE ASSY. - center bearing
1шт.
36
A42125
BUSHING
BUSHING - center bearing
1шт.
37
R15043
WASHER
WASHER - thrust, Serial Range: drive-bearing
1шт.
38
A41871
DRIVE
DRIVE ASSY. - starter
1шт.
39
R15049
COLLAR
COLLAR - stop, starter drive
1шт.
40
R15048
RING
RING - snap, collar
1шт.
41
A25385
WASHER
WASHER - thrust, starter drive
1шт.
42
R15041
SPARE PART PIN - locating, drive end
1шт.
43
A40226
FRAME
HOUSING ASSY. - drive end
1шт.
44
A25387
BEARING
BUSHING - armature shaft
1шт.
45
R15023
WICK
WICK - oil
1шт.
46
221-1041
PLUG
PLUG - oil hole, 1/8" P.T., headless slotted
1шт.
47
A40220
LEVER
LEVER - starter shift
1шт.
48
A40520
BOLT
STUD - pivot, shift lever
1шт.
49
425-145
JAM NUT,Jam, 5/16"-18, G5
NUT, , Pivot stud Jam, 5/16"-18, G5
1шт.
50
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
51
138-93
LOCK PIN,3/16" x 13/16", Slotted
Pin, 3/16" x 13/16", Slotted
1шт.
52
A40218
PLUNGER
PLUNGER - solenoid
1шт.
53
A42126
GASKET
GASKET - solenoid to drive housing
1шт.
55
G44891
SOLENOID
SOLENOID ASSY.
1шт.
56
A40221
SPRING
SPRING - plunger return
1шт.
57
NSS
NOT SOLD SEPARAT
CASE ASSY. - (Order G44891)
1шт.
58
A42061
SWITCH
CONTACT ASSY.
1шт.
59
A42059
SPRING
SPRING - return, contact
1шт.
60
A42060
HALF BLADE
BLADE - contact
1шт.
61
NSS
NOT SOLD SEPARAT
GASKET - cover
1шт.
62
NSS
NOT SOLD SEPARAT
COVER - solenoid
1шт.
63
R15015
X
NUT - copper, 3/8" N.C. hex.
2шт.
65
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
67
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
2шт.
68
173-201
SCREW,Rnd Hd, 1/4" - 20 x 1/2"
SCREW - solenoid to hsg., 1/4 x 1/2" N.C. rd. hd.
2шт.
69
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 68
