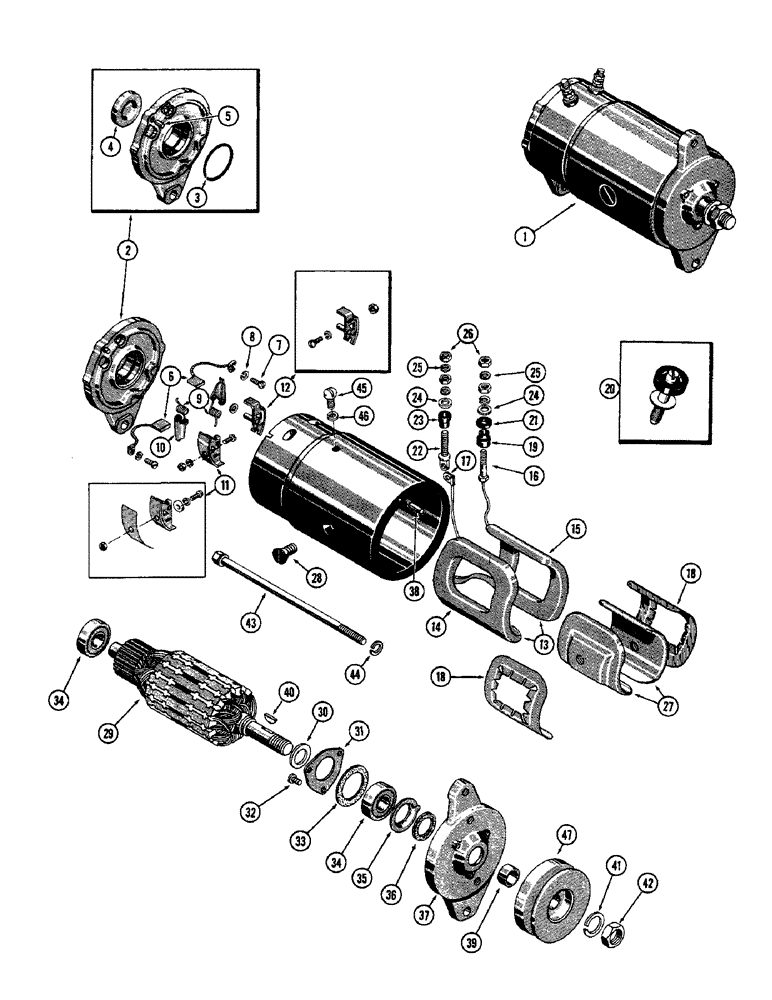

Запчасти Case 310G (082) - D34009 GENERATOR, (148B) SPARK IGNITION ENGINE, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

D34009

GENERATOR

ASSY. - (Delco #1102339)

1шт.

2

A25416

FRAME ASSY. - commutator end

1шт.

3

R15087

CLAMP - bearing

1шт.

4

A42032

PLUG - end

1шт.

5

R15095

PIN - locating

1шт.

6

R4286

BRUSH, COMMUTATOR

BRUSH - main (Set of 2)

1шт.

7

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush lead (#6-N.C. x 1/4" rd. hd.)

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

9

R16161

VALVE SPRING

SPRING - brush tension

2шт.

10

R15090

ARM

- brush

2шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - insulated, brush

1шт.

12

A40703

NOZZLE HOLDER

HOLDER ASSY. - ground, brush

1шт.

13

A40698

COIL

ASSY. - field

1шт.

14

NSS

NOT SOLD SEPARAT

FIELD - R.H.

1шт.

15

NSS

NOT SOLD SEPARAT

FIELD - L.H.

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 20)

1шт.

17

R16151

CLIP - armature terminal

1шт.

18

A25447

ISOLATOR

INSULATOR - field coil

2шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating (Order ref. 20)

1шт.

20

A40702

STUD

ASSY. - field term. (Includes bushing)

1шт.

21

R16148

WASHER

- insulating, field terminal

1шт.

22

A40701

STUD

- armature terminal

1шт.

23

R16147

BUSHING

- insulating, armature terminal

1шт.

24

R15079

WASHER

- plain, term. stud

2шт.

25

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

26

129-18

NUT,#12-24

- term. stud, #12-N.C. hex.

4шт.

27

A40736

SHOE - pole

2шт.

28

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoe, 3/8 x 5/8" N.C. flat hd.

2шт.

29

A25545

ARMATURE

1шт.

30

R15100

WASHER - spacer, armature drive end

1шт.

31

R15101

PLATE

- bearing retainer

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

- bearing plate

3шт.

33

R16170

GASKET

- bearing plate

1шт.

34

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - armature shaft

2шт.

35

R16169

LARGE PLATE

PLATE - retainer, felt washer

1шт.

36

R16168

WASHER

- felt

1шт.

37

A25444

FRAME - drive end

1шт.

38

R15041

PIN - locating

1шт.

39

R15099

COLLAR - spacer, pulley

1шт.

40

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

41

R16171

SPRING WASHER

- lock, pulley nut

1шт.

42

A25546

NUT

- pulley

1шт.

43

R15106

BOLT

- thru

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

174-217

SCREW - 1/4 x 5/16" N.F. rd. hd.

1шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

47

A25454

PULLEY

- drive (Order separately)

1шт.
