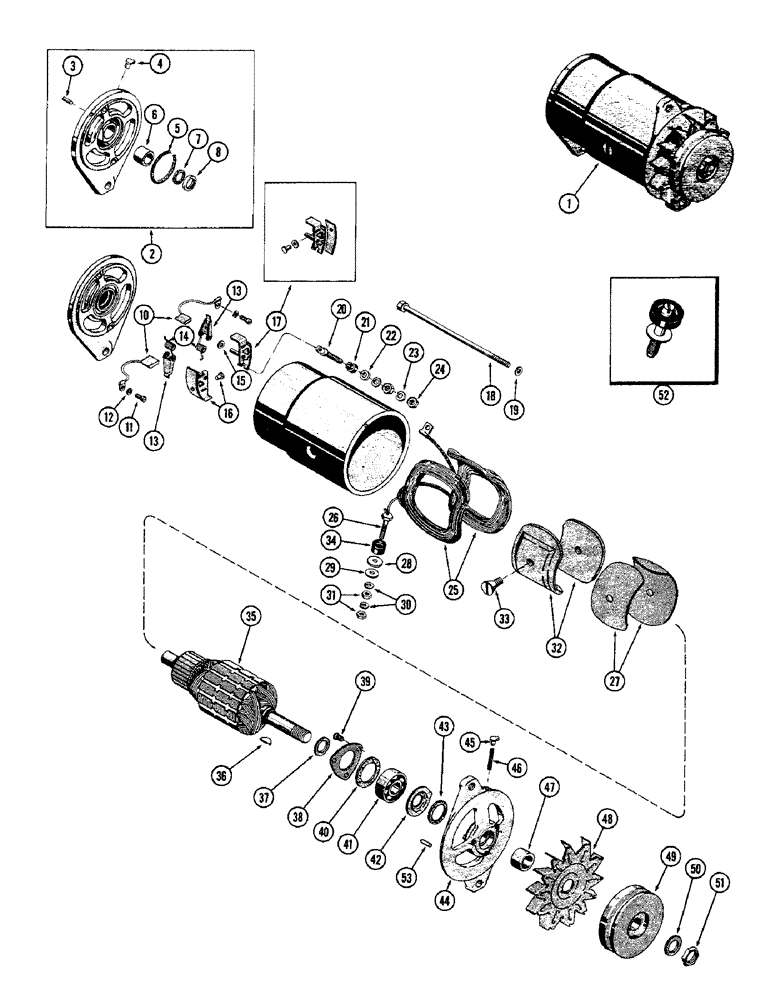

Запчасти Case 310G (080) - D27034 GENERATOR, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASSY. - (Delco #110404)

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 Volt 20 Ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 Volt 20 Ampere

1шт.

1

87297306

REMAN-GENERATOR

Remanufactured Generator - 12V 20A

1шт.

1

87297307

CORE-GENERATOR

Return Number Generator - 12V 20A

1шт.

2

A40679

HOUSING

HOUSING ASSY. - commutator end

1шт.

3

R15095

SPARE PART PIN - locating

1шт.

4

R16155

SPARE PART OILER

1шт.

5

A41417

WICK

WICK - oil

1шт.

6

A25459

BUSHING

BUSHING - armature shaft

1шт.

7

R16157

WASHER

WASHER - felt

1шт.

8

R16156

CUP

CUP - retainer, felt washer

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

11

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6-N.C. x 1/4" rd. hd.)

2шт.

12

195-15

WASHER,#12

WASHER - lock, #6 std.

2шт.

13

R15090

ARM

ARM - brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

R16162

SPARE PART WASHER - spacer, brush arm

2шт.

16

A40703

NOZZLE HOLDER

KIT - brush holder (Grounded)

1шт.

17

A40704

NOZZLE HOLDER

KIT - brush holder (Insulated)

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

A40701

STUD

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - insulating, arm. terminal

1шт.

22

R15079

WASHER

WASHER - plain

1шт.

23

192-17

LOCK WASHER,#12

Washer, Lock, #12

2шт.

24

129-18

NUT,#12-24

NUT - terminal, #12 N.C. hex.

2шт.

25

R16149

COIL ASSY.

COIL ASSY. - field

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - terminal (Order ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION - coil

2шт.

28

R16148

WASHER

WASHER - insulating, field terminal

1шт.

29

R15079

WASHER

WASHER - plain

1шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, #12

2шт.

31

129-18

NUT,#12-24

NUT - field terminal, #12 N.C. hex.

2шт.

32

A40700

SPARE PART SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - 3/8 x 5/8" N.F. flat hd.

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - field term. (Order ref. 52)

1шт.

35

A25428

ARM ASSY.

ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley to shaft #5, 1/8" x 5/8", HT

1шт.

37

R15100

SPARE PART SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

SCREW - bearing retainer

3шт.

40

R16170

GASKET

GASKET - retainer

1шт.

41

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

PLATE, LARGE RETAINER - felt washer

1шт.

43

R16168

WASHER

WASHER - felt

1шт.

44

A25442

HOUSING

HOUSING ASSY. - drive end

1шт.

45

219-202

OILER

OILER

1шт.

46

R16165

SPARE PART WICK - oil

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

FAN - ventilating, generator

1шт.

49

A25454

PULLEY

PULLEY - drive

1шт.

50

192-116

WASHER, LOCK

WASHER - lock, 11/16" std.

1шт.

51

A25546

NUT

NUT -, Serial Range: pulley-shaft

1шт.

52

A40702

STUD

KIT - field terminal

1шт.

53

R15041

SPARE PART PIN - locating, drive end

1шт.
