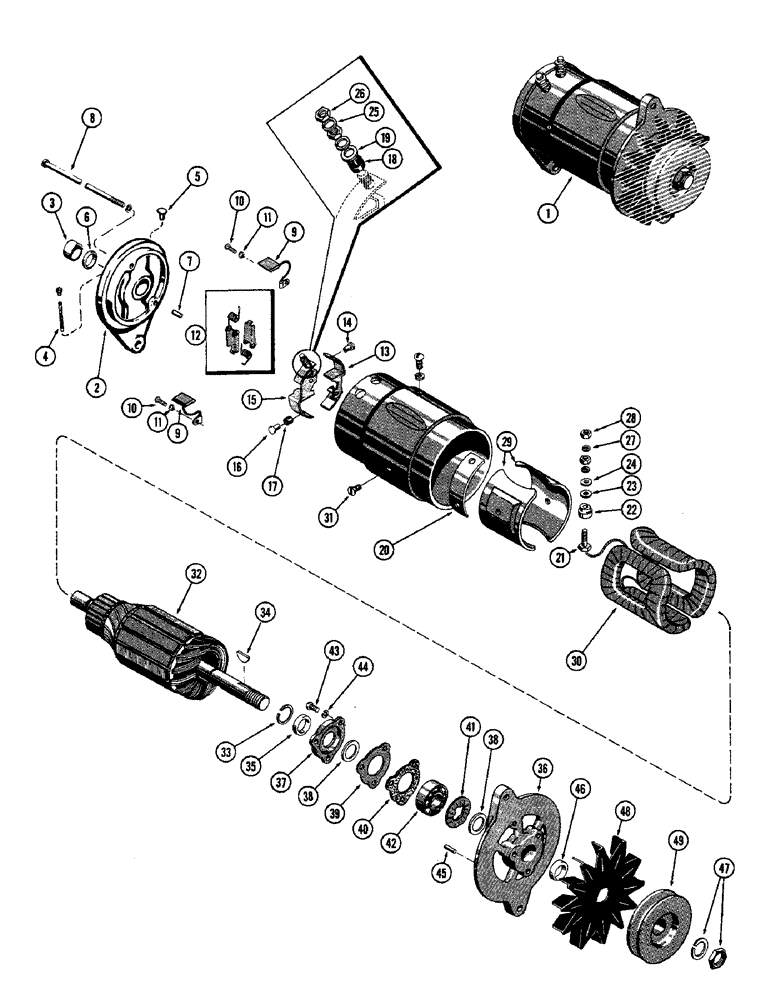

Запчасти Case 310G (078) - A36279 GENERATOR, (148B) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

1

A36279

X

GENERATOR ASSY. - (Presolite #GJT-7404A) Order F21239 for repairs

1шт.

F21239

GENERATOR ASSY. - (Less pulley & fan for repairs) (Presolite #GJT-7404S not shown)

1шт.

2

A25620

HEAD ASSY. - commutator end

1шт.

3

A25623

BUSHING

BEARING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

5

A25624

OILER

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DOWEL - locating

1шт.

8

A40580

BOLT - thru (Package of 2)

1шт.

9

F83422

BRUSH ASSY.

BRUSH SET

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- brush lead (#8-32 x 1/4" rd. hd.)

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

A40276

SPRING

ARM & SPRING SET - brush

1шт.

A40279

STUD

KIT - terminal & holder (Not shown)

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER - ground, brush

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - brush holder

2шт.

15

NSS

NOT SOLD SEPARAT

HOLDER - insulated, brush

1шт.

16

NSS

NOT SOLD SEPARAT

RIVET - brush holder

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rivet

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - insulation, terminal

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - plain, field terminal

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-121

NUT,1/4"-28, G5

Brush terminal 1/4"-28, G5

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

28

129-37

NUT,#10-32

Field terminal #10-32

2шт.

29

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

30

A40273

COIL ASSY. - field

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - shoe pole

2шт.

32

A25886

ARMATURE

1шт.

33

A25626

RING

- snap, spacer stop

1шт.

34

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

35

NSS

NOT SOLD SEPARAT

SPACER - bearing retainer

1шт.

36

A25616

HEAD ASSY. - drive end

1шт.

37

A25631

RETAINER - bearing

1шт.

38

A25617

WASHER - felt, drive end

2шт.

39

A25632

PLATE - bearing retainer

1шт.

40

A25634

GASKET - bearing plate

1шт.

41

A25633

RETAINER - outer, bearing

1шт.

42

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - armature shaft

1шт.

43

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- #10 32 x 1/2" rd. hd.

3шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

45

NSS

NOT SOLD SEPARAT

PIN - locating, head

1шт.

46

14504

SPACER - fan & pulley

1шт.

47

A40581

KIT

- nut & lock washer, armature shaft

1шт.

48

14503

FAN - ventilating (Not part of F21239)

1шт.

49

G4521

PULLEY

- drive (Not part of F21239)

1шт.
