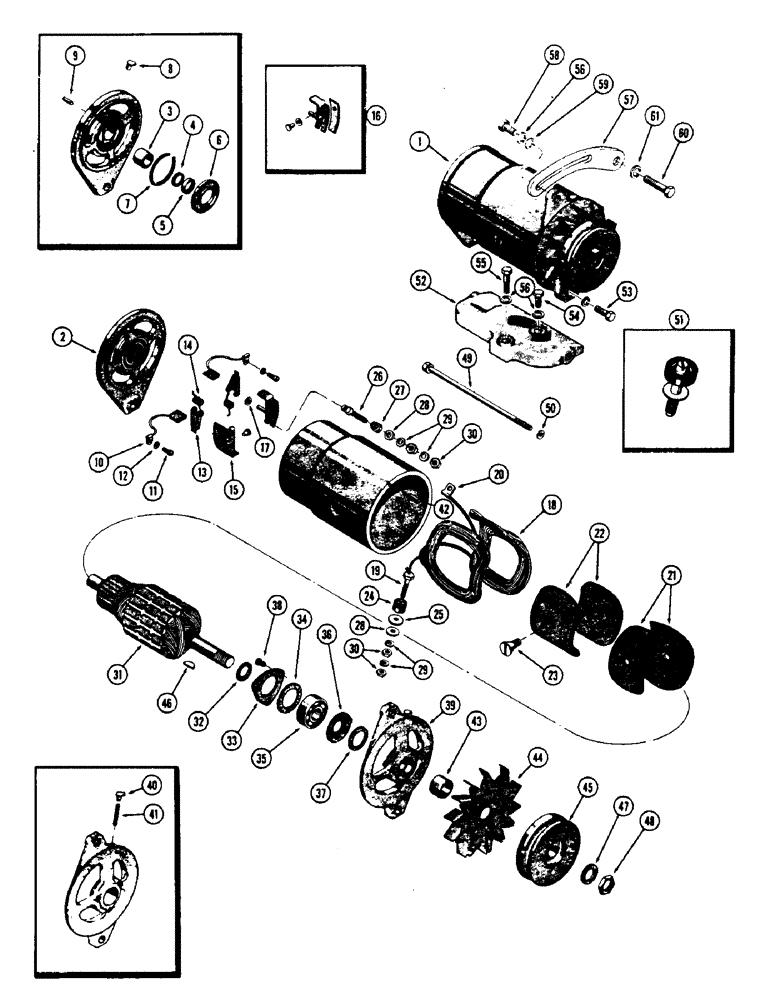

Запчасти Case 310G (070) - D27034 GENERATOR AND MOUNTING PARTS, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASSY. (Delco #1100404)

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 Volt 20 Ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 Volt 20 Ampere

1шт.

1

87297306

REMAN-GENERATOR

Remanufactured Generator - 12V 20A

1шт.

1

87297307

CORE-GENERATOR

Return No, Generator -12V 20A

1шт.

2

A40679

HOUSING

FRAME ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

5

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

7

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

8

NSS

NOT SOLD SEPARAT

OILER

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - dowel, end frame locating

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH (Set of 2)

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead attaching

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock, brush attach. screw

2шт.

13

R15090

ARM

ARM - brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush tension

2шт.

15

A40703

NOZZLE HOLDER

HOLDER - brush, grounded

1шт.

16

A40704

NOZZLE HOLDER

HOLDER - brush, insulated

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - brush arm

2шт.

18

A25438

X

COIL ASSY. - field

1шт.

19

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 51)

1шт.

20

NSS

NOT SOLD SEPARAT

CLIP - armature terminal

1шт.

21

R16152

INSULATOR

INSULATE - coil

2шт.

22

A40700

SPARE PART SHOE - pole

2шт.

23

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal (Order ref. 51)

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal (Order ref. 51)

1шт.

26

R16146

X

STUD - armature terminal

1шт.

27

R16147

BUSHING

BUSHING - insulation, armature terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - terminal studs, plain

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal studs

4шт.

30

NSS

NOT SOLD SEPARAT

NUT - terminal studs

4шт.

31

A25428

ARM ASSY.

ARMATURE

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive end

1шт.

33

R15101

PLATE

PLATE - bearing retainer

1шт.

34

R16170

GASKET

GASKET - brg. retainer plate

1шт.

35

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - felt seal & brg. retainer

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - felt, drive end

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - brg. retainer plate

3шт.

39

R16163

X

FRAME ASSY. - drive end

1шт.

40

NSS

NOT SOLD SEPARAT

OILER

1шт.

41

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

42

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end locating

1шт.

43

R16166

BUSHING

COLLAR - spacer, drive end

1шт.

44

A25449

FAN

FAN - ventilating

1шт.

45

A25454

PULLEY

PULLEY - generator drive

1шт.

46

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

47

R16171

SPRING WASHER

WASHER - lock, pulley ret. nut

1шт.

48

A25546

NUT

NUT - pulley retaining

1шт.

49

A40129

BOLT

BOLT - thru

2шт.

50

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.

51

A40702

STUD

KIT - coil stud repair (Incl. items 19, 24 & 25)

1шт.

52

G2131

X

BRACKET - generator mounting

1шт.

53

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

54

113-137

X

BOLT - 5/16 x 1-1/2" N.C. hex

1шт.

55

113-126

BOLT

BOLT - 5/16" x 1" N.C. hex

1шт.

56

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

57

A37107

SPARE PART STRAP - generator adjusting

1шт.

58

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

59

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - 3/8 x 7/8 x 5/64"

1шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

61

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.
