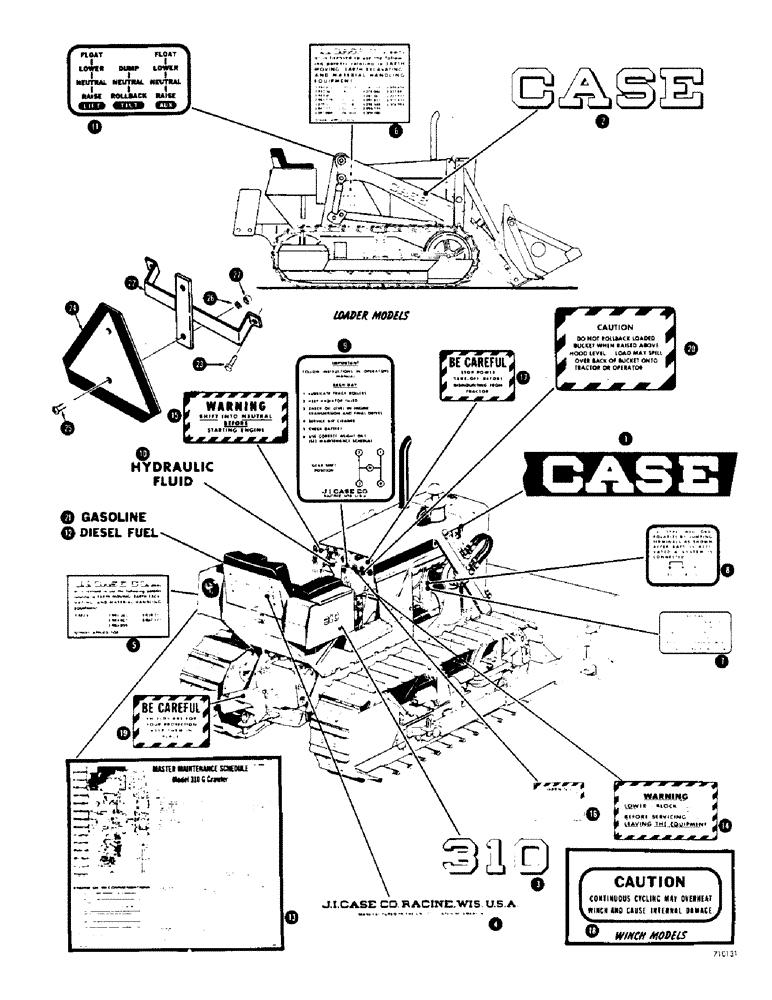

Запчасти Case 310G (288) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-1054

DECAL

- "Case", R.H. side of hood

1шт.

321-1055

DECAL

- "Case", L.H. side of hood

1шт.

2

321-675

DECAL

- "Case", loader lift arm

2шт.

3

321-713

DECAL

- "310", side of seat

2шт.

4

321-714

DECAL

- J.I. Case Co. Racine, Wisc., U.S.A. (Rear of seat)

1шт.

5

321-246

DECAL

- patent, basic crawler (L.H. side of seat)

1шт.

6

321-663

DECAL

- patent, loader (L.H. loader frame)

1шт.

7

321-367

DECAL

- oil filter replacement, R.H. side of engine

1шт.

8

321-766

DECAL

- generator instructions, R.H. side of engine

1шт.

9

321-1412

DECAL

- gear shift instructions, on dash

1шт.

10

321-229

DECAL

- "Hydraulic fluid" on dash

1шт.

11

321-760

DECAL

- loader valve instructions, on dash

1шт.

12

321-230

DECAL

- "Diesel Fuel", on fuel tank under seat

1шт.

13

321-874

DECAL

- "Master Maintenace Schedule" under L.H. arm rest

1шт.

14

321-339

DECAL

- warning, lower or block hydraulically (On dash or loader support)

1шт.

15

321-348

DECAL

- warning, shift into neutral (On dash)

1шт.

16

321-1089

DECAL

- warning, do not use ether with manifold heater (At ignition switch)

1шт.

17

321-605

DECAL

- be careful, stop power take-off (Models with power take-off)

1шт.

18

321-912

DECAL

- caution, winch (At winch controls)

1шт.

19

321-608

DECAL

- warning, do not remove guard (On P.T.O. guard) P.T.O. models only

1шт.

20

321-1234

DECAL

- warning, do not roll back loaded (On dash) loader models without anti-rollback

1шт.

21

321-18

DECAL

- gasoline, on fuel tank under seat

1шт.

22

D52031

SUPPORT - slow moving vehicle emblem

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

HHCS - 3/8" x 16 NC x 1", slow moving vehicle emblem

2шт.

24

A59449

NO LONGER SERVICED

slow moving vehicle emblem

1шт.

25

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head (#10 - 24 NC x 7/16"), slow moving vehicle emblem

2шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

27

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), slow moving vehicle emblem

2шт.
