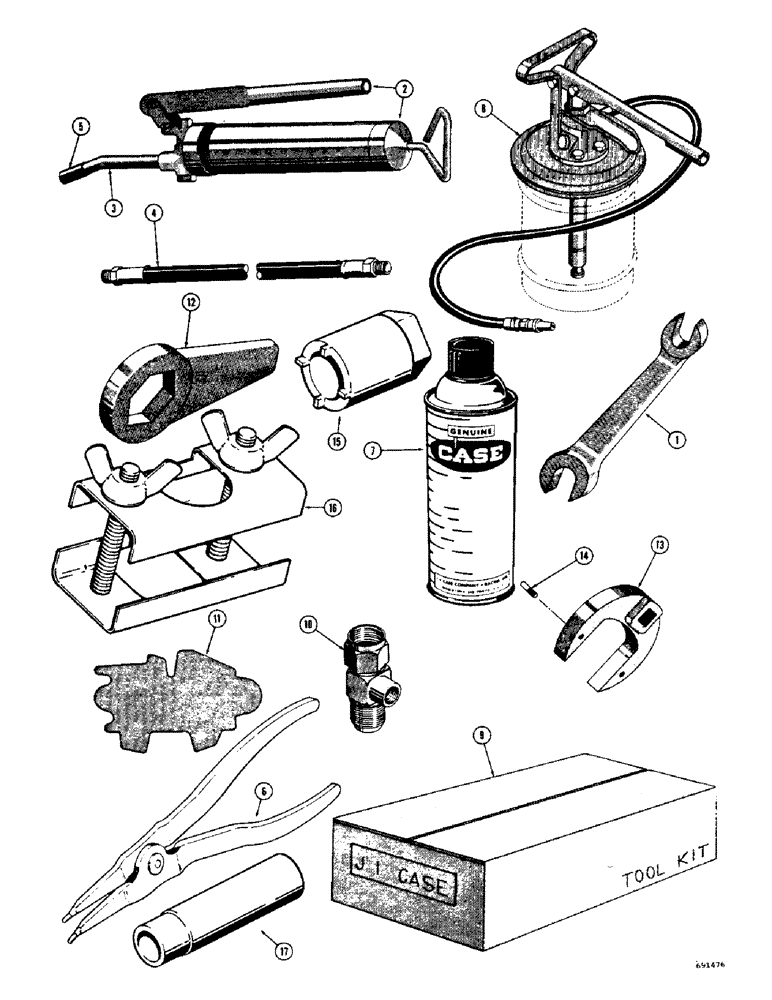

Запчасти Case 310G (286) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

1

D26335

OPEN END WRENCH

WRENCH - end, track adjusting

1шт.

219-101

GUN, GREASE

GUN - grease, hand type

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL AND LEVER - gun

1шт.

3

NSS

NOT SOLD SEPARAT

EXTENSION - nozzle

1шт.

4

D28957

HOSE

- flex

1шт.

5

D28958

COUPLING, QUICK, FEM

COUPLER - hydraulic

1шт.

6

D32049

TOOL

PLIERS - retaining, snap ring

1шт.

7

B17072

START SPRAY FLUID

ETHER - can, cold starting aid

1шт.

8

71261

GUN - grease, bucket type

1шт.

9

73200

KIT - tool

1шт.

NSS

NOT SOLD SEPARAT

PLIER - slip joint 6"

1шт.

NSS

NOT SOLD SEPARAT

SCREWDRIVER - 1/4" x 4"

1шт.

NSS

NOT SOLD SEPARAT

SCREWDRIVER - 5/16" x 6"

1шт.

NSS

NOT SOLD SEPARAT

HAMMER - ball peen (1-1/2 lb.)

1шт.

NSS

NOT SOLD SEPARAT

WRENCHES - open end (Set of 7), Serial Range: 3/8"-1-1/8"

1шт.

NSS

NOT SOLD SEPARAT

WRENCH - adjustable, 12"

1шт.

NSS

NOT SOLD SEPARAT

PUNCH - taper

1шт.

NSS

NOT SOLD SEPARAT

CHISEL - cold (1/2")

1шт.

NSS

NOT SOLD SEPARAT

BAR - jimmy (16")

1шт.

NSS

NOT SOLD SEPARAT

WRENCHES - Allen (Set of 5) 1/16" x 3/8"

1шт.

NSS

NOT SOLD SEPARAT

ADAPTER - socket drive (3/8" female x 1/2" male)

1шт.

NSS

NOT SOLD SEPARAT

HANDLE - T-flex (8-1/4") 3/8" drive

1шт.

NSS

NOT SOLD SEPARAT

HANDLE - T, sliding (17") 3/4" drive

1шт.

NSS

NOT SOLD SEPARAT

SOCKET - set (12 point - 3/4" drive), Serial Range: 1-1/16"-1-7/8"

1шт.

NSS

NOT SOLD SEPARAT

BOX - tool, metal

1шт.

10

D26337

3 WAY CONNECTION

TEE - pressure test (Has 5/8" JIC male fitting on one end, 5/8" JIC female swivel fitting on opposite end and 1/4" NPT female thread on the side for hydraulic pressure gauge installation)

1шт.

11

R15812

TOOL

GAUGE - wear, track components

1шт.

12

NLS

NO LONGER SERVICED

WRENCH - slugging, drive sprocket nut

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

13

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" piston rods

1шт.

13

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod

1шт.

13

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod

1шт.

13

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods

1шт.

13

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2-1/4" dia. piston rod

1шт.

13

D44116

OPEN END WRENCH

WRENCH - spanner, 4-1/2" or 5" 1.12 cylinders with 2-1/4" dia. piston rod

1шт.

14

D30107

PIN

- spanner wrench

3шт.

14

D44118

SPARE PART

PIN - spanner wrench, D44116 wrench only

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader and dozer control valves

1шт.

15

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

16

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - snap ring installing

1шт.
