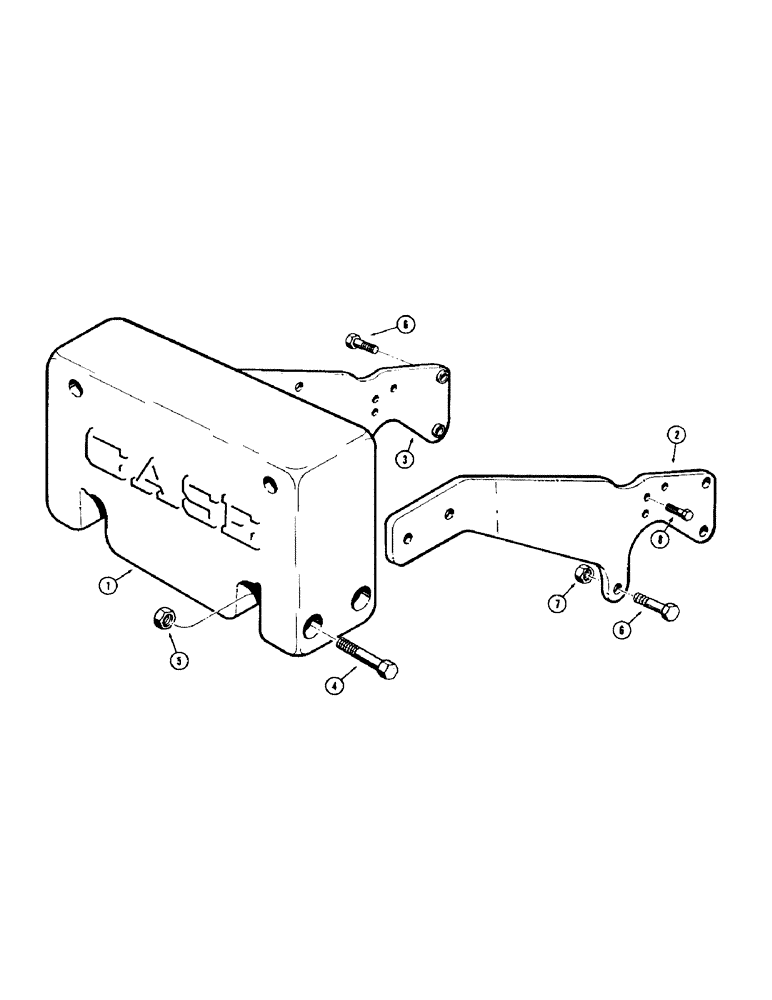

Запчасти Case 310G (252) - REAR COUNTERWEIGHT (WINCH MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 900 lb.

1шт.

2

D36700

ARM - support, R.H.

1шт.

3

D33836

SCREW

ARM - support, L.H.

1шт.

4

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - lock, hex. (1" - 8 NC)

4шт.

6

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

6шт.

7

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock, hex. (3/4" - 10 NC)

2шт.

8

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.
