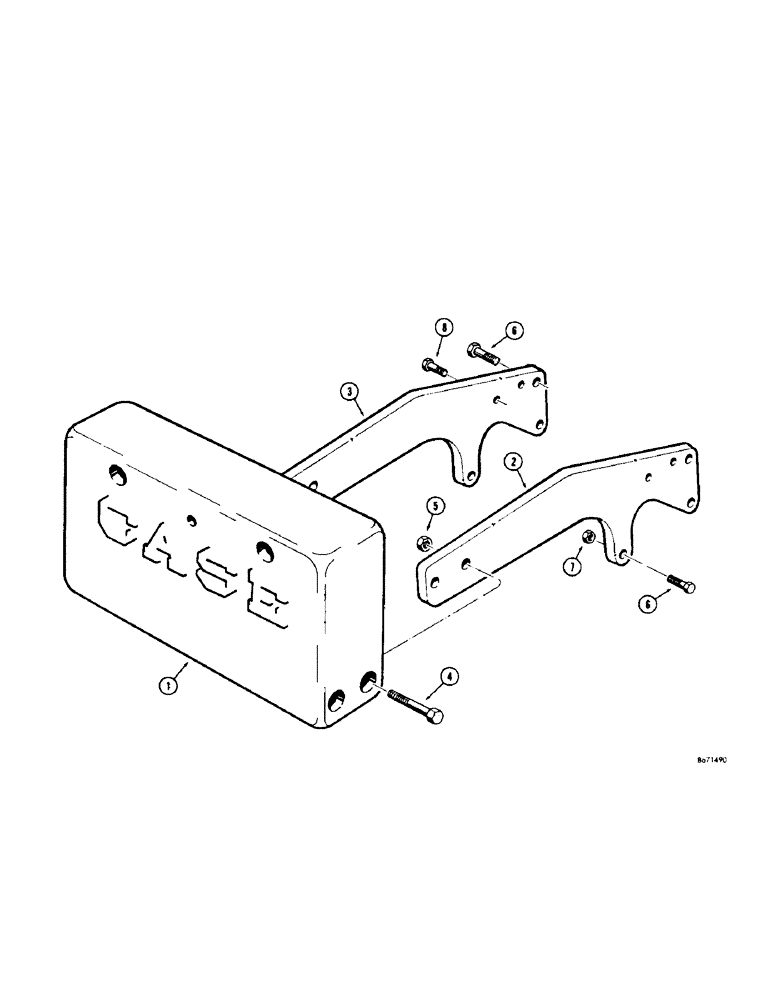

Запчасти Case 310G (252[1]) - REAR COUNTERWEIGHT (P.T.O. MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

D33842

ARM - support (R.H.)

1шт.

3

D33843

ARM - support (L.H.)

1шт.

4

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - lock, hex. (1" - 8 NC)

4шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

6шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.
