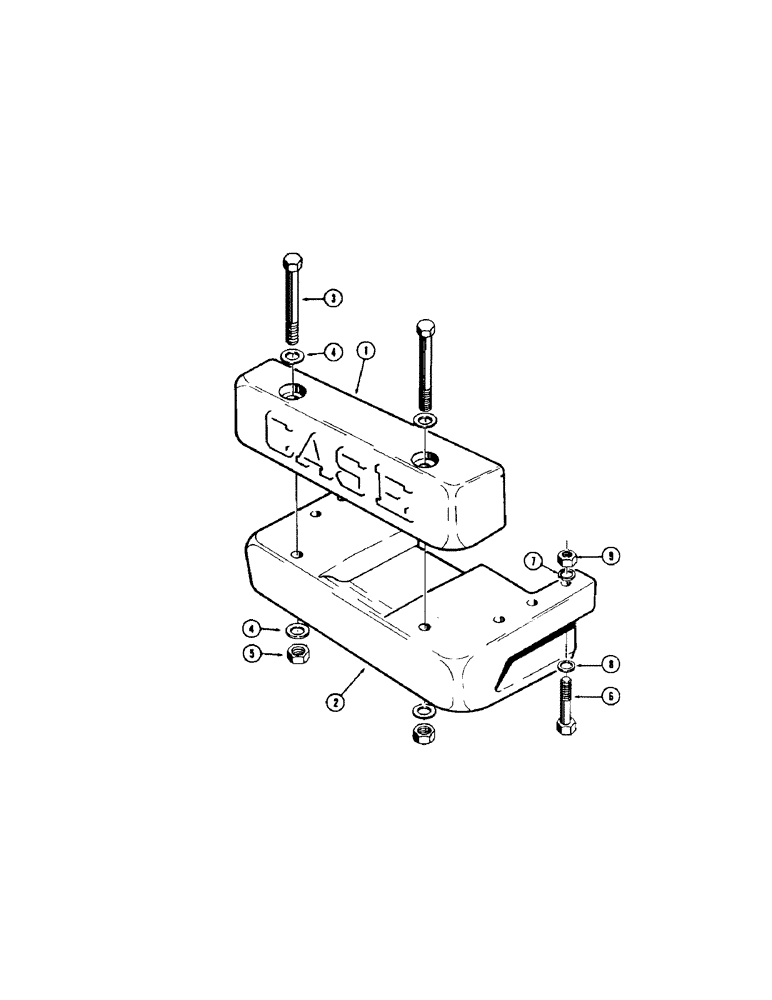

Запчасти Case 310G (250) - FRONT COUNTERWEIGHT (DRAWBAR AND DOZER MODELS W/O BACKHOE) (05) - UPPERSTRUCTURE CHASSIS

1

37490

BLOCK

COUNTERWEIGHT - upper (90 lbs.)

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower (420 lbs.)

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

4

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, hex. (5/8" - 11 NC)

2шт.

6

113-453

X

HHCS - 1/2" - 13 NC x 3-1/4"

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

- standard wrot 1/2"

6шт.

9

129-556

NUT,1/2"-13, G8

6шт.
