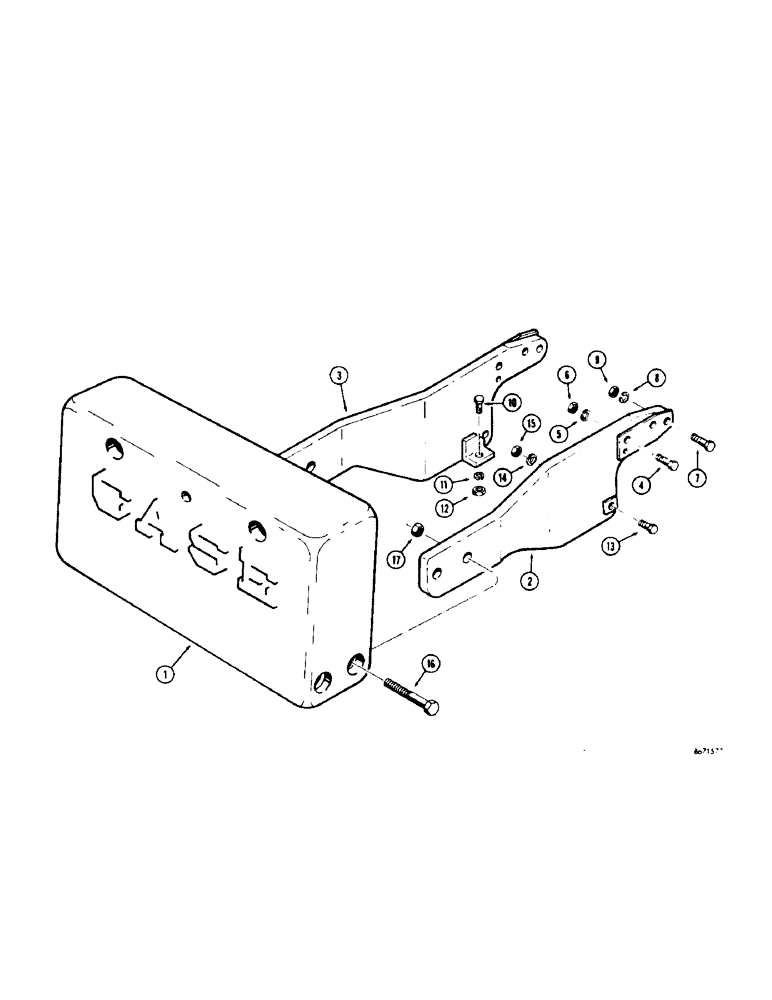

Запчасти Case 310G (250[1]) - REAR COUNTERWEIGHT (LOADER MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - 1400 lb.

1шт.

2

D32685

SUPPORT

ARM - counterweight support, R.H.

1шт.

3

D32684

ARM - counterweight support, L.H.

1шт.

4

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

7

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

25-1012

NUT,3/4"-10, G5

2шт.

16

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

17

230-41116

NUT,1"-8, GA

NUT - lock, hex. (1" - 8 NC)

4шт.
