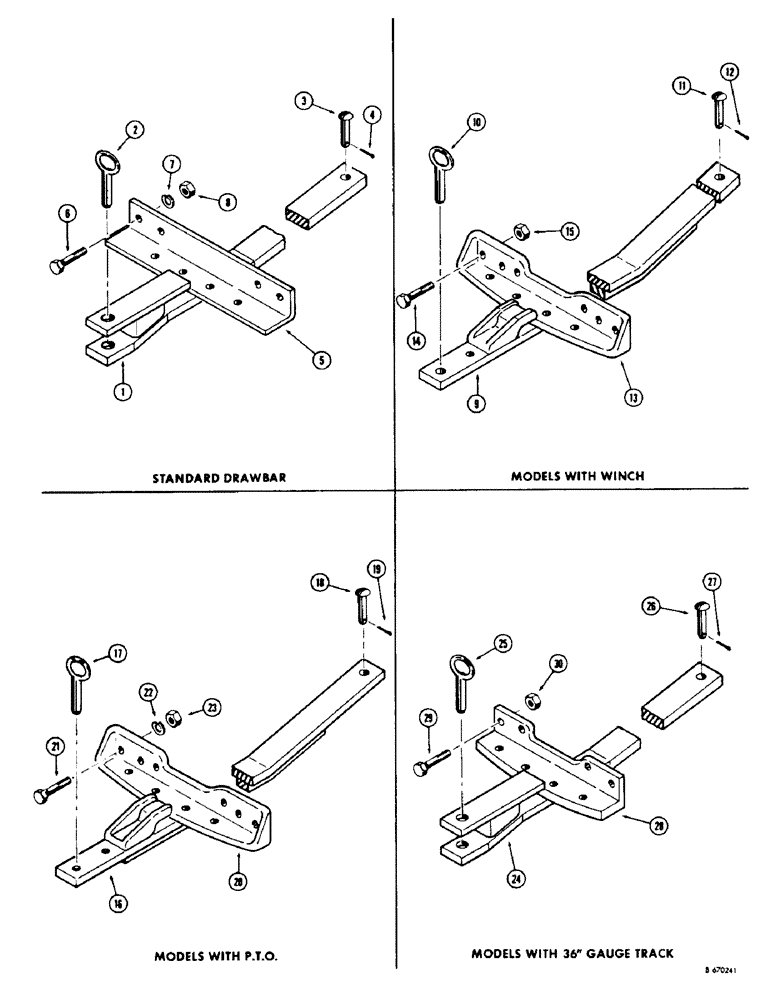

Запчасти Case 310G (248) - DRAWBARS, STANDARD DRAWBAR (05) - UPPERSTRUCTURE CHASSIS

1

D46111

DRAWBAR

1шт.

2

13073

AXLE PIN

PIN - hitch, drawbar

1шт.

3

13044

NUT

PIN - mounting, drawbar

1шт.

4

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

5

D40387

GUIDE - drawbar (48", 60" and 72" gauge models only)

1шт.

5

D43844

GUIDE - drawbar (42" gauge models only)

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

4шт.

9

D21843

DRAWBAR, models w/ winch

1шт.

10

13073

AXLE PIN

PIN - hitch, drawbar, models w/ winch

1шт.

11

13044

NUT

PIN - mounting, drawbar, models w/ winch

1шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models w/ winch 1/4" x 2"

1шт.

13

D35674

GUIDE - drawbar, models w/ winch

1шт.

14

D37830

HHCS - special, models w/ winch

2шт.

15

25-1010

NUT,5/8"-11, G5

Models w/ winch 5/8"-11, G5

2шт.

16

13109

PIN

DRAWBAR, models w/ PTO

1шт.

17

13073

AXLE PIN

PIN - hitch, drawbar, models w/ PTO

1шт.

18

13044

NUT

PIN - mounting, drawbar, models w/ PTO

1шт.

19

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models w/ PTO 1/4" x 2"

1шт.

20

D35674

GUIDE - drawbar, models w/ PTO

1шт.

21

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Models w/ PTO Hex, 5/8"-18 x 2", G5

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models w/ PTO 5/8"

4шт.

23

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF), models w/ PTO

4шт.

D26927

DRAWBAR ASSEMBLY - complete, models w/ 36" guage track

1шт.

24

D26895

DRAWBAR, models w/ 36" guage track

1шт.

25

13073

AXLE PIN

PIN - hitch, drawbar, models w/ 36" guage track

1шт.

26

13044

NUT

PIN - mounting, drawbar, models w/ 36" guage track

1шт.

27

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models w/ 36" gauge track 1/4" x 2"

1шт.

28

32662

RICE TOOTH

GUIDE - drawbar, models w/ 36" guage track

1шт.

29

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Models w/ 36" gauge track Hex, 3/4"-10 x 2", G5

2шт.

30

25-1012

NUT,3/4"-10, G5

Models w/ 36" guage track 3/4"-10, G5

2шт.
