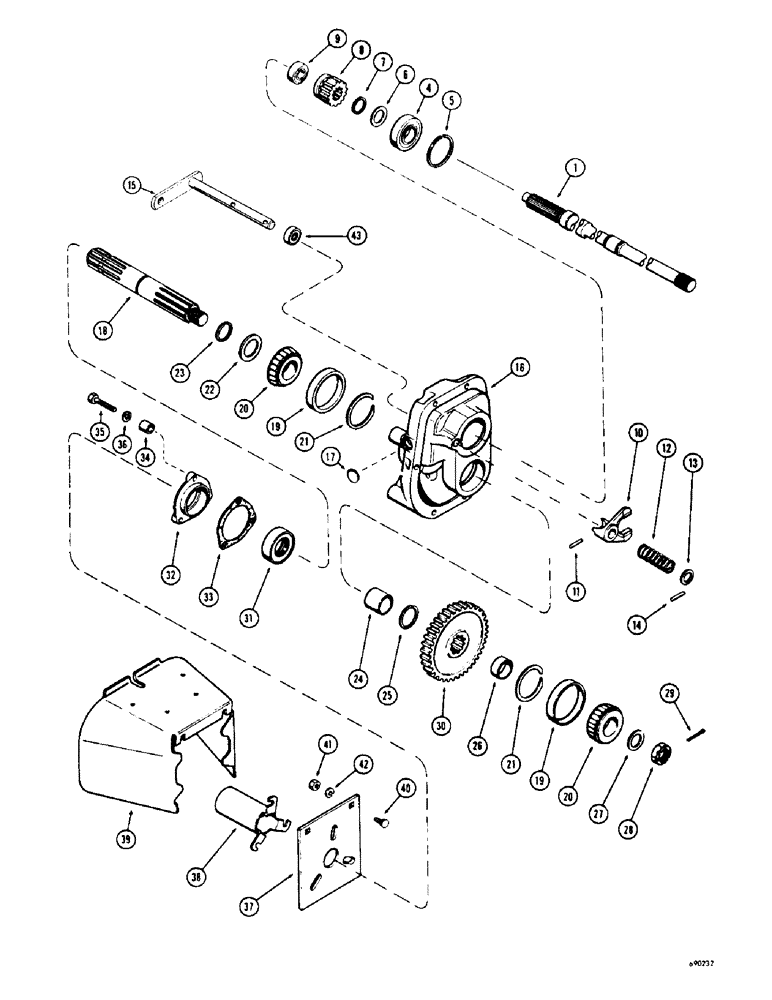

Запчасти Case 310G (244) - A38286 PTO ASSEMBLY, (MODELS WITHOUT BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

D41905

SHAFT

- drive, P.T.O.

1шт.

2

RESERVED

1шт.

3

RESERVED

1шт.

4

G10624

BALL BEARING

BEARING - drive shaft

1шт.

5

A30091

RING, SNAP

SNAP RING -, Serial Range: bearing-shaft

1шт.

6

B18275

WASHER

- retainer, shaft bearing

1шт.

7

F62095

RING, SNAP

SNAP RING - drive shaft

1шт.

8

G10675

GEAR

- drive, P.T.O. shaft

1шт.

9

G10623

BALL BEARING

BEARING - rear, drive shaft

1шт.

10

A36397

FORK TEDDER

FORK - shift, drive gear

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

12

A30146

SPRING

- throwout, shift fork

1шт.

13

B18080

WASHER

- special

1шт.

14

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

15

G30605

SHAFT ASSY.

SHAFT - shift-out

1шт.

16

A36887

HOUSING

HOUSHING - P.T.O. drive

1шт.

17

41-16

PLUG,Exp, 1"

- expansion, housing

1шт.

18

A37644

SHAFT

- P.T.O. outpuut

1шт.

19

G57451

BEARING, CUP

CUP - bearing, P.T.O. shaft

2шт.

20

G57452

ROLLER BEARING

CONE - bearing, P.T.O. shaft

2шт.

21

A27414

RING

SNAP RING -, Serial Range: bearing-housing

2шт.

22

A36580

RETAINER

- rear bearing, P.T.O. shaft

1шт.

23

A21619

CIRCLIP

SNAP RING - rear, P.T.O. shaft

1шт.

24

G10456

SPACER

- rear, drive gear

1шт.

25

A29969

WASHER

- special

1шт.

26

A29360

SPACER

- front, driven gear

1шт.

27

195-53

WASHER,1" x 2" x .134"

- plain (1")

1шт.

28

B18305

NUT

- slotted, special

1шт.

29

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

30

G10676

GEAR

- P.T.O. driven

1шт.

31

G13803

OIL SEAL

- rear, P.T.O. shaft

1шт.

32

A28805

RETAINER

- rear oil seal

1шт.

33

A30037

GASKET

- retainer

1шт.

34

B18083

BUSHING

SPACER - retainer

3шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

36

92-6

LOCK WASHER,3/8"

3шт.

37

A29087

PLATE

- guard mounting

1шт.

38

A29493

SHIELD

GUARD - P.T.O. shaft

1шт.

39

A27335

GUARD

- universal joint

1шт.

40

11-612

BOLT

HHCS - 3/8" - 16 NC x 3/4"

2шт.

41

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

A26778

SEAL

OIL SEAL - shift shaft

1шт.
