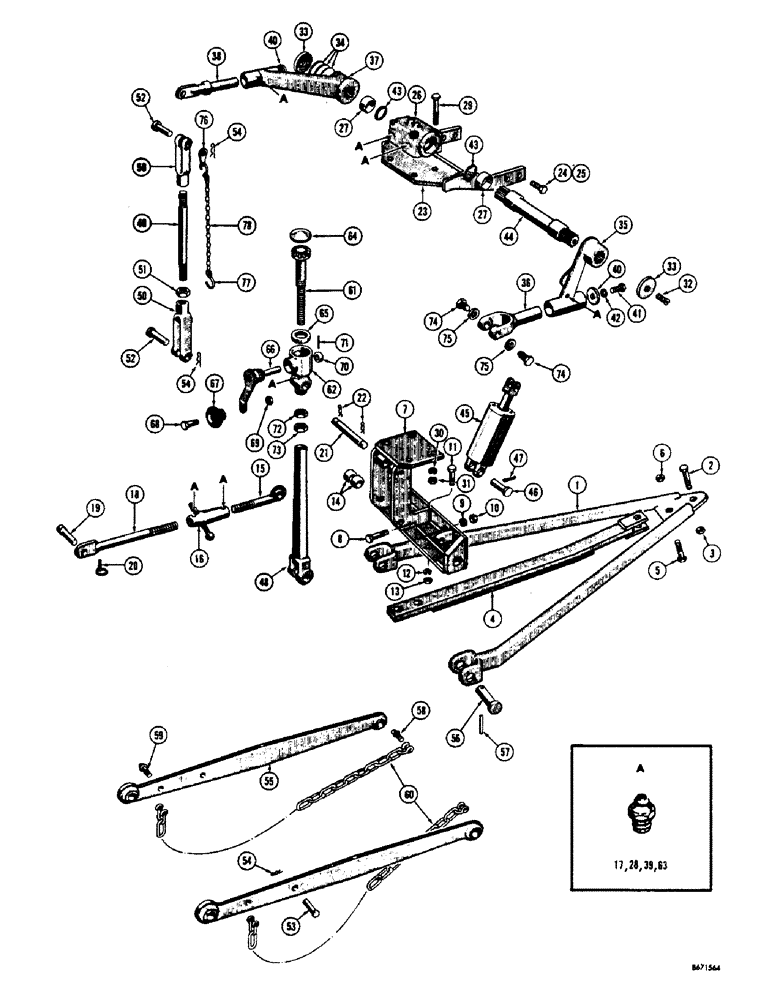

Запчасти Case 310G (194) - THREE POINT HITCH, DRAWBAR AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D20635
ARM - mounting, drawbar
1шт.
2
13-1656
BOLT,Hex, 1" - 8 x 3-1/2", Gr 5
HHCS - 1" - 8 NC x 3-1/2"
1шт.
3
230-41116
NUT,1"-8, GA
NUT - lock, hex. (1" - 8 NC)
1шт.
4
39778
SCREW
DRAWBAR - three point hitch
1шт.
5
13-1664
BOLT,Hex, 1" - 8 x 4", Gr 5
1шт.
6
230-41116
NUT,1"-8, GA
NUT - lock (1" - 8 NC)
1шт.
7
D20636
BRACKET - mounting, three point hitch (When stock is exhausted, use D44601 bracket for service)
1шт.
D44601
BRACKET - mounting, three point hitch
1шт.
8
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
4шт.
10
25-1010
NUT,5/8"-11, G5
4шт.
11
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
12
92-8
LOCK WASHER,1/2"
2шт.
13
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
14
D20483
SPACER - mounting, front depth adjusting screw
2шт.
15
A7240
SCREW - depth adjusting, front (L.H. thread), turnbuckle
1шт.
16
A7821
TURNBUCKLE - depth adjusting screw
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), turnbuckle
2шт.
18
D20622
LINK - depth adjusting, rear (R.H. thread), turnbuckle
1шт.
19
G16735
PIN
- mast, turnbuckle
1шт.
20
A30338
PIN
- keeper, mast pin, turnbuckle
1шт.
21
39798
BRACKET
PIN - depth adjusting link, turnbuckle
1шт.
22
A29054
HAIR PIN COTTER
- hair pin, cotter, rockshaft & housing
2шт.
23
D33890
STRAP - hanger, rockshaft & housing
1шт.
24
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
Rockshaft & housing Hex, 3/4"-10 x 2 1/4", G5
4шт.
25
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
HHCS - 1/2" - 13 NC x 2-1/4", rockshaft & housing
4шт.
26
D33977
HOUSING
- rockshaft
1шт.
27
A23422
BUSHING
- rockshaft housing
2шт.
28
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), rockshaft & housing
2шт.
29
13-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
HHCS - 5/8" - 11 NC x 5", rockshaft & housing
4шт.
31
25-1010
NUT,5/8"-11, G5
Rockshaft & housing 5/8"-11, G5
4шт.
32
73-616
SCREW,Slotted Flat Hd, 3/8"-16 x 1"
- machine, flat head (3/8" - 16 NC x 1"), rockshaft & housing
2шт.
33
A27679
PLATE - lock, lift arm, rockshaft & housing
2шт.
34
A27678
SHIM - rockshaft lock plate, L.H., housing
3шт.
35
D20612
ARM - rockshaft lift, R.H., housing
1шт.
36
A35019
END
SWIVEL - lift arm, R.H., rockshaft & housing
1шт.
37
D20614
ARM ASSY.
ARM - rockshaft lift, L.H., housing
1шт.
38
G16755
SWIVEL - L.H. lift arm, rockshaft & housing
1шт.
39
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), rockshaft & housing
2шт.
40
G16747
WASHER - retainer, lift arm swivel, rockshaft & housing
2шт.
41
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Rockshaft & housing Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
42
92-6
LOCK WASHER,3/8"
rockshaft & housing 3/8"
2шт.
43
A23423
SEAL
- "O" ring, rockshaft housing
2шт.
44
A23419
ROCKSHAFT, housing
1шт.
45
A11231
CYLINDER
- hydraulic, three point hitch (Parts list figure 228), draft arms cylinder & lift links
1шт.
46
A27344
PIN - mounting, draft arms cylinder & lift links
2шт.
47
132-150
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), , Daft arms cylinder & lift links 1/4" x 1 1/2"
2шт.
48
A35195
YOKE
- leveling screw, draft arms cylinder & lift links
1шт.
D20652
LINK
LIFT LINK ROD ASSEMBLY - L.H., draft arms cylinder
1шт.
49
NSS
NOT SOLD SEPARAT
ROD - lift link, L.H., draft arms cylinder
1шт.
50
213-8
CLEVIS,3/4"-16
- lift link rod, L.H. upper & lower
2шт.
51
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF)
1шт.
52
141-8
CLEVIS PIN,3/4" x 1.910", HDN
PIN - 213-8 clevis, draft arms cylinder & lift links
2шт.
53
A27657
PIN
- A35195 yoke, draft arms cylinder & lift links
1шт.
54
A29054
HAIR PIN COTTER
- hair, draft arms cylinder & lift links
3шт.
55
D37077
ARM - draft, arms cylinder & lift links
2шт.
56
D20629
PIN - mounting, draft arms cylinder & lift links
2шт.
57
138-141
LOCK PIN,1/4" x 1 7/8", Slotted
PIN, , Draft arms, cylinder & lift links 1/4" x 1 7/8", Slotted
2шт.
58
D21858
SCREW - shackle, draft arms cylinder & lift links
2шт.
59
D37078
SCREW - shackle, draft arms cylinder & lift links
2шт.
60
D21389
CHAIN - mounting bracket to draft arm, cylinder & lift links
2шт.
61
A35021
ARM
ROD - leveling, with gear, draft arms cylinder & lift links
1шт.
62
A26236
GEARBOX ASSY
HOUSING - gear, adjusting screw, draft arms cylinder & lift links
1шт.
63
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), draft arms cylinder & lift links
1шт.
64
41-30
PLUG
- Welch, 1-7/8" dia., draft arms cylinder & lift links
1шт.
65
A27655
BEARING, BALL
BEARING - thrust, leveling screw, draft arms cylinder & lift links
1шт.
66
A28584
CRANK
CRANK - adjusting screw, with gear, draft arms cylinder & lift links
1шт.
67
A26845
KNOB
- adjusting, screw crank, draft arms cylinder & lift links
1шт.
68
A27652
SCREW
BOLT - mounting, knob, draft arms cylinder & lift links
1шт.
69
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF), draft arms cylinder & lift links
1шт.
70
A27651
COLLAR
- leveling screw crankshaft, draft arms cylinder & lift links
1шт.
71
135-45
PIN - locking, taper (5/32" x 1"), draft arms cylinder & lift links
1шт.
72
A27656
NUT
- brass (7/8" - 14 NF), draft arms cylinder & lift links
1шт.
73
25-1514
JAM NUT,Jam, 7/8"-14, G5
- jam (7/8" - 14 NF), draft arms cylinder & lift links
1шт.
74
A27658
STUD
PIN - pivot, adjusting screw, draft arms cylinder & lift links
2шт.
75
F20286
WASHER
- pivot pin, draft arms cylinder & lift links
1шт.
D20504
CHAIN ASSEMBLY, draft arms cylinder & lift links
1шт.
76
A28294
RETAINER - chain, draft arms cylinder & lift links
1шт.
77
A27643
HOOK
"S" HOOK - chain, draft arms cylinder & lift links
2шт.
78
NSS
NOT SOLD SEPARAT
CHAIN, draft arms cylinder & lift links
1шт.
44
A23419
ROCKSHAFT, draft arms cylinder & lift links
1шт.
Выбрано товаров: 82
