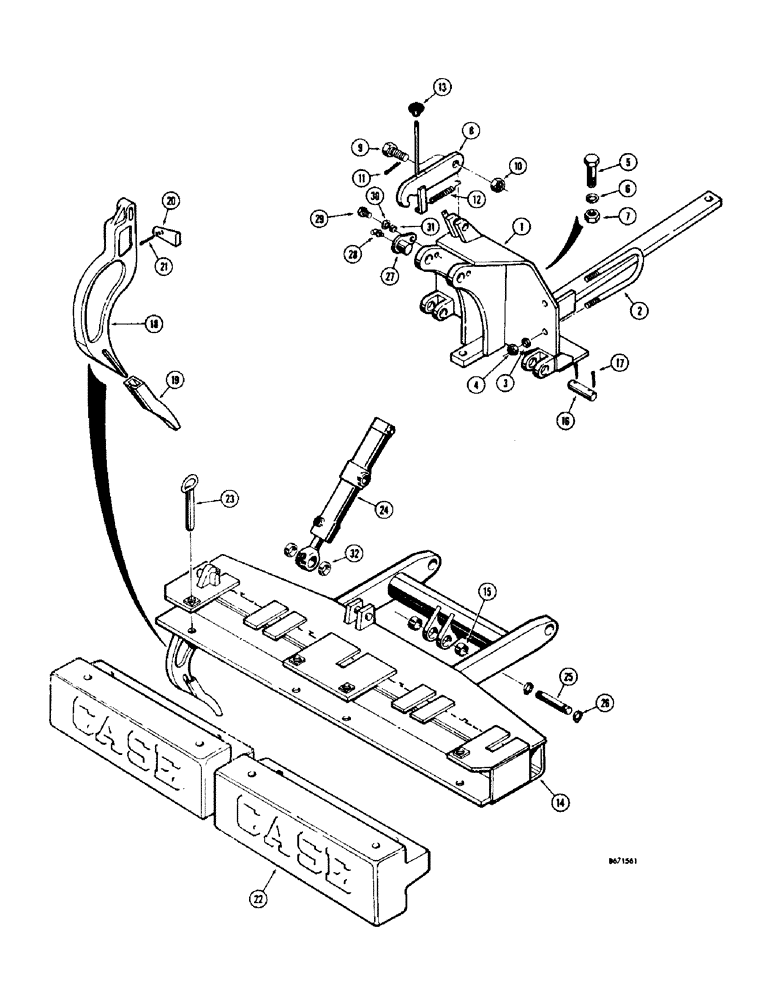

Запчасти Case 310G (188) - RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

37399

PUMP, FUEL INJECTION

PUMP, INJECTION FRAME - mounting, ripper

1шт.

2

31696

BOLT

SPARE PART "U", mounting frame to final drive spacer

2шт.

3

92-10

LOCK WASHER,5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

Hex

4шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

2шт.

7

25-1110

NUT,5/8"-18, G5

Hex

2шт.

8

D29985

LOCK

Transport safety

1шт.

9

D25951

BOLT

Special

1шт.

10

25-1220

SLOTTED NUT,1 1/4"-12, G5

Hex

1шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

1шт.

12

11469

SPRING

Lock

1шт.

13

CAS31375

KNOB

Lock lever

1шт.

14

D33518

SPARE PART Ripper

1шт.

15

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

Frame

2шт.

16

31715

PIN

Mounting, ripper frame to mounting frame

2шт.

17

132-152

PIN

Cotter, (1/4" x 1-3/4")

4шт.

18

D23748

TOOTH

Ripper

5шт.

19

D25598

TOOTH

POINT - ripper

5шт.

20

D30592

WEDGE

RETAINER - ripper tooth

5шт.

21

132-148

COTTER PIN,1/4" x 1 1/4"

5шт.

22

D28845

SPARE PART Ripper

2шт.

23

CAS19055

PIN ASSY.

Retaining, weight

4шт.

24

REF

INSTRUCTION

CYLINDER - ripper (See figures 230 and 231A for cylinders)

1шт.

25

D26105

PIN ASSY.

Mounting, cylinder to ripper frame

1шт.

26

D26918

SNAP RING,#125, Ext

Mounting pin

2шт.

27

35031

PIN

SPARE PART Trunnion, cylinder to mounting frame

2шт.

28

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2 degrees (1/8" NPT)

2шт.

29

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

2шт.

30

193-32

LOCK WASHER,Int Tooth, 1/2"

2шт.

31

D23740

BUSHING

35031 mounting pin

2шт.

32

R15389

SPACER

SPACER - cylinder rod

2шт.
