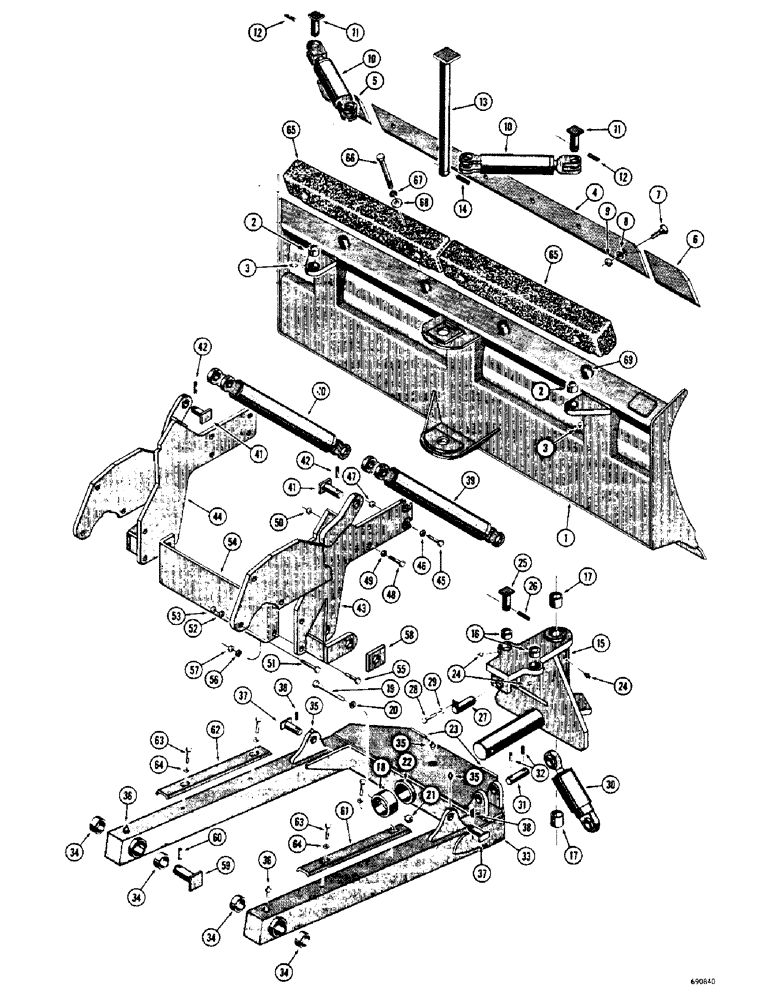

Запчасти Case 310G (180) - POWER ANGLE - TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D38710

MOLDBOARD - power angle - tilt dozer (This assembly dose not include ref. no. 69 on figure 182)

1шт.

2

D38734

BUSHING

- angle cylinder mount

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

4

D38711

EDGE - cutting center

1шт.

5

D38713

EDGE

- cutting, L.H.

1шт.

6

D38712

BELT

EDGE - cutting, R.H.

1шт.

7

19-1032

BOLT,5/8" - 11 x 2", Gr 5

- plow, 5/8" - 11 NC x 2"

10шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

9

25-1010

NUT,5/8"-11, G5

10шт.

10

D38726

CYLINDER - hydraulic, angling (Parts list figure 226)

2шт.

11

D38729

PIN - angle, Serial Range: cylinder-moldboard

2шт.

12

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

13

D38714

PIN - moldboard to tilt post

1шт.

14

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

D38716

X

KIT - tilt post repair

1шт.

15

D38736

POST - tilt

1шт.

16

D38734

BUSHING

- angle cylinder mount

2шт.

17

D38806

BUSHING

- blade pivot

2шт.

18

D38737

RING - tilt post lock

1шт.

19

14-1668

HHCS - 1" - 12 NF x 5-1/2"

1шт.

20

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

21

25-1116

NUT,1"-14, G5

- hex., 1" - 12 NF

1шт.

22

D38738

BEARING - tilt post

1шт.

23

D38739

WEAR PLATE - "C" frame

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

3шт.

25

D38729

PIN - angle cylinder to tilt post

2шт.

26

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

27

D38730

PIN - tilt cylinder to tilt post

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

D38727

CYLINDER - hydraulic, tilt (Parts list figure 226)

1шт.

31

D38728

PIN - tilt cylinder to "C" frame

1шт.

32

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

33

D38715

"C" FRAME - power angle-tilt dozer

1шт.

34

D38735

BELT

BUSHING - lift arm

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

3шт.

36

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

37

D38723

PIN - lift cylinder to "C" frame

2шт.

38

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

39

D38725

CYLINDER - hydraulic, R.H. (Parts list figure 218)

1шт.

40

D38724

CYLINDER - hydraulic, L.H. (Parts list figure 218)

1шт.

41

D38723

PIN - lift cylinder to mounting bracket

2шт.

42

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

43

D38717

BRACKET - mounting, R.H.

1шт.

44

D38718

BRACKET - mounting, L.H.

1шт.

45

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

6шт.

46

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

47

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

6шт.

48

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

49

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

50

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

2шт.

51

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4"

6шт.

52

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

6шт.

53

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

6шт.

54

D38719

BRACE - cross

1шт.

55

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

56

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

57

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

4шт.

58

D38720

PAD - mounting

2шт.

59

D38721

PIN - "C" frame mounting

2шт.

60

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

61

D39445

SHIELD - tube, R.H.

1шт.

62

D39446

SHIELD - tube, L.H.

1шт.

63

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

64

92-6

LOCK WASHER,3/8"

4шт.

65

D35480

COUNTERWEIGHT - dozer/backhoe (200 lbs.), power angle tilt

2шт.

66

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweights for power angle tilt dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5

4шт.

67

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweights for power angle tilt dozer/backhoe 3/4"

4шт.

68

95-12

WASHER,3/4"

- std. wrot (), counterweights for power angle tilt dozer/backhoe 3/4"

4шт.

69

D35481

BOSS - mounting, counterweights for power angle tilt dozer/backhoe

4шт.
