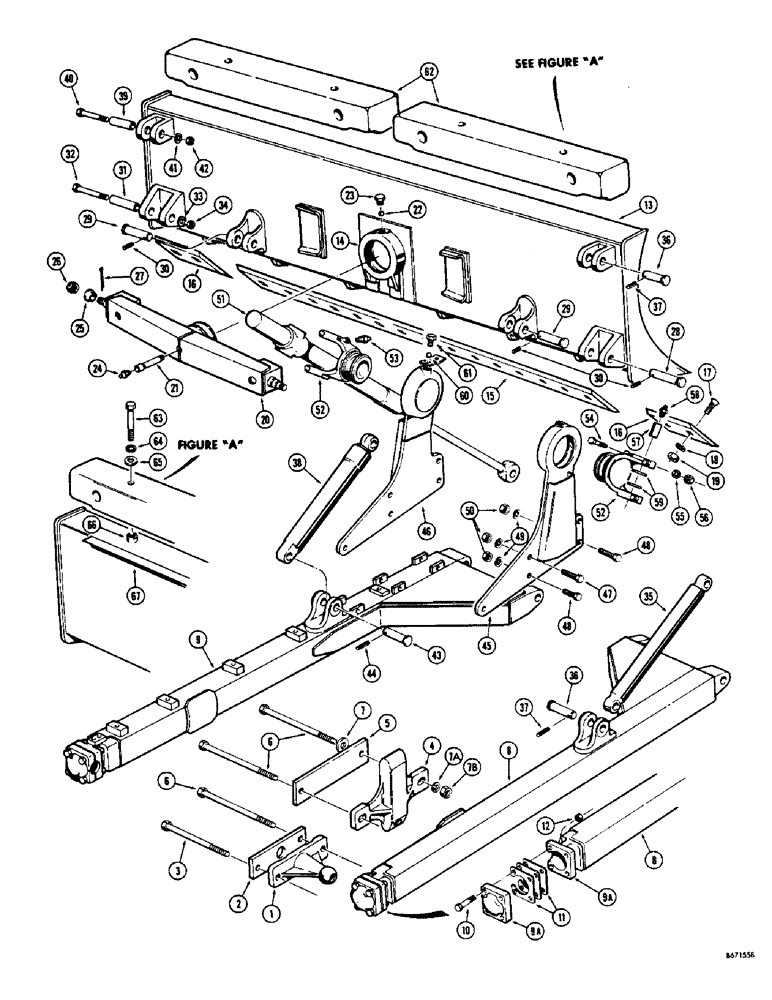

Запчасти Case 310G (174) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D30587

TRUNNION - pivot, dozer attaching

2шт.

2

D30586

SPARE PART Trunnion

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

2шт.

4

37992

PLATE - rub

2шт.

5

D30585

SPACER - rub plate

2шт.

6

14-12216

BOLT,Hex, 3/4" - 16 x 13-1/2", Gr 5

6шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.

7a

92-12

LOCK WASHER,3/4"

8шт.

7b

25-1112

NUT,3/4"-16, G5

Hex

8шт.

8

37881

CONDUIT

BEAM - push, RH

1шт.

9

37997

FORK

SPARE PART BEAM - push, LH

1шт.

37736

SPARE PART KIT - pivot bracket, 37881 and 37997 push beams

1шт.

9a

NSS

NOT SOLD SEPARAT

CAP ASSY - push beam

1шт.

10

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

4шт.

11

37735

SPARE PART Pivot bracket (.0312")

1шт.

12

25-278

NUT,1/2"-20, G5, High

4шт.

13

D25701

MOLDBOARD

1шт.

14

D27109

SPARE PART Outer race

1шт.

15

16452

EDGE

BLADE - cutting, center

1шт.

16

16187

GUARD

BLADE - cutting, outer

2шт.

17

19-828

BOLT,1/2"-13 x 1 3/4", G5

Plow

19шт.

18

92-8

LOCK WASHER,1/2"

19шт.

19

25-108

NUT,1/2"-13, G5

Hex

19шт.

20

D25702

SPARE PART LEVELING ASSY - moldboard

1шт.

21

D25736

PIPE - lubrication, leveling assy

1шт.

22

211-17

BALL,3/4" Dia

Steel

19шт.

23

D24506

PLUG

SPARE PART Special (7/8"-14 NF)

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

25

D25704

SPARE PART

2шт.

26

25-1212

SPARE PART NUT - hex., slotted (3/4"-10 NC) 3/4"-10, G5

2шт.

27

132-52

COTTER PIN,1/8" x 1 1/2"

2шт.

28

39222

PIN - RH push beam to moldboard, outer

1шт.

29

37990

SPARE PART Push beam to moldboard, inner

2шт.

30

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

3шт.

31

D20149

PIN - LH push beam to moldboard, outer

1шт.

32

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

33

92-8

LOCK WASHER,1/2"

1шт.

34

25-108

NUT,1/2"-13, G5

Hex

1шт.

35

38158

STRUT - RH push, Serial Range: beam-moldboard

1шт.

36

37990

SPARE PART Mounting, strut (Upper and lower)

2шт.

37

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

2шт.

38

REF

INSTRUCTION

CYLINDER - tilt (See figure 224 for cylinders)

1шт.

39

D20188

SPARE PART Tilt, Serial Range: cylinder-moldboard

1шт.

40

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

41

92-8

LOCK WASHER,1/2"

1шт.

42

25-108

NUT,1/2"-13, G5

Hex

1шт.

43

37990

SPARE PART Tilt cylinder to LH push beam

1шт.

44

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

1шт.

45

D24502

SPARE PART TRUNNION - cylinder, RH outer

1шт.

46

D24501

SPARE PART TRUNNION - cylinder, LH outer

1шт.

47

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

48

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

49

92-10

LOCK WASHER,5/8"

10шт.

50

25-1010

NUT,5/8"-11, G5

10шт.

51

REF

INSTRUCTION

CYLINDER - lift (See figure 220 and 221A for cylinders)

2шт.

52

D24497

TRUNNION

Inner race

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

55

92-6

LOCK WASHER,3/8"

4шт.

56

25-106

NUT,3/8"-16, G5

Hex

4шт.

57

D24508

PIN,31.74mm OD x 50.8mm L

Mounting, Serial Range: cylinder-trunnion

4шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

59

D24516

WASHER

Special

4шт.

60

211-17

BALL,3/4" Dia

Steel

38шт.

61

D24506

PLUG

SPARE PART Special

2шт.

62

D35480

SPARE PART Dozer/backhoe (200 lbs.), power tilt

2шт.

63

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweights for power tilt dozer backhoe

4шт.

64

92-12

LOCK WASHER,3/4"

Counterweights for power tilt dozer backhoe

4шт.

65

95-12

WASHER,3/4"

Counterweights for power tilt dozer backhoe

4шт.

66

D35481

SPARE PART BOSS - mounting, counterweights for power tilt dozer backhoe

4шт.

67

D35483

SPARE PART BRACKET - support, counterweights for power tilt dozer backhoe

1шт.
