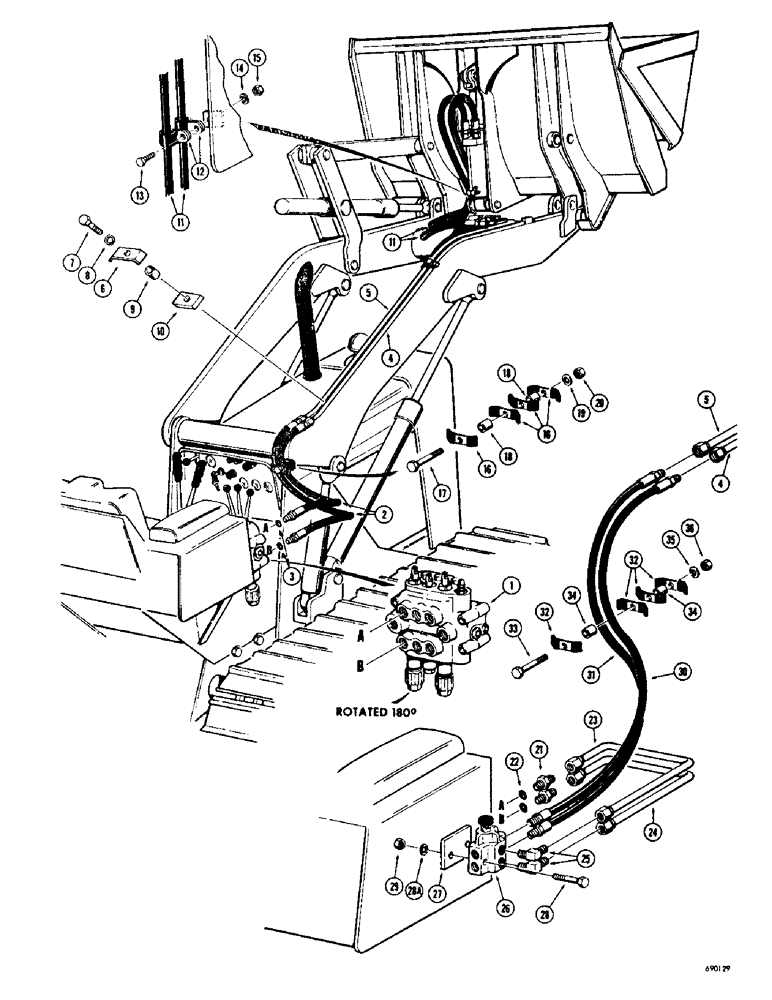

Запчасти Case 310G (162) - CLAM TYPE BUCKET AND GRAPPLE ATTACHMENT HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

VALVE - control, hydraulic (See figure 206 and 208 for proper valve)

1шт.

2

D34415

HOSE

SPARE PART Control valve to clam or grapple cylinder (35-1/2" long)

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D34417

TUBE

Upper control valve port to clam or grapple cylinder (RH)

1шт.

5

D34419

TUBE

Lower control valve port to clam or grapple cylinder (LH)

1шт.

6

38331

PLATE

Clamp

3шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

8

92-5

LOCK WASHER,5/16"

3шт.

9

D33551

BUSHING

SPACER - clamp

3шт.

10

D24663

BLOCK

Mounting, clamp

3шт.

11

D34401

HOSE ASSY.

Control valve to clam cylinder (60" long) Use with Drott bucket only (See D39245 and D39919 hoses)

2шт.

D39245

HOSE

Control valve to clam cylinder (28" long) Use with Ulrich bucket only (See D34401 and D39919 hoses)

2шт.

D39919

SPARE PART Control valve to grapple cylinder (39" long) Use with Grapple attachment only (See D34401 and D39245 hoses)

2шт.

12

49855

CLAMP

Hose

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

16

D33316

CLAMP

PLATE - clamp, hose

4шт.

17

13-554

HHCS - 5/16" - 18 NC x 3-3/8"

1шт.

18

D33829

BUSHING

SPACER - clamp

2шт.

19

91-5

WASHER - med. sect. lock (5/16")

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, loader ripper & 3 point hitch models

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Loader ripper & 3 point hitch models

1шт.

23

D38151

TUBE

SPARE PART Upper control valve port to upper diversion valve port, loader ripper & 3 point hitch models

1шт.

24

D38149

TUBE

SPARE PART Lower control valve port to lower diversion valve port, loader ripper & 3 point hitch models

1шт.

25

D29569

X

ELBOW - special, 90 degrees, loader ripper & 3 point hitch models

2шт.

26

D34424

VALVE

Diversion (Parts list figure 236), loader ripper & 3 point hitch models

1шт.

27

D34426

SPARE PART BRACKET - diversion valve mounting, loader ripper & 3 point hitch models

1шт.

28a

92-6

LOCK WASHER,3/8"

Loader ripper & 3 point hitch models

2шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Loader ripper & 3 point hitch models

2шт.

29

25-106

NUT,3/8"-16, G5

Hex, loader ripper & 3 point hitch models

2шт.

30

D34466

SPARE PART Upper diversion valve port to clam cylinder (40-1/2" long), loader ripper & 3 point hitch models

1шт.

31

D34464

SPARE PART Lower diversion valve port to clam cylinder (42-1/2" long), loader ripper & 3 point hitch models

1шт.

32

D33316

CLAMP

PLATE - clamp, hose, loader ripper & 3 point hitch models

4шт.

33

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4", loader ripper & 3 point hitch models

1шт.

34

D33829

BUSHING

SPACER - clamp, loader ripper & 3 point hitch models

2шт.

35

92-5

LOCK WASHER,5/16"

Loader ripper & 3 point hitch models

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

Hex, loader ripper & 3 point hitch models

1шт.
