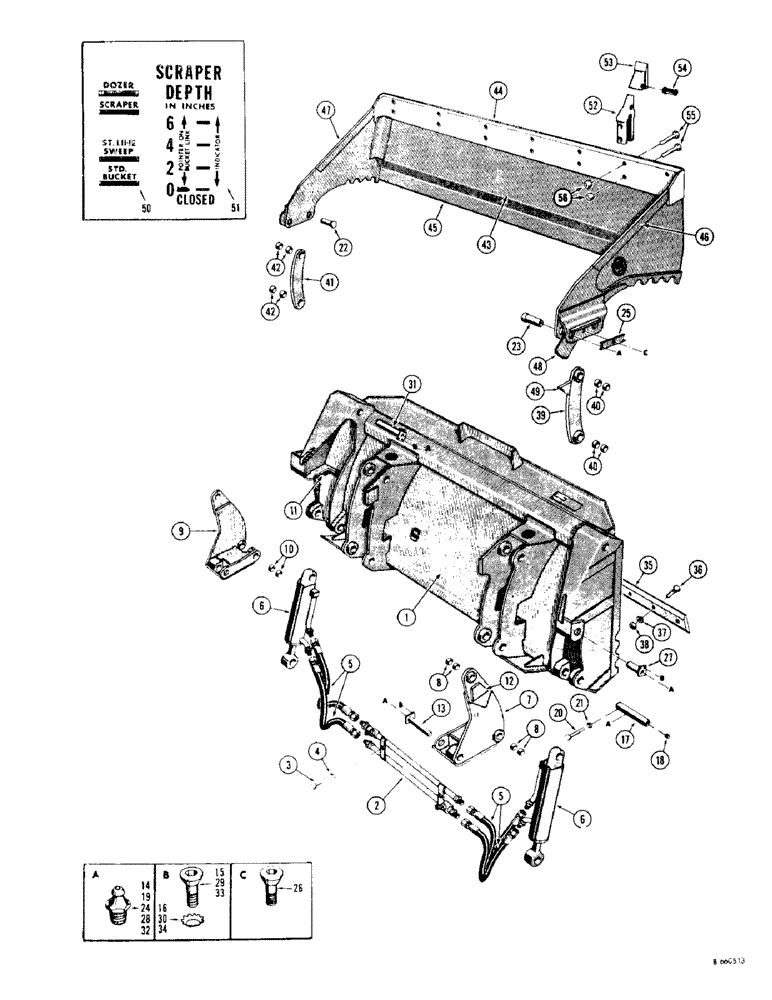

Запчасти Case 310G (156) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS

D37815

ULRICH BUCKET - without teeth (3/4 yard) machinery item

1шт.

D39174

BLADE ASSEMBLY - bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39160

TUBE ASSEMBLY - valve to clam cylinder

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D39172

HOSE - tube to clam cylinder (18" long)

4шт.

6

D39096

CYLINDER - clam (Parts list figure 216)

2шт.

7

D39153

BELL CRANK - R.H.

1шт.

When stock of D39152 bell crank is exhausted, use D42413 bell crank. When stock of D39153 bell crank is exhausted, use D42414 bell crank. Also, use one each D42419 pin, D42422 pin, 113-449 bolt, 92-8 lock washers, D40607 bushing, D39162 stop, 61-636 bolt, 221-841 plug and two 219-1 grease fittings with D42413 or D42414 bell crank.

1шт.

8

D39010

TRACK SHOE

BUSHING - bell crank

6шт.

9

D39152

X

BELL CRANK - L.H.

1шт.

When stock of D39152 bell crank is exhausted, use D42413 bell crank. When stock of D39153 bell crank is exhausted, use D42414 bell crank. Also, use one each D42419 pin, D42422 pin, 113-449 bolt, 92-8 lock washers, D40607 bushing, D39162 stop, 61-636 bolt, 221-841 plug and two 219-1 grease fittings with D42413 or D42414 bell crank.

1шт.

10

D39101

BUSHING - bell crank

6шт.

11

D39164

STOP BLOCK - clam open, blade back

2шт.

12

D39162

STOP BLOCK - clam open, bell crank

2шт.

13

D39116

PIN - bell, Serial Range: crank-cylinder

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

15

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

16

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

17

D39117

PIN - bell, Serial Range: crank-blade

2шт.

18

221-652

PLUG - pipe, hex. (1/4" NPT)

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

20

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

HHCS - 3/8" - 16 NC x 2-1/4"

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

D39165

PIN - bell, Serial Range: crank-clam

2шт.

23

D39165

PIN -, Serial Range: link-clam

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

25

D39167

RETAINER - pin

2шт.

26

164-99

SCREW - flat head hex. socket (5/16" - 18 NC x 5/8")

2шт.

27

D39115

PIN -, Serial Range: link-blade

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

29

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

30

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

31

D39114

PIN

-, Serial Range: blade-cylinder

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

33

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

34

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

35

D39163

CUTTING EDGE - blade

1шт.

36

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

10шт.

37

92-8

LOCK WASHER,1/2"

10шт.

38

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

10шт.

39

D39183

LINK - blade to clam, R.H. (When stock is exhausted, use D42409 link)

1шт.

39

D42409

LINK - blade to clam, R.H.

1шт.

40

D39101

BUSHING - D39183 link, 1/8" wall

4шт.

40

D42423

BUSHING

- D42409 link, 1/4" wall

4шт.

41

D39161

LINK - blade to clam, L.H. (When stock is exhausted, use D42408 link)

1шт.

41

D42408

LINK - blade to clam, L.H.

1шт.

42

D39101

BUSHING - D39161 link, 1/8" wall

4шт.

42

D42423

BUSHING

- D42408 link, 1/4" wall

4шт.

D39154

CLAM ASSEMBLY - bucket

1шт.

43

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

44

D39156

CUTTING EDGE - front

1шт.

45

D39177

CUTTING EDGE - rear

1шт.

46

D39158

WEAR BAR - clam front (R.H.)

1шт.

47

D39157

WEAR BAR - clam front (L.H.)

1шт.

D39170

INDICATOR ASSEMBLY

1шт.

48

D39072

PLATE - indicator

1шт.

49

D39071

POINTER - indicator plate

1шт.

50

D39171

DECAL - indicator, bucket position

1шт.

51

D39064

DECAL - scraper depth

1шт.

D40203

TOOTH

ASSEMBLY

7шт.

53

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

54

D39094

BUCKET TOOTH KEY

FLEX PIN, bucket teeth optional

1шт.

55

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", bucket teeth optional

14шт.

56

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), bucket teeth optional

14шт.
