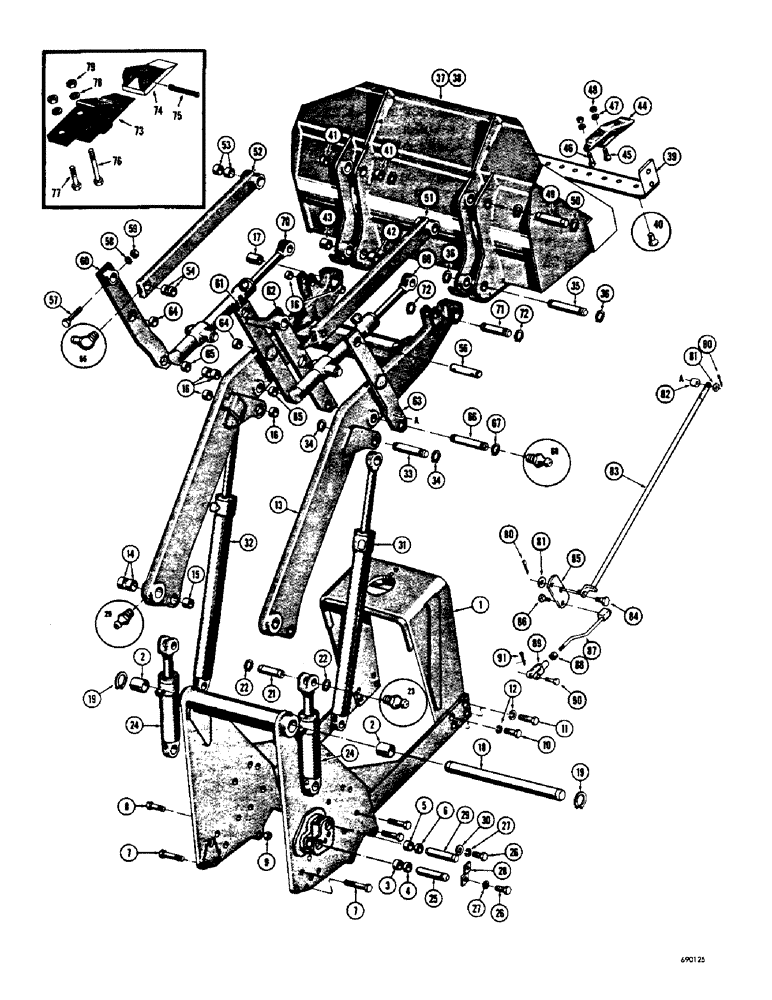

Запчасти Case 310G (144) - LOADER AND ANTI-ROLL BACK (05) - UPPERSTRUCTURE CHASSIS

1

D33059

FRAME - loader (48", 60" and 72" gauges)

1шт.

1

D43677

FRAME - loader (42" gauge only)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

Lift arm pivot

2шт.

3

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

Hydra-leveling cylinder anchor, inner

2шт.

4

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

Hydra-leveling cylinder anchor, outer

2шт.

5

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Lift cylinder anchor, inner

2шт.

6

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Lift cylinder, outer

2шт.

7

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

6шт.

9

25-1012

NUT,3/4"-10, G5

6шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

D33083

ARM ASSY.

Loader, lift

1шт.

14

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Lift arm, rear pivot

4шт.

15

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

Hydra-leveling cylinder pivot

2шт.

16

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Lift cylinder pivot and dump link pivot

12шт.

17

D33094

BUSHING

Bucket pivot

2шт.

18

D33145

SPARE PART SHAFT - lift arm rear pivot

1шт.

19

D26919

SNAP RING,#200, Ext

D33145 pivot shaft

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

21

D33833

AXLE PIN

Mounting, hydra-leveling cylinder to fit arm

2шт.

22

D26918

SNAP RING,#125, Ext

D33833 mounting pin

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

24

REF

INSTRUCTION

CYLINDER - hydra-leveling (See figure 212 for cylinders)

2шт.

25

D33150

HEADED PIN

Mounting, hydra-leveling cylinder to loader frame

2шт.

26

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

27

92-10

LOCK WASHER,5/8"

4шт.

28

D33981

BRACKET

Retaining, D33150 mounting pin

2шт.

29

D33144

SPARE PART Mounting, lift cylinder to loader frame

2шт.

30

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

Retaining, D33144 mounting pin

2шт.

31

REF

INSTRUCTION

CYLINDER - lift, RH (See figure 210 for cylinders)

1шт.

32

REF

INSTRUCTION

CYLINDER - lift, LH (See figure 210 for cylinders)

1шт.

33

D33142

PIVOT PIN

Mounting, lift cylinder to lift arm

2шт.

34

D25279

SNAP RING,M35, Int

D33142 mounting pin

4шт.

35

D33146

AXLE PIN

Mounting, bucket to lift arm

2шт.

36

D25280

SNAP RING,#175, Ext

D33146 mounting pin

4шт.

37

D12351

BUCKET - loader (With teeth) machinery item

1шт.

38

D12349

BUCKET - loader, without teeth (Machinery item) 3/4 cu. yd. (Use D49911 bucket for service - parts list figure 147A)

1шт.

39

D33036

HALF BLADE

CUTTING EDGE

1шт.

40

46-828

RIVET,Csk, 1/2" x 1 3/4"

19шт.

41

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Bucket hinge, upper

4шт.

42

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

Inner bucket hinge, lower

2шт.

43

D33054

BUSHING

Outer bucket hinge, lower

2шт.

44

D33033

TOOTH

Digging

6шт.

45

18-840

BOLT

Plow (1/2"-13 NC x 2-1/2")

6шт.

46

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

47

92-8

LOCK WASHER,1/2"

12шт.

48

25-108

NUT,1/2"-13, G5

Hex

12шт.

49

D32931

PIN

Mounting, bucket to dump arm

2шт.

50

D25279

SNAP RING,M35, Int

D32931 mounting pin

4шт.

51

D33124

DRAG LINK

ARM - dump, RH

1шт.

52

D33125

SPARE PART ARM - dump, LH

1шт.

53

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Dump arm, bucket end

2шт.

54

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

Dump arm, dump link end

2шт.

55

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

56

D33148

AXLE PIN

Mounting, dump arm to dump link

2шт.

57

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

25-108

NUT,1/2"-13, G5

Hex

4шт.

60

D33137

LINK - dump, outer (LH)

1шт.

61

D33135

LINK - dump, inner LH

1шт.

62

D33130

LINK - dump, inner RH

1шт.

63

D43925

LINK - dump, outer (RH) Anti-rollback models

1шт.

63

D33137

LINK - dump, outer (RH) Models without anti-rollback

1шт.

64

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

Dump link, center (Use on all dump links)

1шт.

65

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Dump link, lower (Use on all dump links)

1шт.

66

D34656

PIN,38.1mm OD x 101.6mm L

Mounting, dump link to lift arm

2шт.

67

D25279

SNAP RING,M35, Int

Mounting pin

4шт.

68

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

69

REF

INSTRUCTION

CYLINDER - dump, RH (See figure 214 for cylinders)

1шт.

70

REF

INSTRUCTION

CYLINDER - dump, LH (See figure 214 for cylinders)

1шт.

71

D33140

AXLE PIN

Mounting, dump cylinder to lift arm

2шт.

72

D25279

SNAP RING,M35, Int

D33140 mounting pin

4шт.

D40449

TOOTH

SPARE PART ASSEMBLY - optional

6шт.

73

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

74

D39093

TOOTH

POINT

1шт.

75

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

76

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

81

195-33

WASHER,1/2"

2шт.

82

D43923

SPACER

Rollback link to RH dump link

1шт.

83

D43928

SPARE PART Anti-rollback

1шт.

84

A14265

STUD

BOLT - special

1шт.

85

D43782

LINK

Pivot

1шт.

86

D43780

BOLT (SPREADER)

Special

1шт.

87

D43982

ROD - adjusting, anti-rollback

1шт.

88

25-116

NUT,Hex, 3/8"-24, G5

1шт.

89

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

90

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

91

132-25

COTTER PIN,3/32" x 5/8"

1шт.
